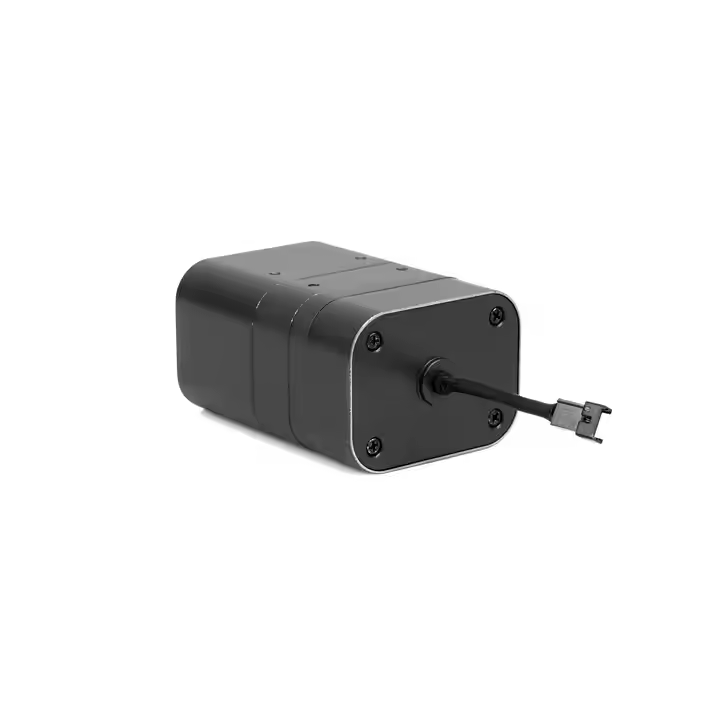

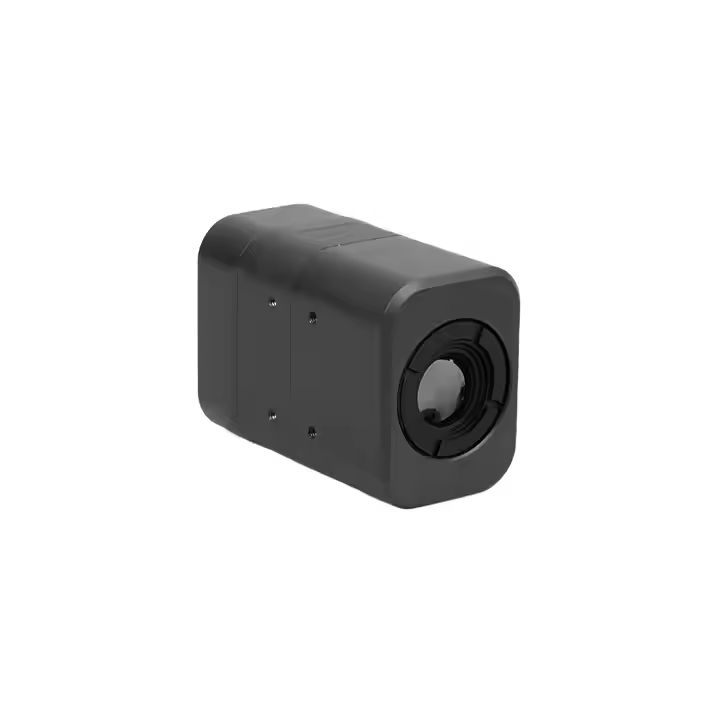

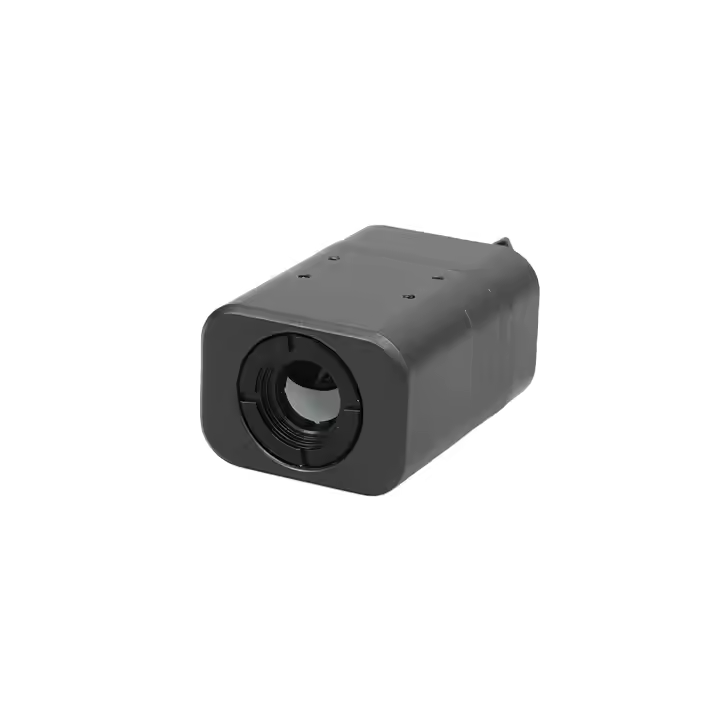

UFC-384/640-CVBS

UFC-384/640-CVBS

384x288 640x512 UFC Thermal Camera Module with CVBS Output Digital Zoom and Temperature Measurement for UAV Gimbal Camera

Get A Quote
  • Online customer service
  • Factory guarantee
  • Ontime delivery
Thermal Imaging
Resolution
384×288 (640×512)
Operating Waveband
8 - 14μm
Detector Type
VOx
Pixel Pitch
12μm
NETD
≤40mK
Lens
9.1mm lens (standard)
Detector Frame Rate
≤60Hz
Temperature Measurement Function (Optional)
Temperature Measurement Range
-20℃ - 150℃, 140℃ - 600℃
Temperature Measurement Accuracy
±2℃ or ±2% of reading
Image Adjustment
Brightness, Contrast Adjustment
Manual / Automatic
Polarization
Self - calibration, Blackbody Calibration
Pseudo - color
Iron Red, Reverse Iron Red, 彩虹,Vermilion
Electronic Zoom
X1, X2, X4, X8
Image Processing
Non - uniformity Correction, Digital Noise Reduction
Image Mirroring
Flip Left/Right, Flip Up/Down
Power Supply
Power Protection
Over - voltage protection, Over - current protection, Reverse input protection, Power supply undervoltage protection
Power Supply Range
DC 5 - 12V
Typical Power Consumption
≤1W
Video Output Interface
CVBS
General
Operating Temperature
-20℃ - +60℃
Storage Temperature
-45℃ - +85℃
Humidity
5 - 95%, No condensation
Vibration
6.06g, Random vibration, All axes
Impact
40g, 6ms, Half - sine wave, 3 axes 6 directions
Dimensions
26×34×53.5mm
Weight
≤60g
