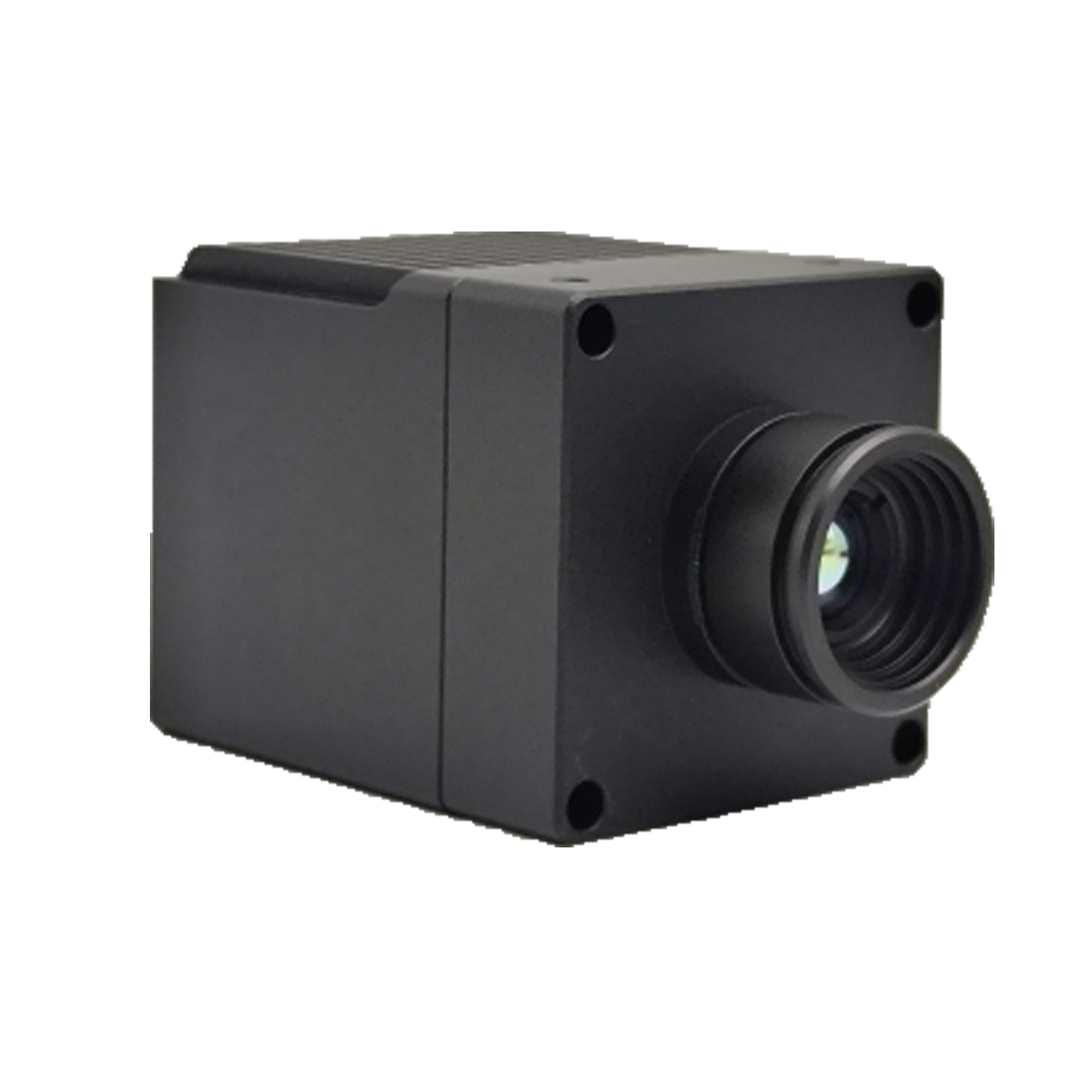

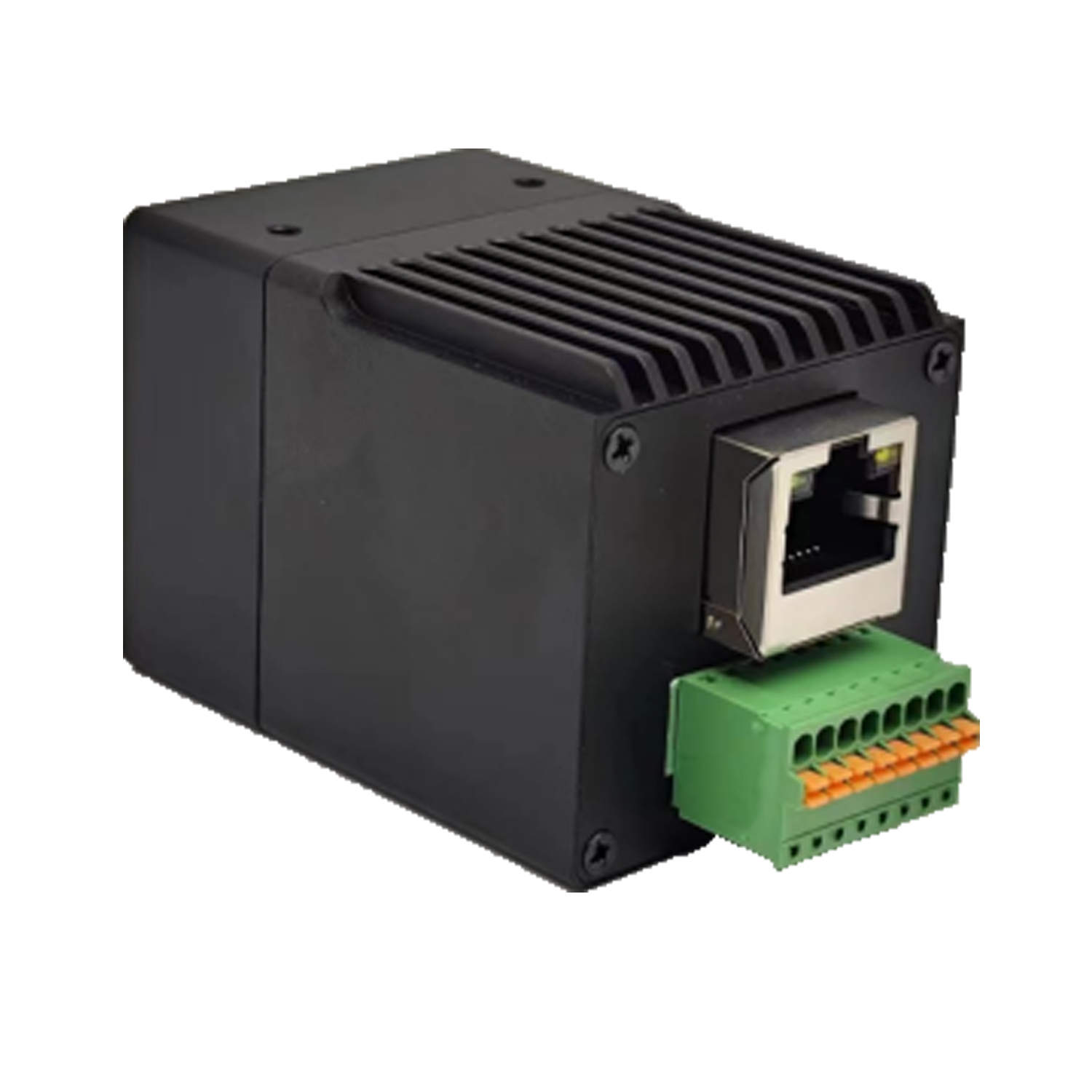

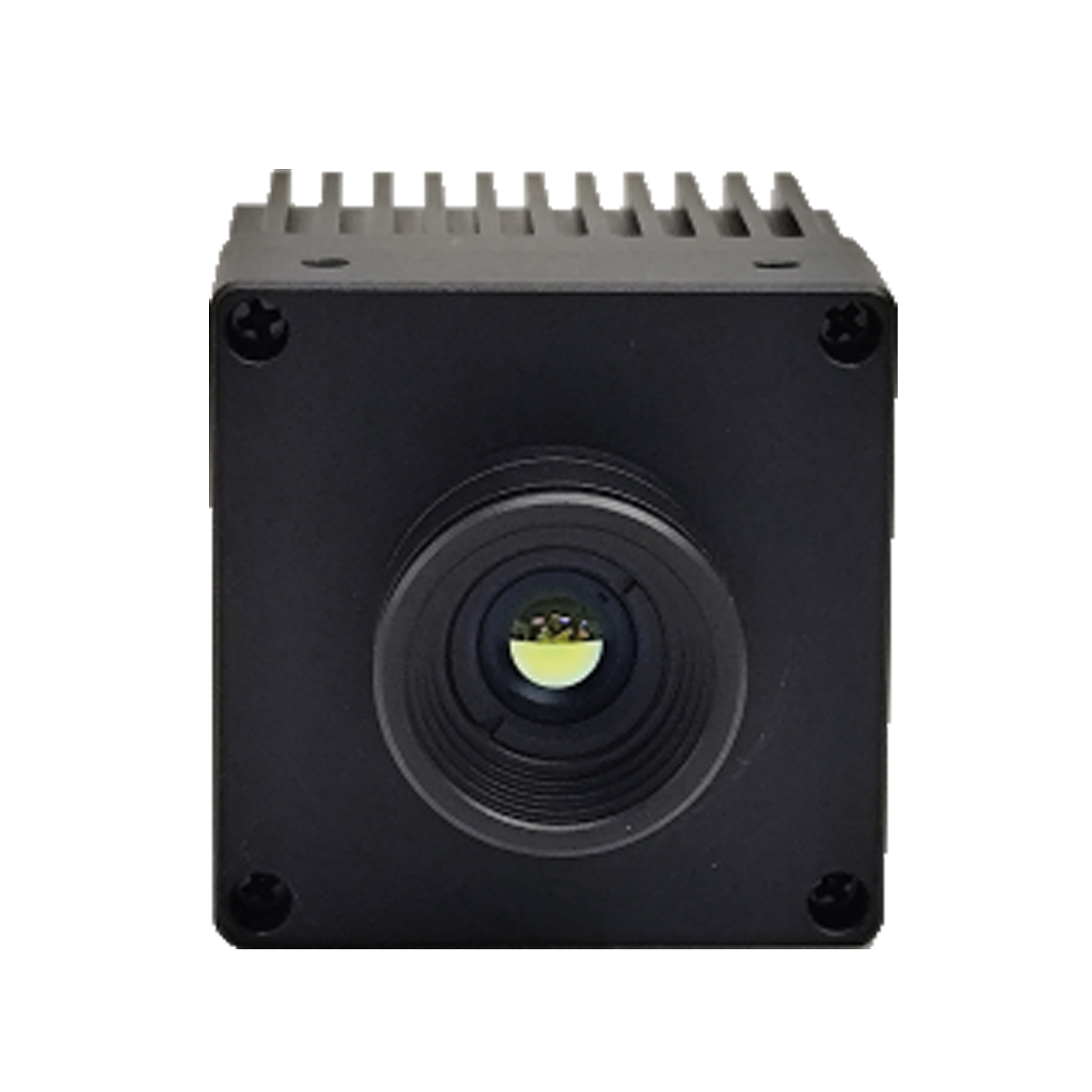

Gige256/384/640

Gige256/384/640

Get A Quote

Online customer service
Factory guarantee
Ontime delivery

product model		Gige256/384/640
prober
type		Vanadium oxide non-cooling focal plane detector
image resolution ratio		256 × 192,384× 288,640× 512
Pixel size		12μm
NETD		≦40mK@25℃
Response band		8~14μm
Lens type
Lenses (optional)		4mm,4.5mm，9mm,15mm,19mm,25 mm,35 mm，50mm, 100mm
network
Ethernet type	100Mbps
networking protocol	IPV4, HTTP, FTP, RTSP, RTCP, RTP, TCP, UDP
Access standards	ONVIF，RTSP，28181
image processing
digital video			H264/H.265
image processing			Non-uniformity correction, intelligent gain control, digital detail mixing enhancement, 3D noise reduction
palette			Support black heat, white heat, iron red, rainbow and other 10 palettes / customizable
Alarm input/output		1 in / 1 out
physical characteristics
Scope of power supply		DC/12V
Typical power consumption		1.6W

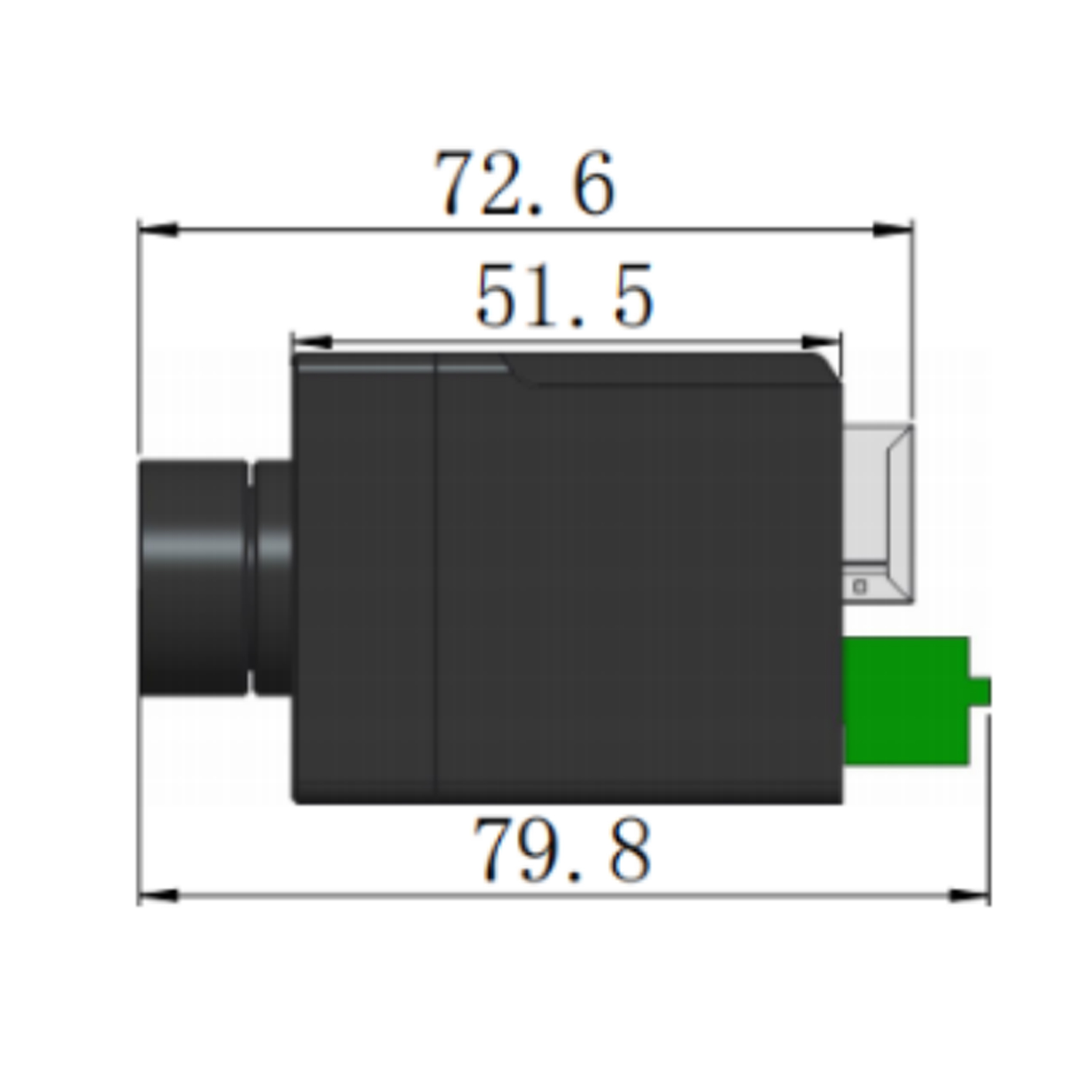

Product size (excluding lens)		42mm42mm51.5mm
Weight (excluding accessories)		150g
working temperature /℃		-30℃～+60℃
Storage temperature / ℃		-45℃～+75℃
humidity /RH		≤95%
