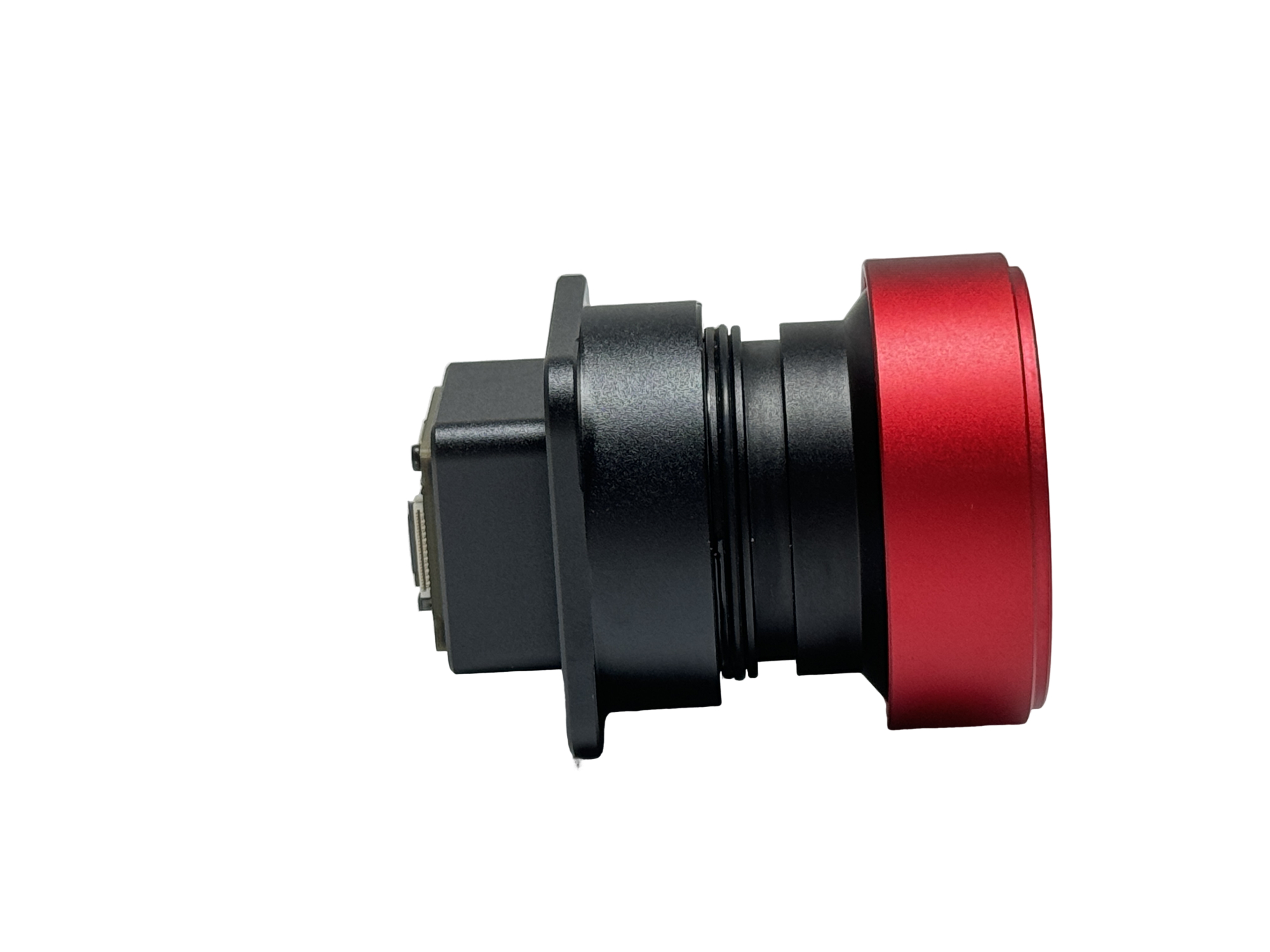

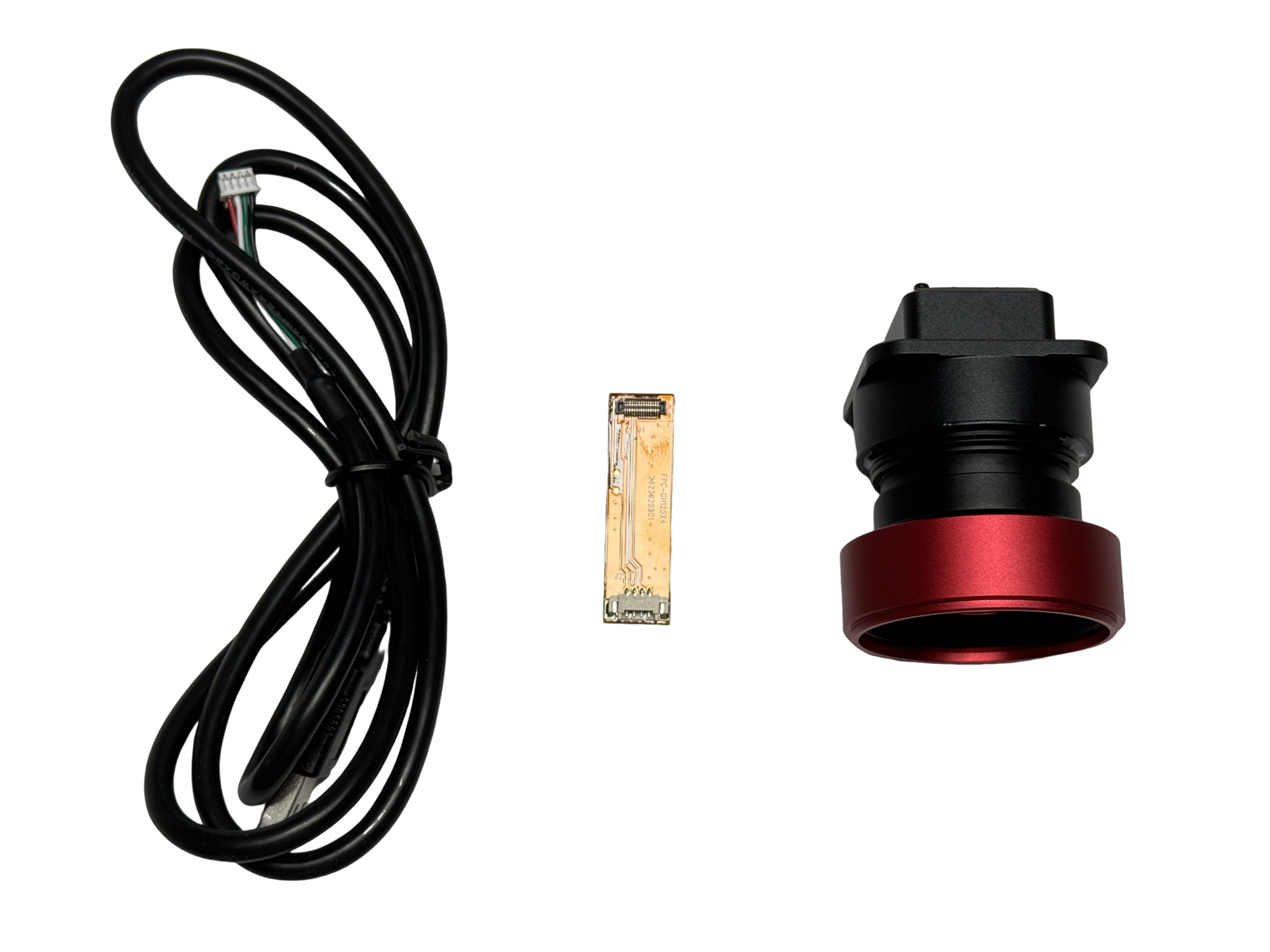

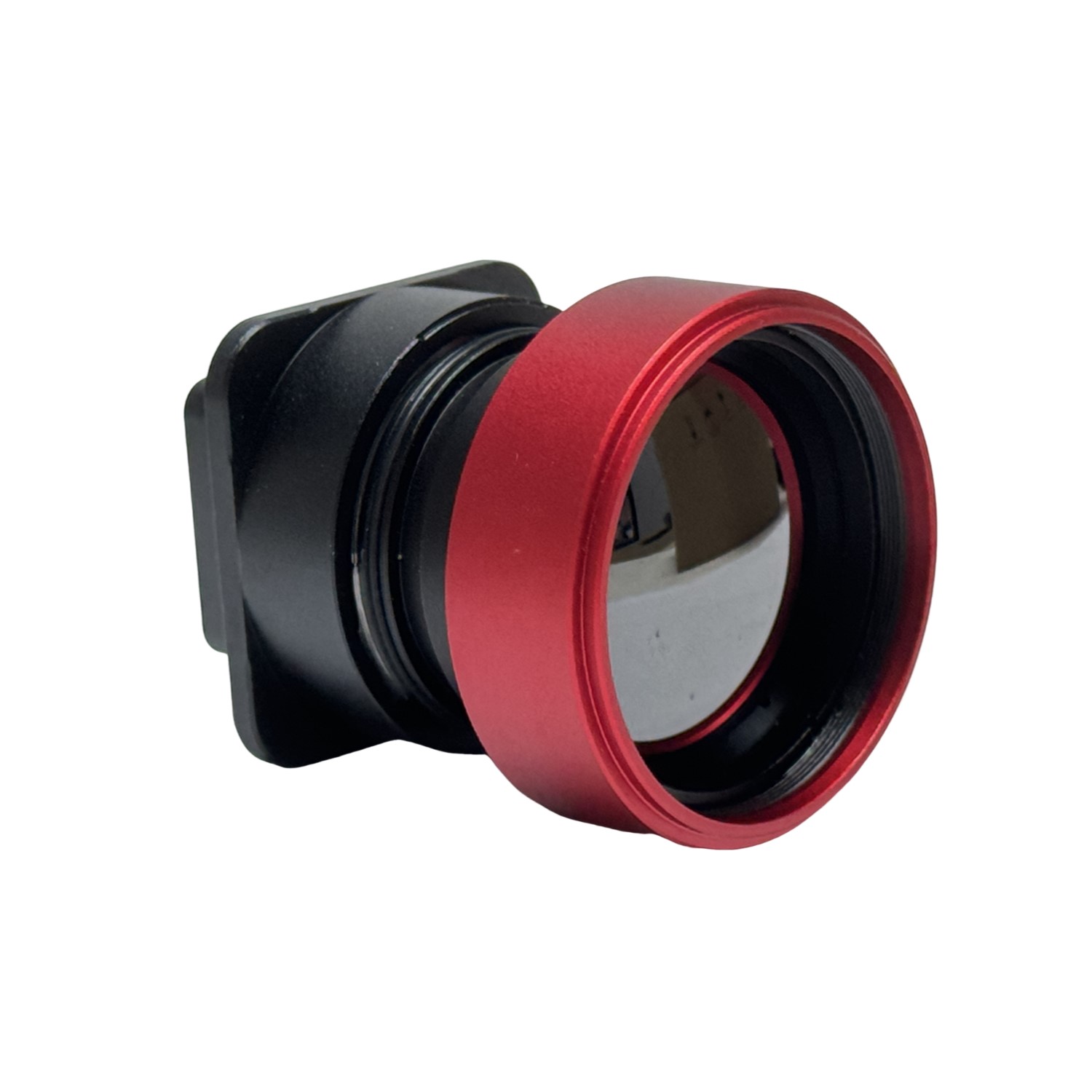

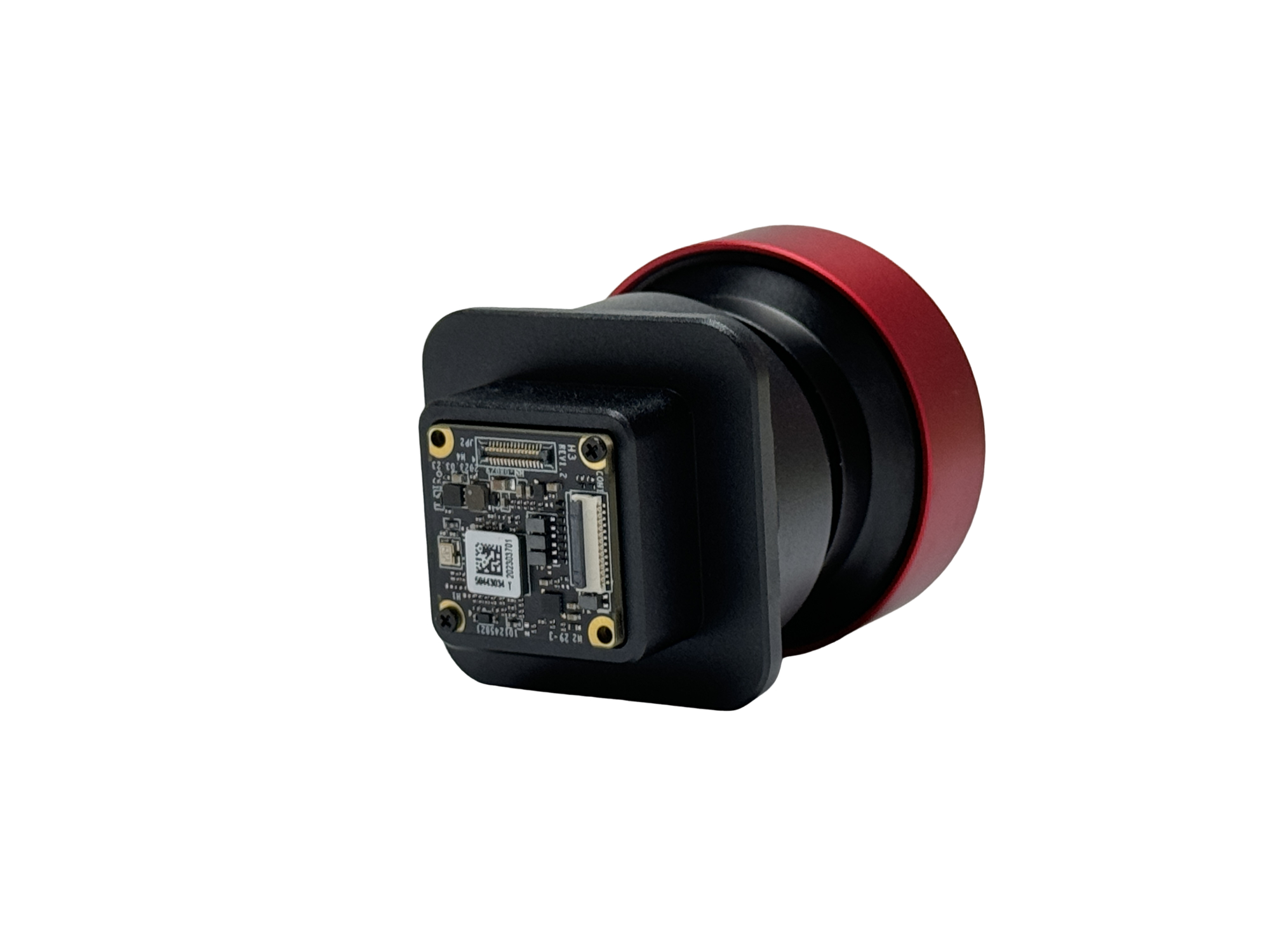

JY-UV640

JY-UV640

Get A Quote

Online customer service
Factory guarantee
Ontime delivery

heat-imaging
Sensor type	Vanadium oxide (VOx) micro radiation calorimeter
Maximum image size	640 × 512
Pixel size	12μm
Response band	8~14 μm
NETD (noise equivalent temperature difference)	≤40mK(@25 °C,F#1.0)
angle of field	48.3°(H) x 38.6°(V)，62.4°(D)
Thermal imaging lens focal length	9.1mm
image display
display resolution	640 × 512
frame rate	30Hz
acoustic image	support
brightness control	support
Fake color mode	Support 15 modes such as white heat, black heat, fusion 1, rainbow, fusion 2, iron red 1 and iron red 2
contrast control	support
system function
joggle	USB2.0 interface
system parameter
Storage temperature	-45 °C ~ + 75 °C
Storage humidity	＜90% RH
working temperature	-40 °C~60 °C
Working humidity	＜90% RH
weight	≤23g
size	20mm x 20mm x 20mm (excluding lens)
power	≤0.7W
power input	DC 5V±5%
Temperature measurement function
Temperature measurement rules	Normal mode: full screen temperature measurement Expert mode: 10 points, 10 boxes, 1 line, a total of 21 temperature measurement rules
presentation of information	Support full screen temperature data output
Temperature range	-20 °C~+150°C and 100 °C~550 °C
Temperature measurement distance	2-18m is optional
temperature measurement accuracy	± 2 °C or ±2% of the reading (take the maximum value)
