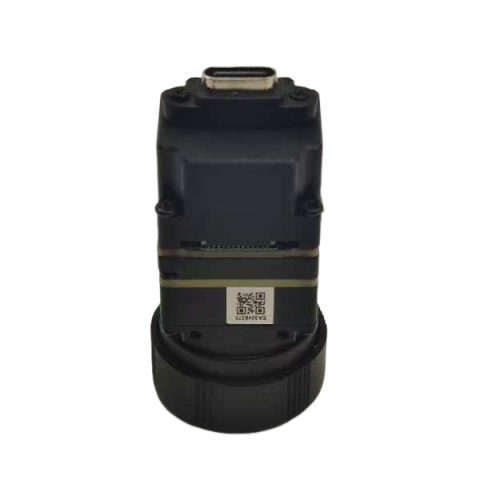

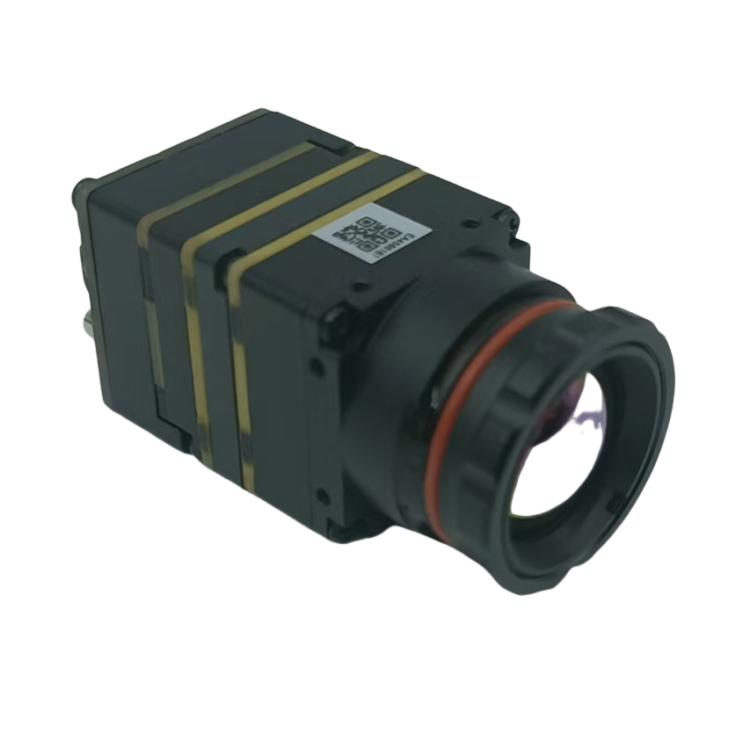

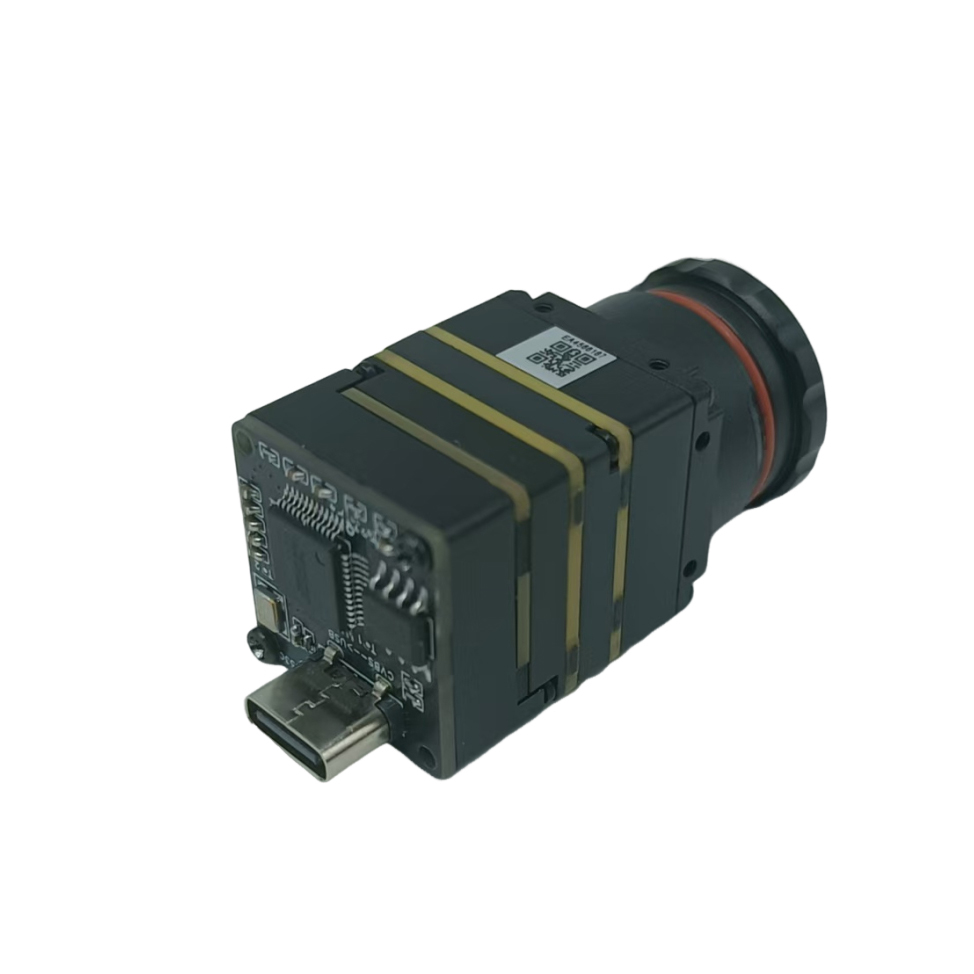

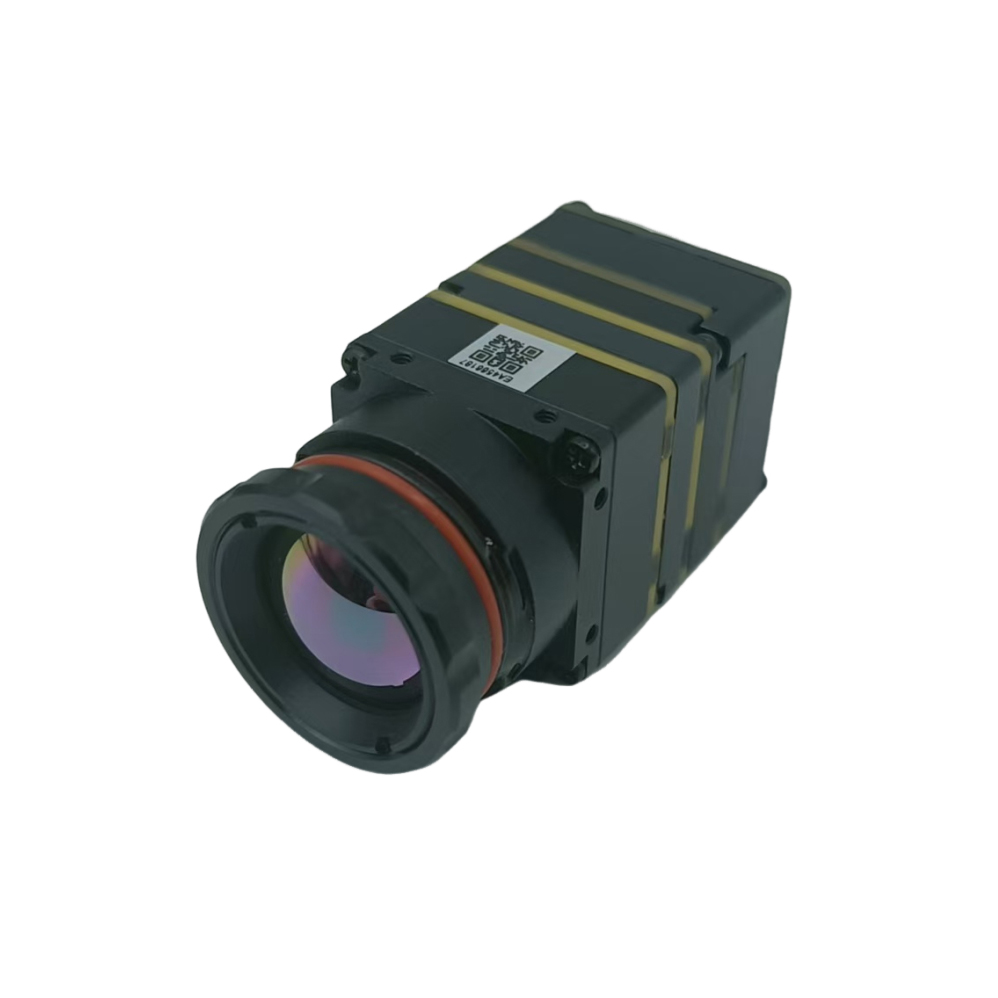

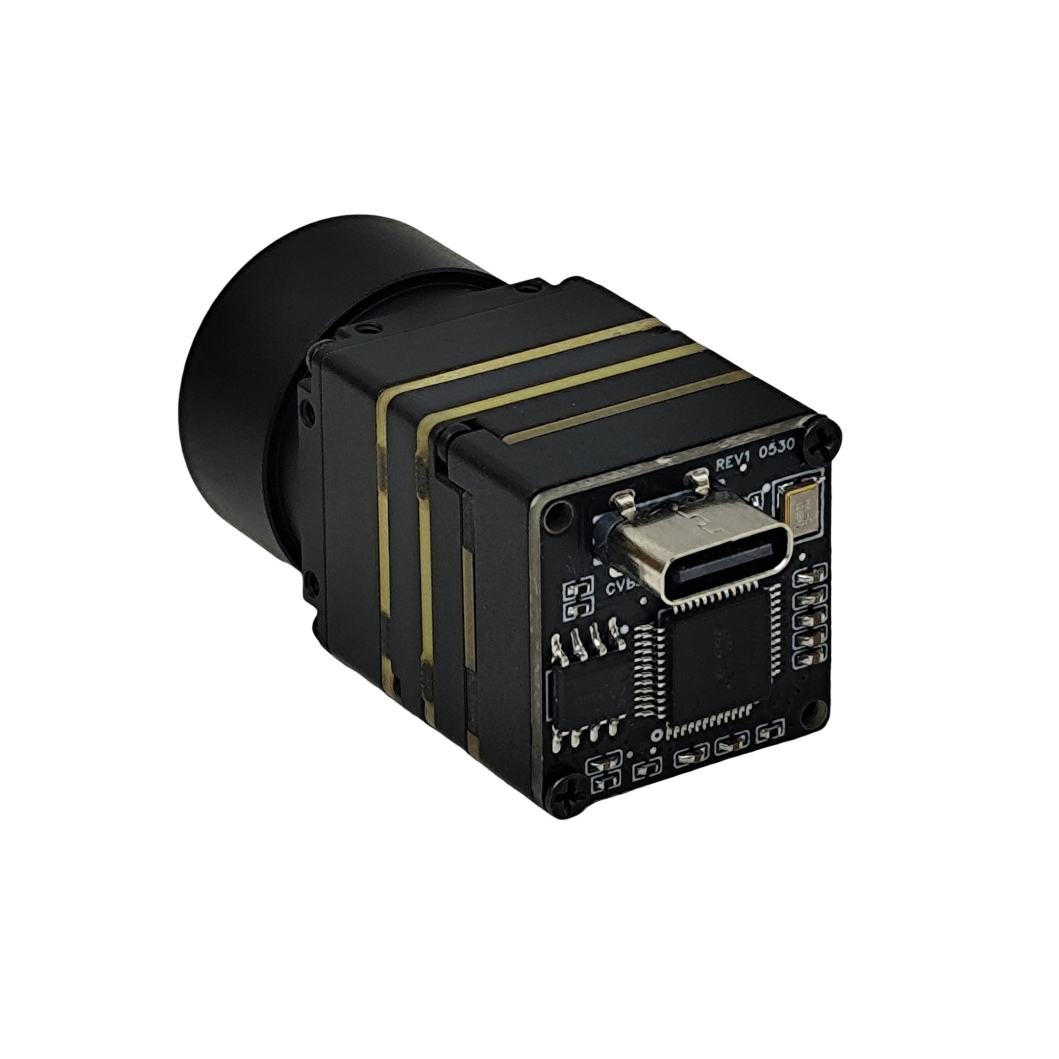

MINI640/MINI384-9UVC

9UVC

384x288/ 640x512 Vanadium Oxide (VOx) Microcalorimeter Mini Size Thermal Camera Module with USB Output

Get A Quote

Online customer service
Factory guarantee
Ontime delivery

Thermal Imaging
Sensor type	Vanadium oxide (VOx) microcalorimeter
Resolution	640 × 512
Pixel Pitch	12μm
Response band	8~14 μm
NETD	≤35mK(@25 °C,F#1.0)
Lens Parameters	9.1mm
FOV（H*V）	48.3°(H) ×38.6°(V)，62.4°(D)
Minimum focusing distance	2m
Max Aperture Value	F1.0
Mage display
Output resolution	640 × 512
Electronic amplification	support
Bad point correction	support
image	Off, Vertical, Horizontal, Center
Image detail enhancement	support
AGC mode	histogram
Brightness adjustment	support
Pseudo color mode	Supports 15 modes including White Heat, Black Heat, Fusion 1, Rainbow, Fusion 2, Iron Red 1, Iron Red 2, etc
Contrast adjustment	support
system function
interface	USB2.0
system parameter
Storage temperature	-45 °C ~ + 75 °C
Storage humidity	＜90% RH
Vibration shock	Vibration: sinusoidal vibration, 10m/s ²， 3-axis Shock: Half sine wave, 15g/11ms, 3-axis 6-way
working temperature	-40 °C~80 °C
weight	≤23 g
size	38.6mm×20mm×20mm(no lens)
power	≤0.8 W
Power input	DC 5 V-17 V
Temperature measurement function
Temperature measurement rules	Normal mode: Full screen temperature measurement Expert mode: 10 points, 10 boxes, 1 line, a total of 21 temperature measurement rules
working temperature	-40 °C~80 °C
