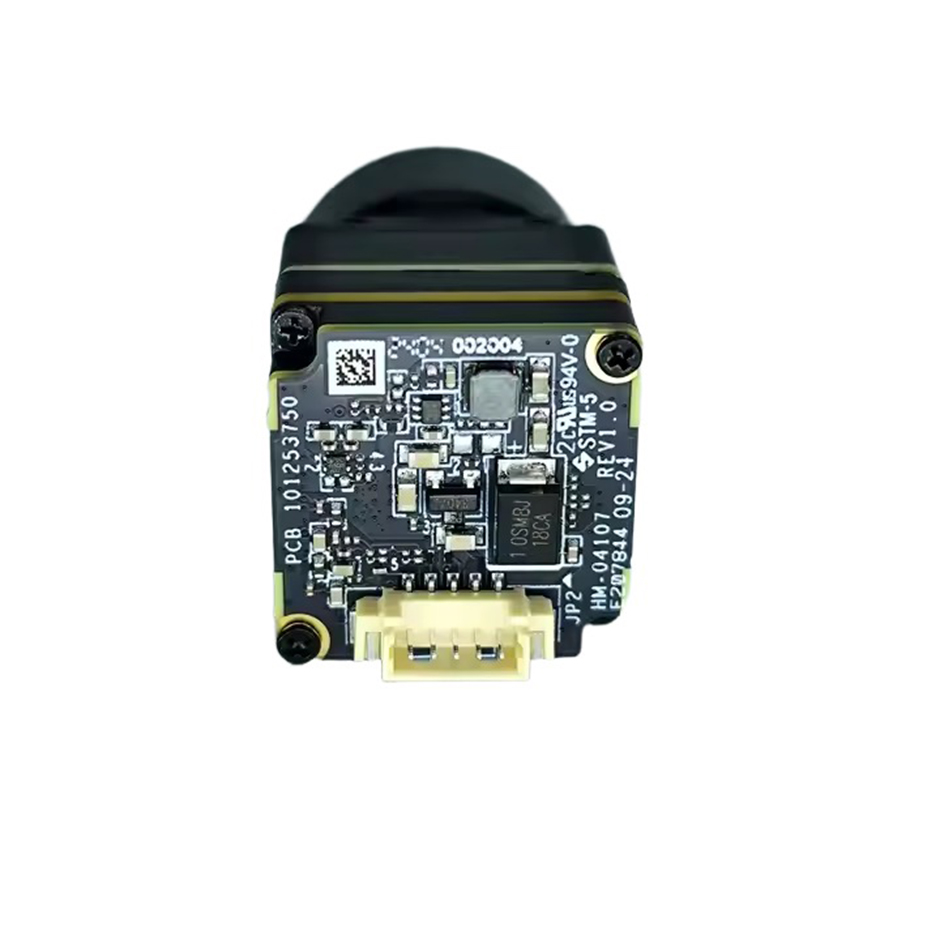

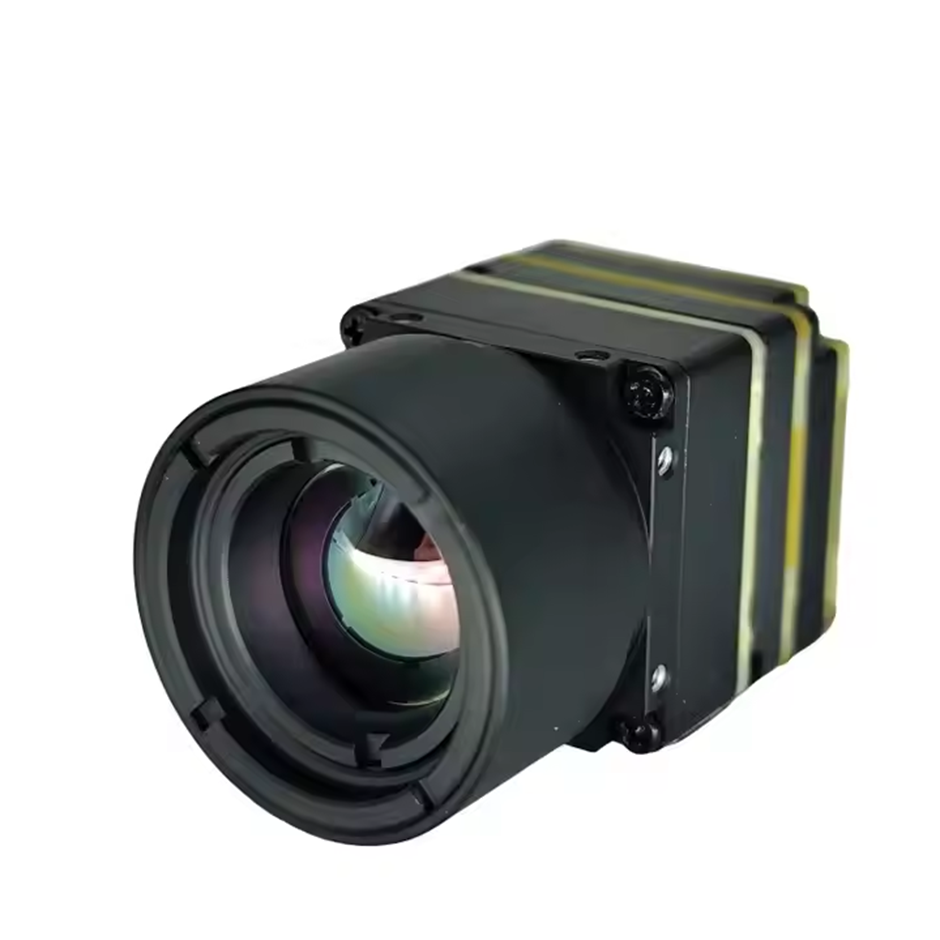

JY-TH-M03

JY-TH-M03

Get A Quote

Online customer service
Factory guarantee
Ontime delivery

Model Number	JY-TH-M03
Resolution	640x512
Detector Type	Vanadium Oxide Uncooled Infrared Focal Plane Detector
Frame rate	Frame rate 50fps
Pixel Pitch	Pixel Pitch 12um
NETD	40mk
Response Band	Response Band 8-14um
Lens Focal Length	9mm
Field of view (H*V)	18.1°(H)x13.6°(V)
Power	Power <=0.8w
Supply Voltage	5V-16V
Colour types (5 types available, factory-settable)	White Hot, Black Hot, Fusion, Iron Red, Fusion
Output Type	CVBS
Analogue output format	PAL
Size (without lens)	20mmx20mm
Weight (without lens)	<=23g
Operating Temperature	-40°C~+80°C
Storage Temperature	-45°C~85°C
