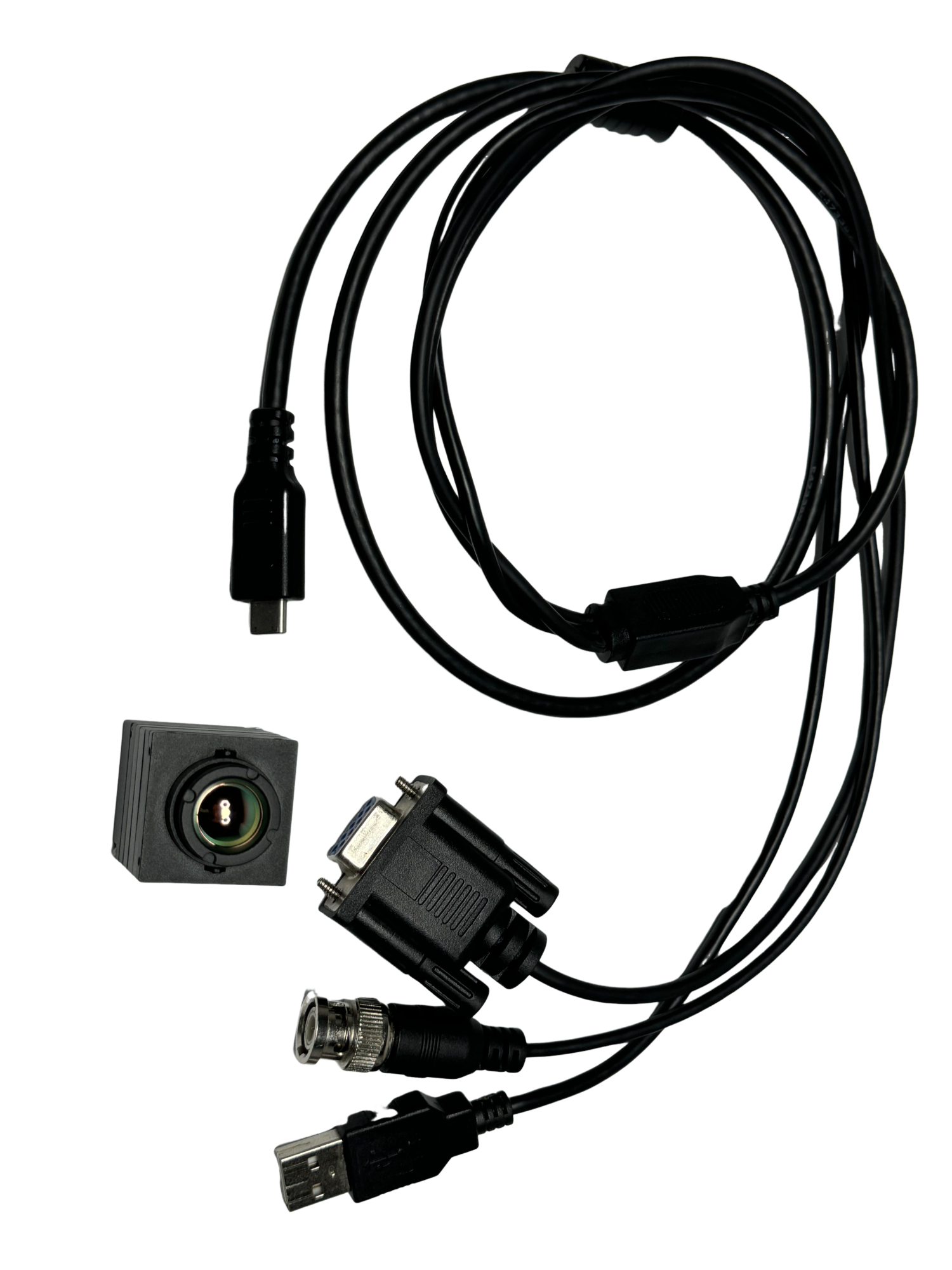

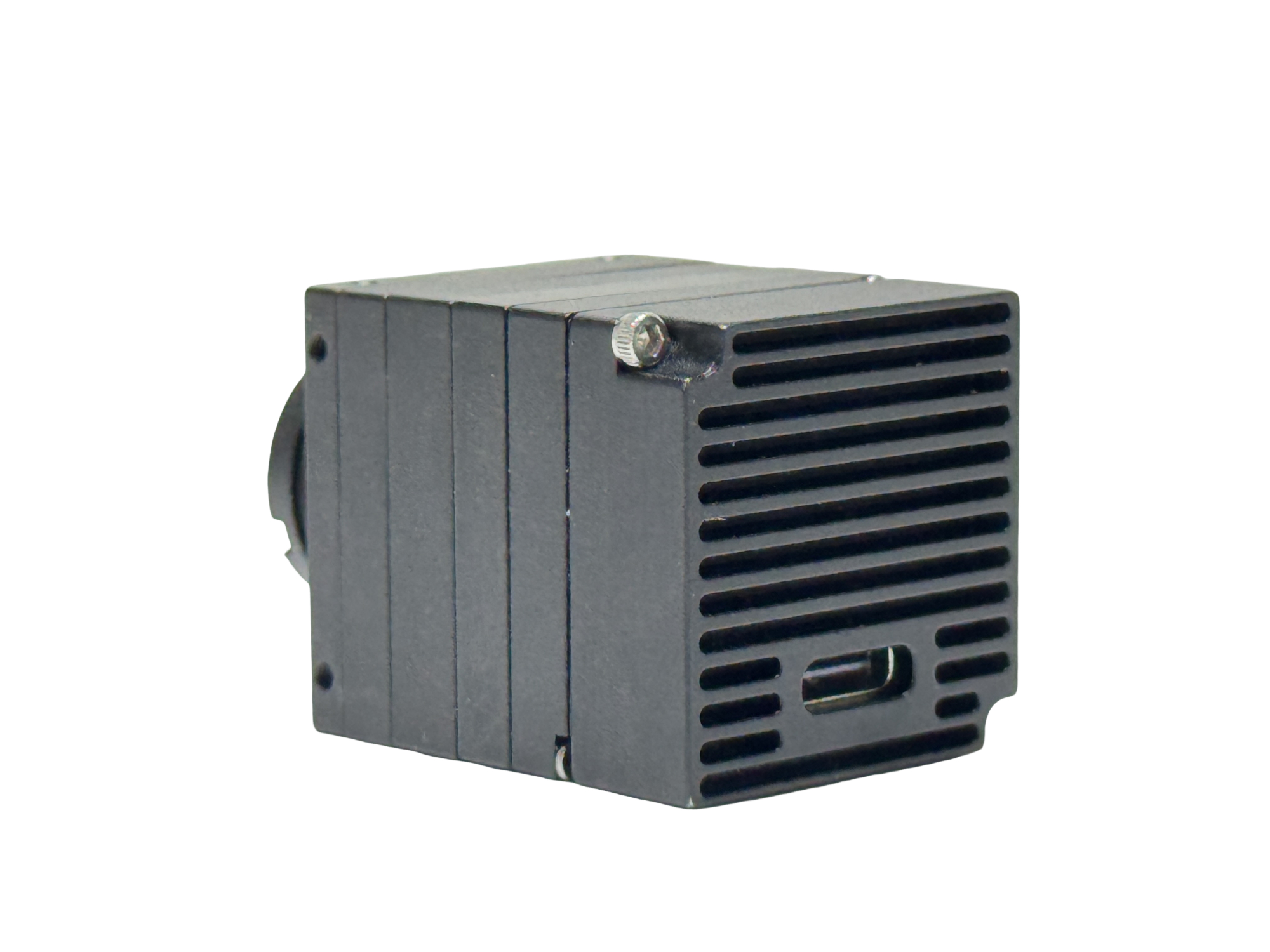

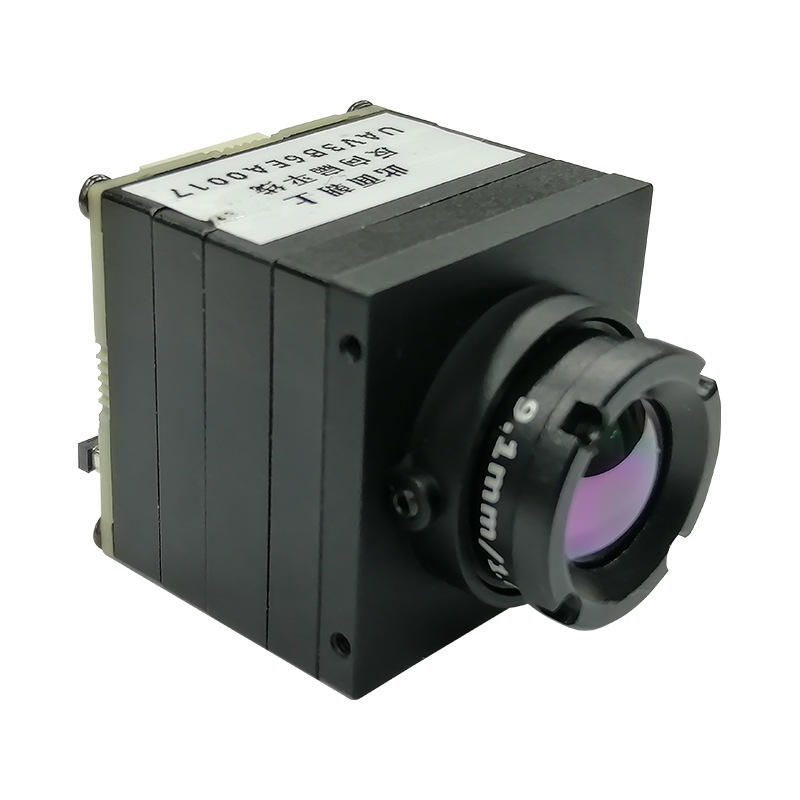

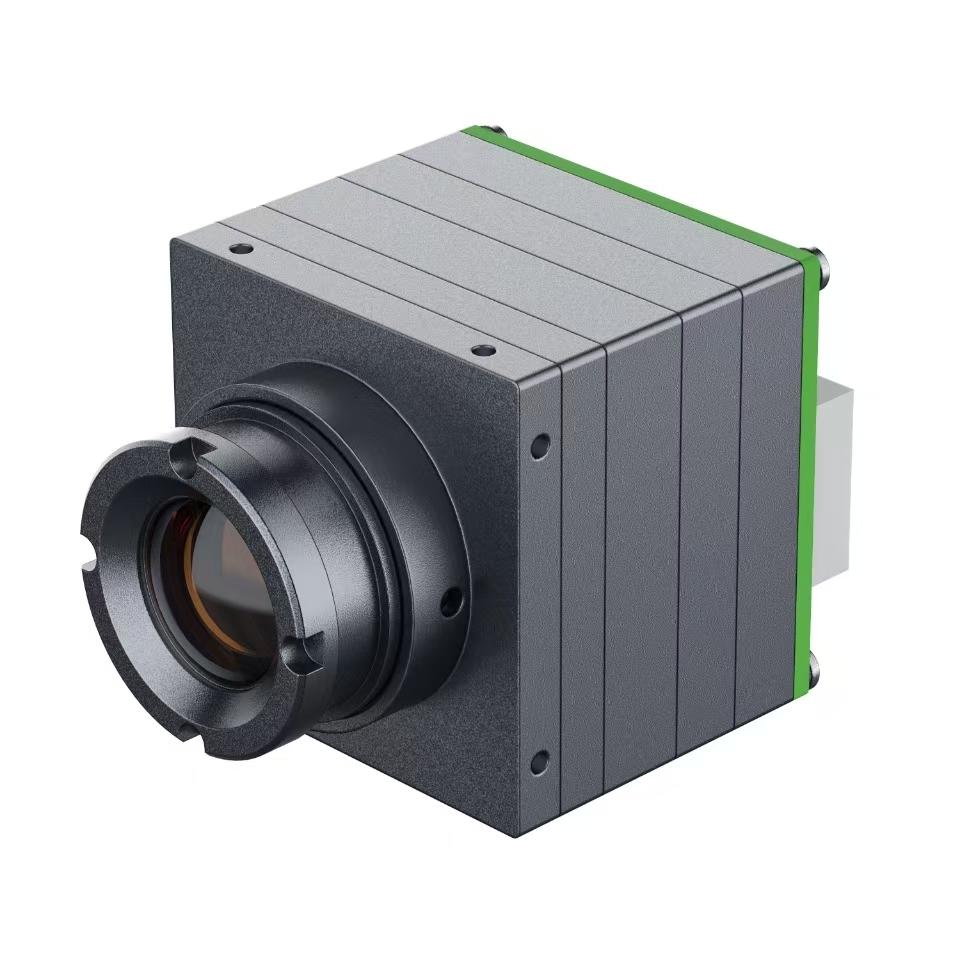

JY-TH640-RJ45-9MM

JY-TH640-RJ45-9MM

Get A Quote

Online customer service
Factory guarantee
Ontime delivery

IR Detector
Resolution	640x512
Spectral range	8 - 14μm
Detector type	VOx
Pixel pitch	12μm
NETD	≤40mK
Lens	9.1mm(Standard) , 6/9/11/13/15/19/25/35/50/75mm(Optional)
Frame rate	≤60Hz
Temperature Measurement
Range	-20°C~150°C, 140°C~600°C
Accuracy	±2°C or 2% of reading
Image adjustment
Bright or Contrast adjustment	Auto or manual
Polarity	White Hot or Black Hot
Color palettes	Iron, Iron invert, Rainbow, Feather
E-zoom	X1, X2, X4
Image processing	NUC, digital filter noise reduction, digital details enhanced
Image mirror	Left and right, Up and down
Power
Protection	Overcurrent protection, overvoltage protection, reverse input protection
Power input	DC 5 - 12V
Power consumption	≤ 1 W
Common
Video output	CVBS, USB (UVC), BT656
Communication port	RS232
Operating Temperature	-20°C~ +60°C
Storage Temperature	-45°C~ +85°C
Humidity	5 - 95%, non - condensing
Vibration	6.06...
