JY-M12-3.3LD-8MP

JY-M12-3.3LD-8MP

Get A Quote
  • Online customer service
  • Factory guarantee
  • Ontime delivery
Resolution
5 Megapixel
Image format
1/2.5"
Focal length
3.3mm
Aperture
F2.0
Mount
M12
Field Angle
D×H×V(°)
"
°
1/2.5
1/2.7
1/2.8
D
94.80
89.90
88.30
H
86.50
81.76
79.80
V
55.68
51.94
50.40
Optical Distortion
-1%
-1%
-1%
M.O.D.
0.5m

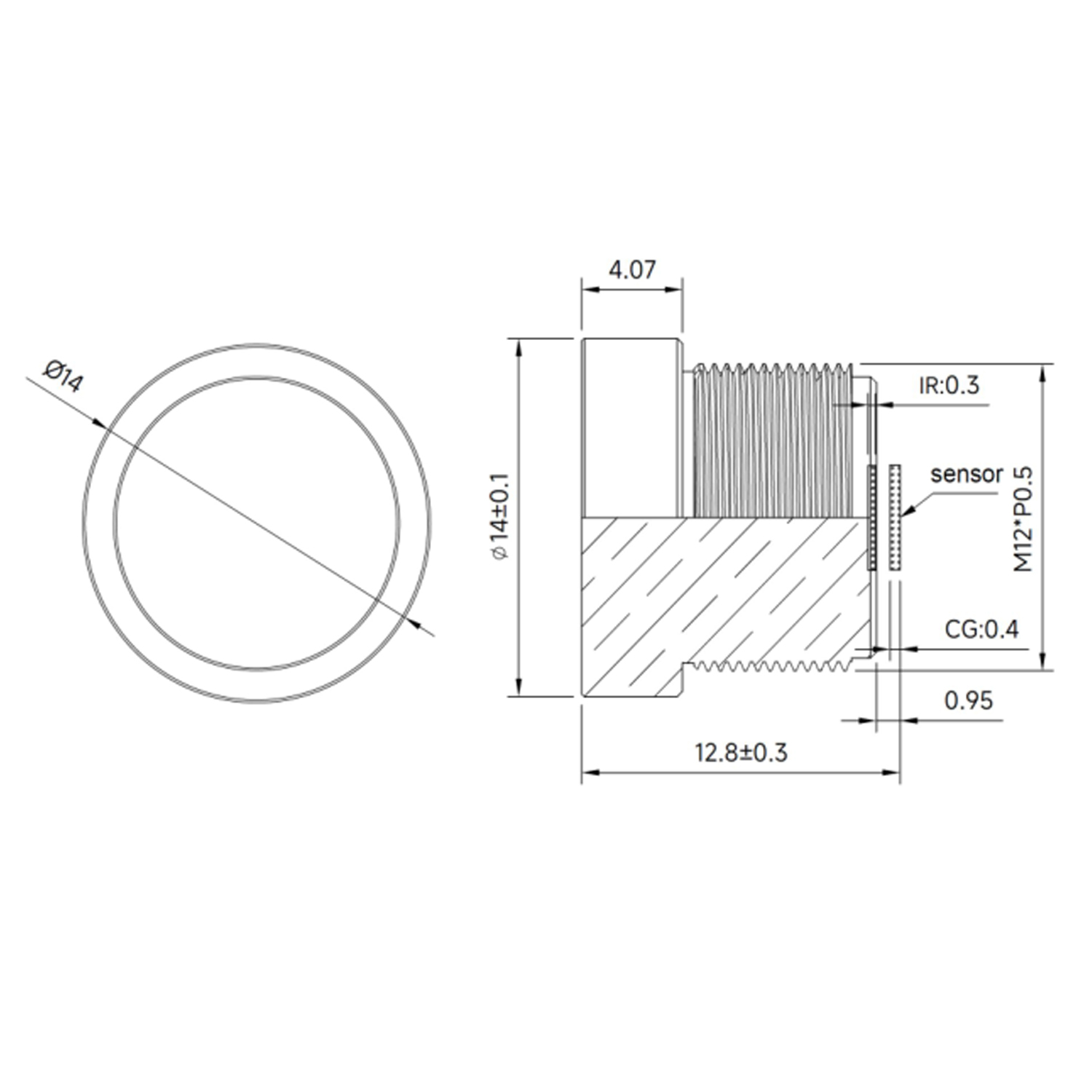

Dimension
Φ14×12.8mm
Weight
5g
Flange BFL
/
BFL
MBF
0.95mm
IR Correction
Yes
Operation
Iris
Fixed
Focus
Manual
Zoom
/
Operating temperature
-20℃~+60℃
