Home > Products > Low distortion lens
View large

JY-M12-1.9LD-8MP-1/2.7

JY-M12-2.0LD-2MP-1/2.7

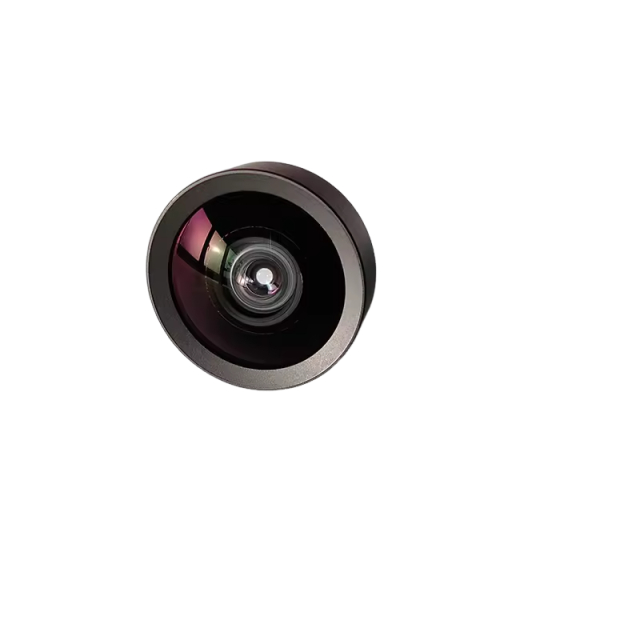

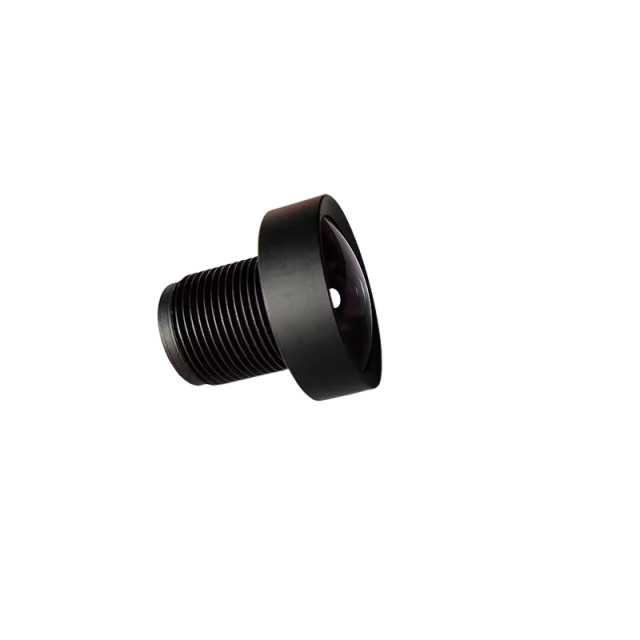

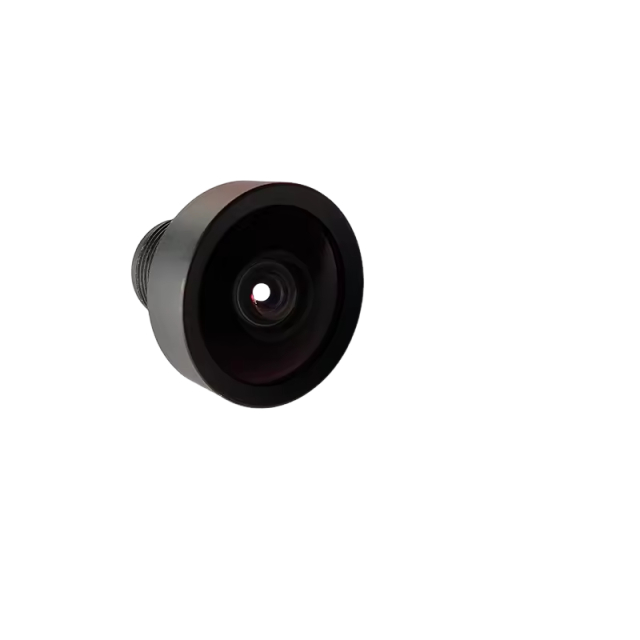

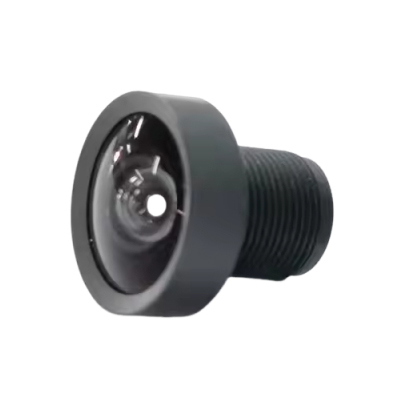

Low Distortion M12 CCTV Lens with HFOV 120 Degree 1.9mm Focal Length for 1/2.7 Inch Sensor GC8613 8 Megapixel (3840*2160)

Get A Quote
  • Online customer service
  • Factory guarantee
  • Ontime delivery
Sensor Size
1/2.7" Φ6.8 (MAX)
EFL (Effective Focal Length)
1.9±5%
F.NO (Aperture)
2.3±10%
MFL (Mechanical Focal Length)
2.76±0.3
TTL (Total Track Length)
15±0.3
TV DISTORTION
<9%
RELATIVE ILL (Relative Illumination)
>40%
Lens structure
2G4P
MOD (Minimum Object Distance)
0.5m
CRA (Chief Ray Angle)
16.5°
Mount
M12*P0.5
FOV
Sensor Model
Diagonal (D) ±5%
Horizontal (H) ±5%
Vertical (V) ±5%
1/2.7"(GC6613) 3840*2160,1.5µm
131°
120°
81°
1/2.8"(IMX415) 3840*2160,1.45µm
128.7°
117°
78.7°
1/2.9"(SC430) 2696*1528,2.0µm
125.6°
115.3°
77.2°
1/3.2"(IMX179) 3280*2464,1.4µm
118.6°
102.6°
83.7°
Torsion force
50-500gf.cm
Operation
Focus
Manual
Iris
Fixed
