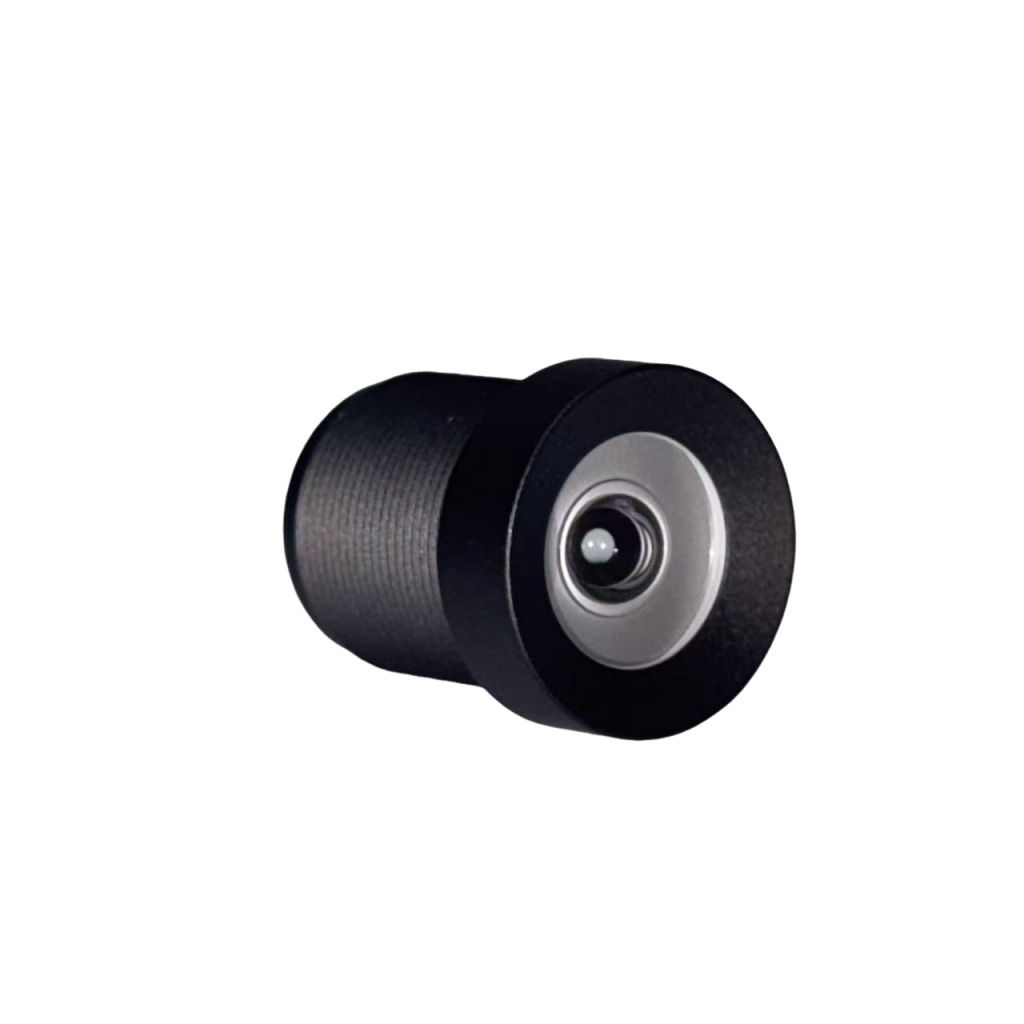

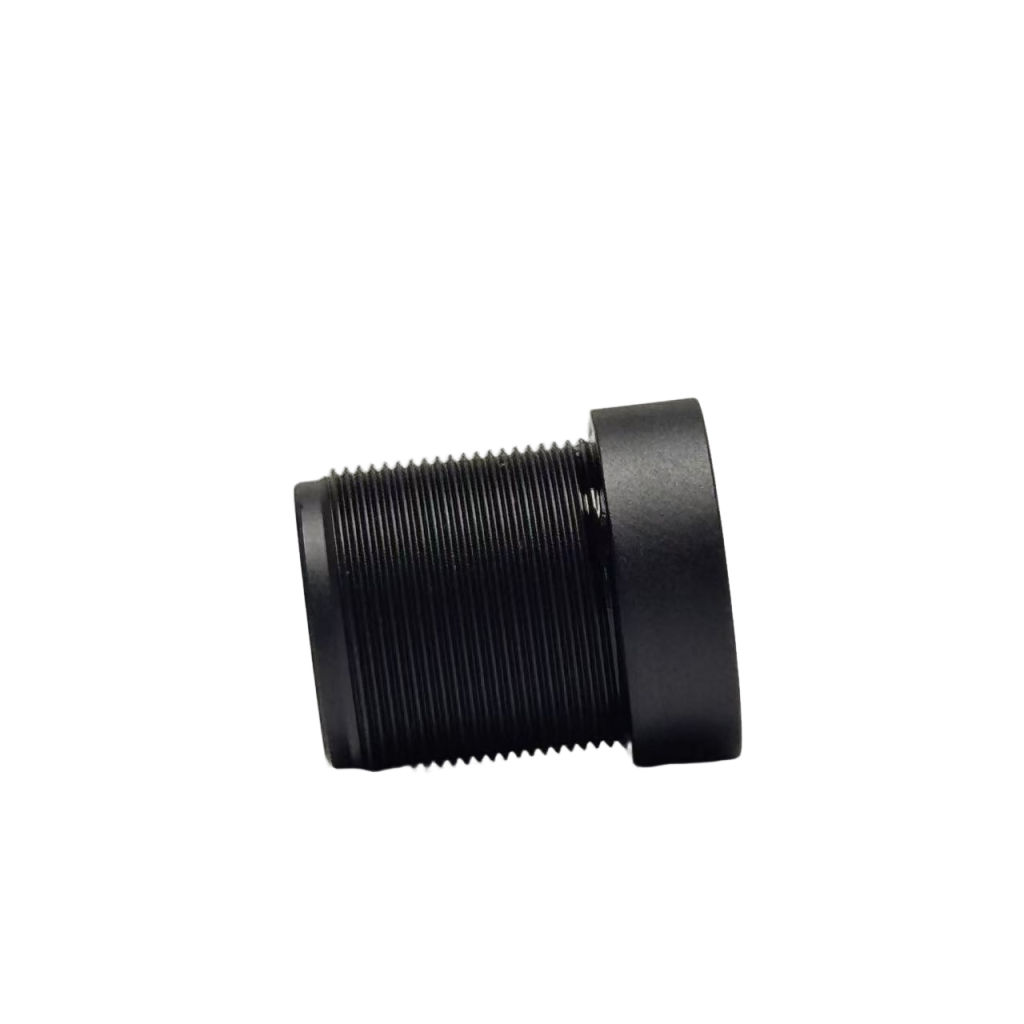

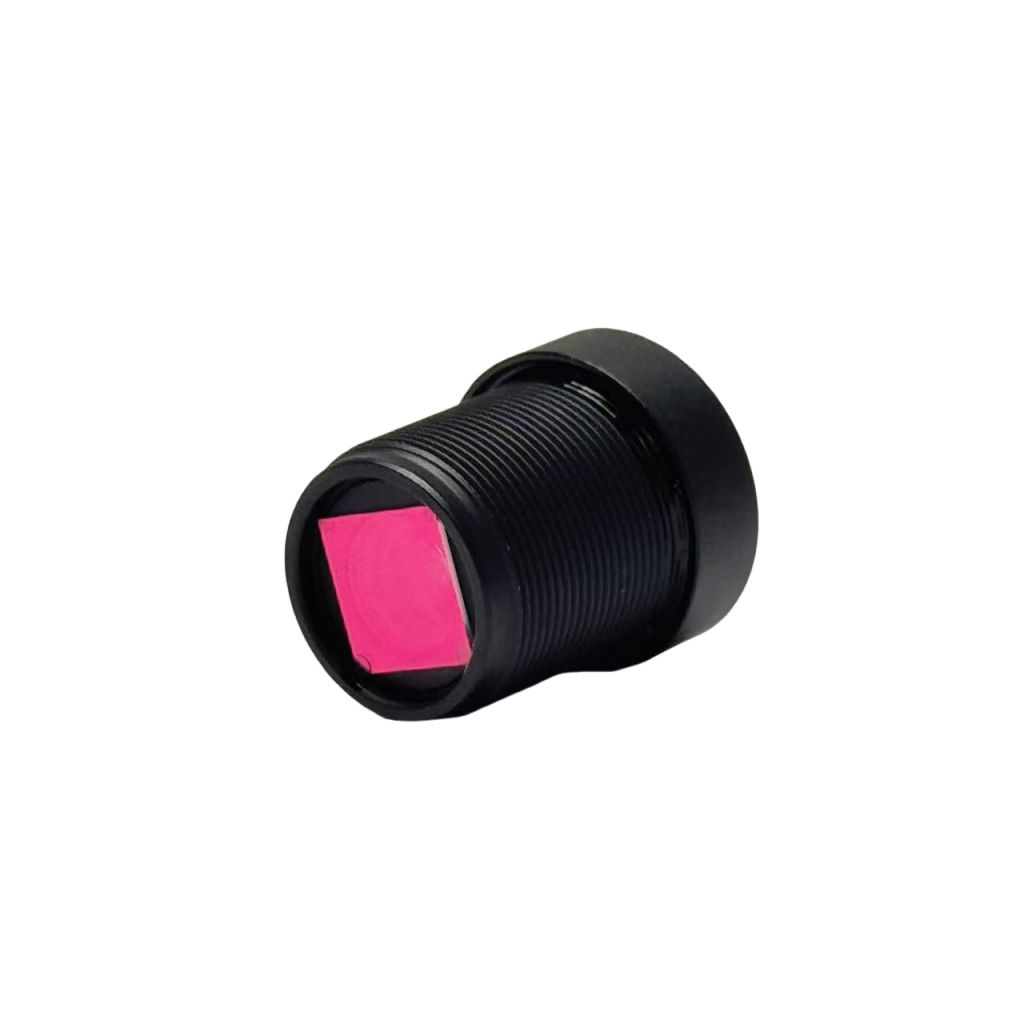

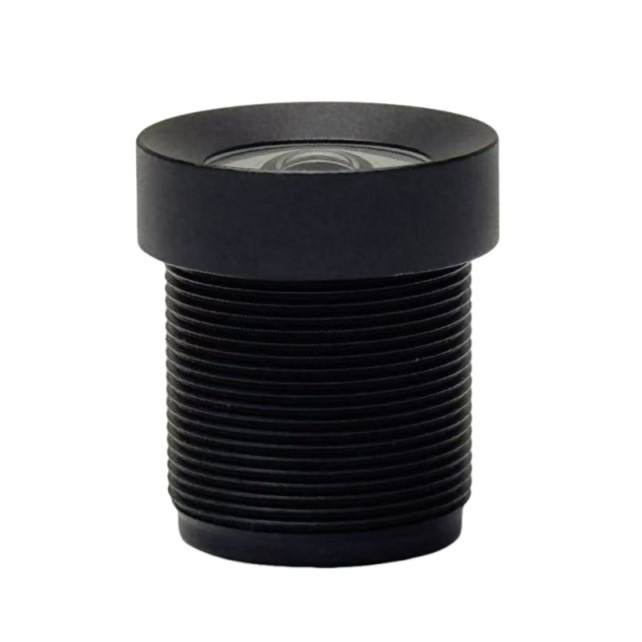

JY-M12-3.05BD-5MP-1/2

JY-M12-3.05BD-5MP-1/2

Get A Quote

Online customer service
Factory guarantee
Ontime delivery

Resolution		5MP
Focal Length		3.05mm
Image Circle		1/2"
Relative Aperture (F No.)		F2.6
Field of View (FOV)		1/2" (IMX385)	1/2.8" (IMX307)
	- V (Vertical)	70°	55°
	- H (Horizontal)	110°	90°
	- D (Diagonal)	122°	100°
Optical Distortion		<<−10%	<−5%
Relative Illumination		>27.30%	>50%
Max Chief Ray Angle (CRA)		<31.2°	<21°
Mount		M12*P0.5
Optical Backfocal Length		3.11mm
Mechanical BackFocal Length		1.86mm
Total Track Length (TTL)		17.00mm
Lens Structure		5E+IR650
Operation	Focus	Fixed
	Iris	Fixed
