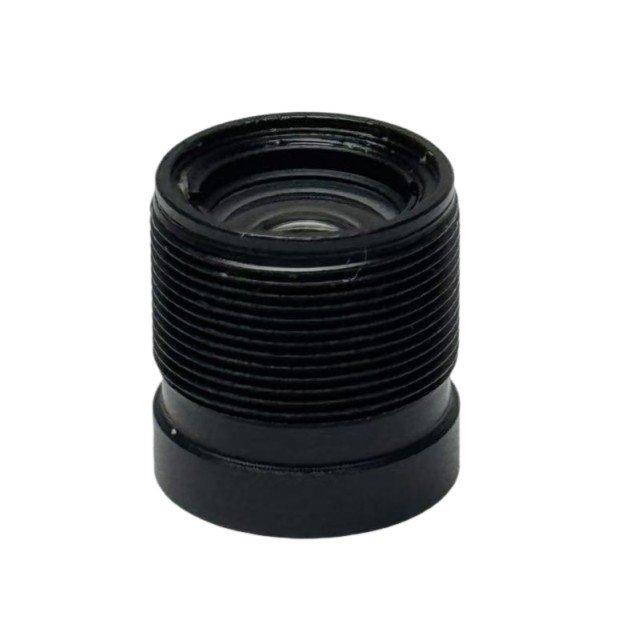

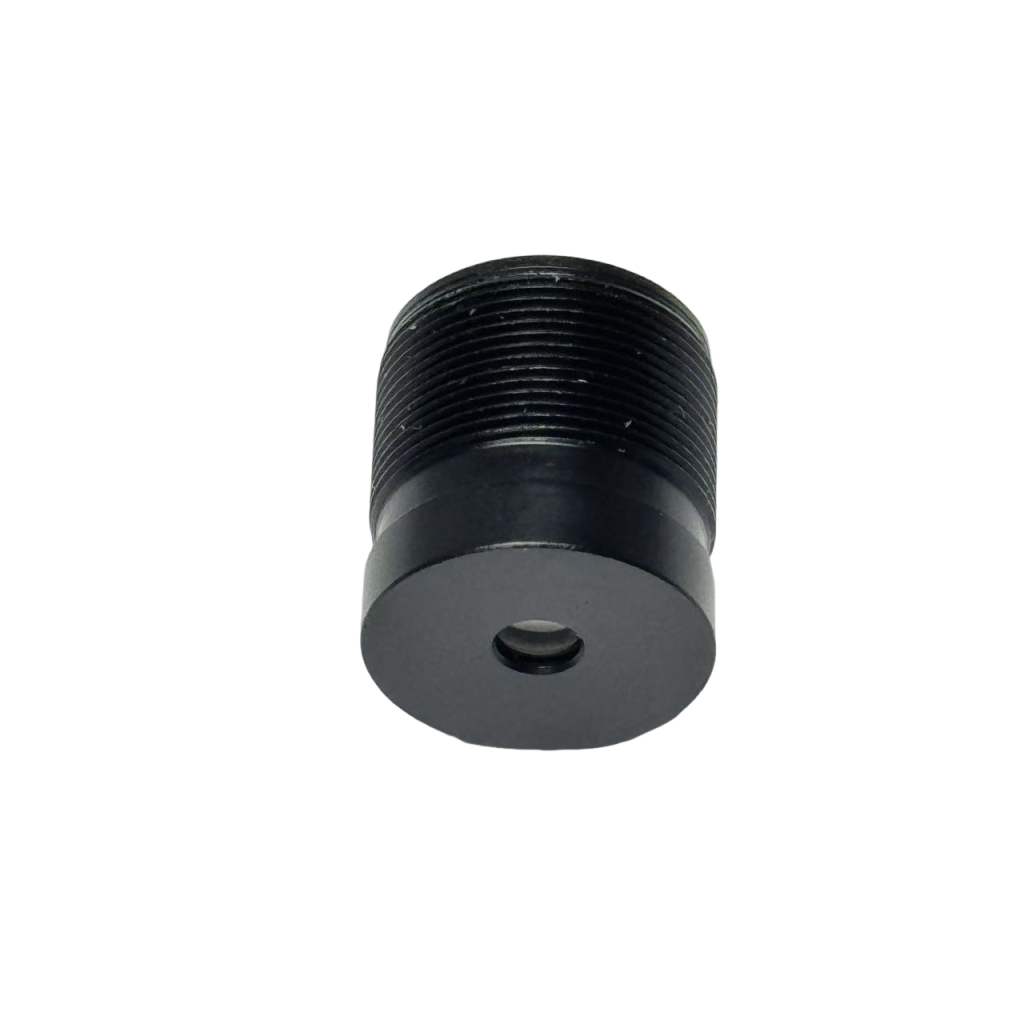

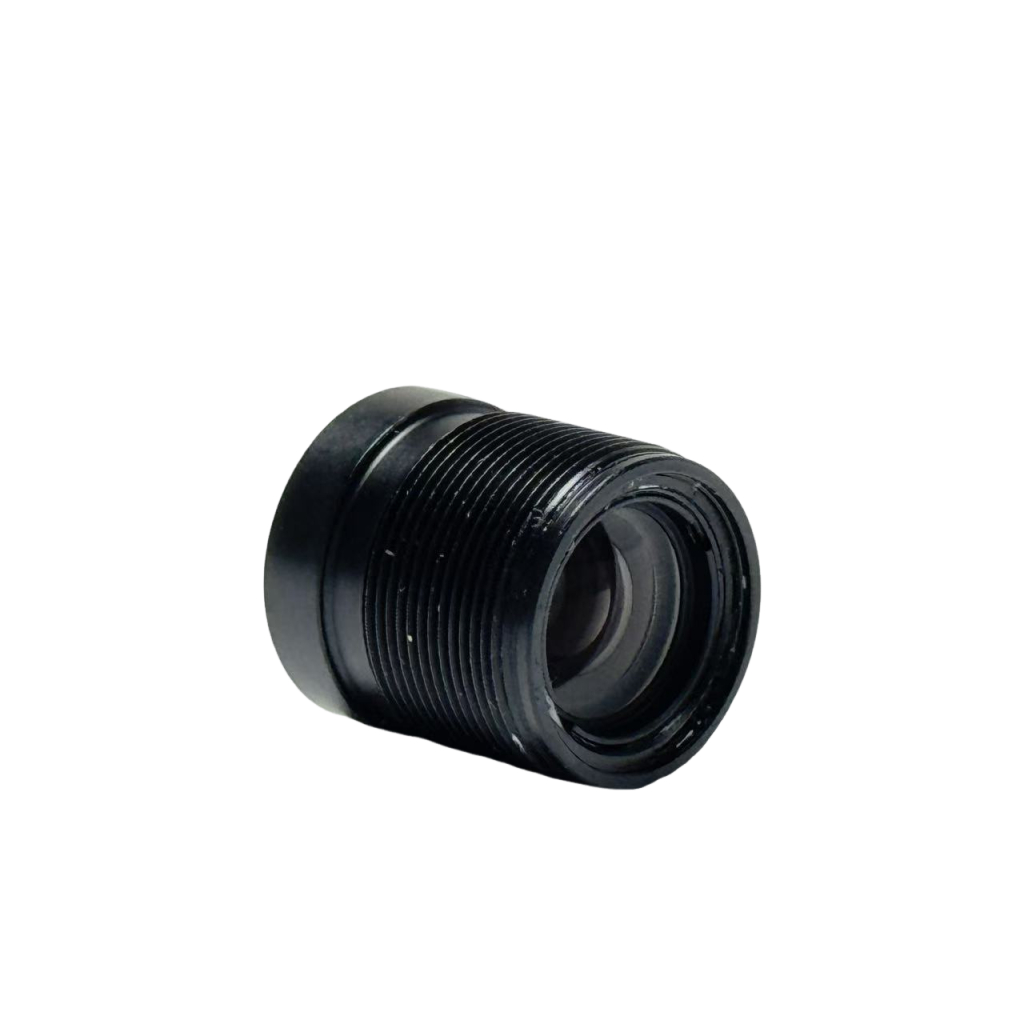

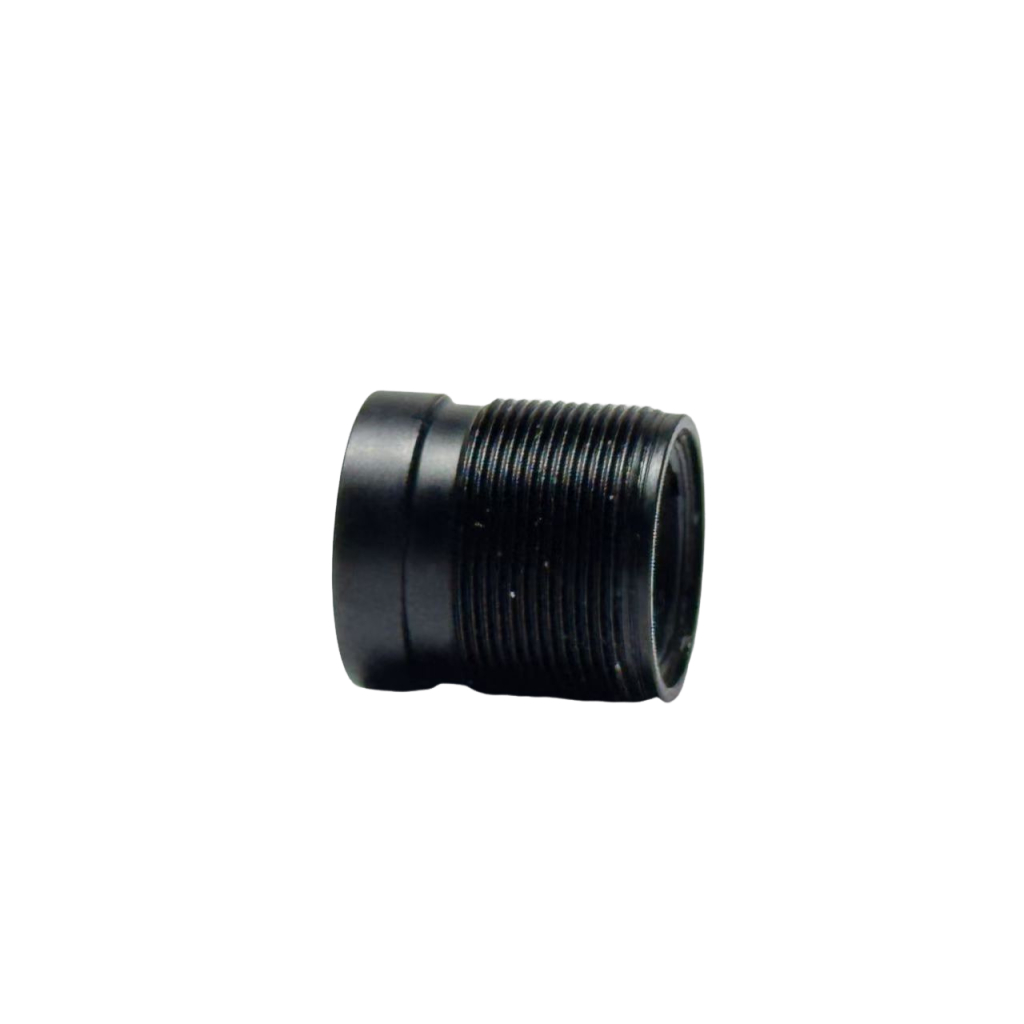

JY-M12-10.5-8MP-1/1.8F3.8
JY-M12-10.5-8MP-1/1.8F3.8
- Online customer service
- Factory guarantee
- Ontime delivery
| Sensor Size | 1/1.8" Φ9.6（MAX) |
| EFL | 10.5±5% |
| F.NO | 3.8±10% |
| FBL | 2.35±0.3 |
| TTL | 14.96±0.3 |
| TV DISTORTION | <-1% |
| RELATIVE ILL | >77% |
| Lens structure | 6G |
| MOD | 1.05m |
| CRA | <21° |
| Mount | M12*P0.5 |
| Torsion force | 50~500gf.cm |
| Focus | Manual |
| Iris | Fixed |
WHAT PRODUCTS WE OFFER
JY-M12-1.8LD-8MP-1/2.8
Low distortion 1.8mm focal length F2.4 Aperture 1/2.8 " image sensor 119FOV 8MP M12 S Mount cctv lens
JY-M12-2.0LD-8MP-1/2.8
Low distortion 2mm focal length F2.0 Aperture 1/2.8 " image sensor 123FOV 8MP M12 S Mount cctv lens
JY-M12-3.0LD-5MP-1/2.7
M12*P0.5 Mount low distortion lens cctv lens for IMX335 1/2.8 inch 5MP face recognition camera lens with 80 degree HFOV 95 degree DFOV
JY-M12-3.7FY-12MP-1/2
1/2 inch M12 Mount 4K cctv Camera Lens ,3.6mm/3.7mm/4 mm 12 megapixels 4K Lens F2.0 Aperture low distortion lens
JY-M12-2.87FY-12MP-1/2
1/2 inch M12 Mount 4K cctv Camera Lens ,2.8mm/2.87mm/3 mm 12mp 4K Lens ,TTL 14.5 mm with horizontal FOV 120 degrees for IMX586 Sensor
JY-M12-3.05BD-5MP-1/2
1/2 inch M12 Mount Low Distortion cctv Camera Lens ,3mm/3.05mm/3.6mm Focal Length with 650 nm IR filter 5 megapixel ,TTL 17mm BFL 3.11mm horizontal FOV 110 degrees
JY-M12-2.8BD-5MP-1/2.7
1/2.7" M12 Mount 2.8mm Focal Length Low Distortion Camera Lens with 650 nm IR filter 5 megapixel ,TTL 15.6mm BFL 3.8mm DHV 125/110/85 degrees
JY-M12-BD22-12MP-1/1.
m12 mount 12 megapixel 22mm /21.6mm focal length low distorition scanning recognition 12MP fixed iris manual focus lens for IMX226 1/1.8 inch sensor
JY-M12-3.3LD-8MP
m12 cctv lens for sensor IMX317 ,IMX415 1/2.5" 1/2.7 " ,1/2.8 " image sensor zie 8 megapixel manual focus 3.3mm focal length F2.0 Aperture TTL 12.8mm low distortion board camera lens
JY-M12-2.0LD-2MP-1/2.7
ITEMSPECIFICATIONTTL15.140.3mmEFL2.05%F/NO2.05%BFL2.41mm0.2FBL2.45mm0.2Max Image6.6Sensor1/2.7 (AR0230) 1928*1088FOVHorizontal115Vertical80Diagonal126Distortion(SMA-TV)<2.5%Relative IL>41%Chief Ray Angle<17ThreadM12*P0.5Construction6E-1IRIR Coati
JY-M12-1.9LD-8MP-1/2.7
ITEMSPECIFICATIONTTL15.140.3mmEFL2.05%F/NO2.05%BFL2.41mm0.2FBL2.45mm0.2Max Image6.6Sensor1/2.7 (AR0230) 1928*1088FOVHorizontal115Vertical80Diagonal126Distortion(SMA-TV)<2.5%Relative IL>41%Chief Ray Angle<17ThreadM12*P0.5Construction6E-1IRIR Coati
JY-M12-2.8BD-5MP-1/2.7
2.8mm Focal length F2.0 aperture 1/2.7 5MP low distortion lens
JY-M12-8LD-5MP-1/2.5
Low distortion 8mm focal length F3.0 Aperture 1/2.5 " image sensor 30.1FOV 5MP M12 S Mount cctv lens
JY-M12-6LD-8MP-1/1.8
Low distortion 6mm focal length F2.8 Aperture 1/1.8" image sensor 40FOV 8MP M12 S Mount cctv lens
JY-M12-6LD-5MP-1/2.5
Low distortion 6mm focal length F2.4 Aperture 1/2.5 " image sensor 65FOV 5MP M12 S Mount cctv lens
JY-M12-4.2LD-8MP-1/1.8
Low distortion 4.5mm focal length F2.0 Aperture 1/1.8 inch image sensor 98.5 degree FOV 8MP M12 S Mount cctv lens
JY-M12-3.2LD-12MP-1/2.3
Low distortion 3.2mm focal length F2.6 Aperture 1/2.3 " image sensor 100.8FOV 12MP 4K M12 S Mount cctv lens
JY-M12-2.5LD-5MP-1/2.5
Low distortion 2.5mm focal length F2.4 Aperture 1/2.5 " image sensor 5MP M12 S Mount cctv lens
JY-M12-2.1LD-8MP-1/2.7
Low distortion 2.1mm focal length F2.2 Aperture 1/2.7 " image sensor 118FOV 8MP M12 S Mount cctv lens
