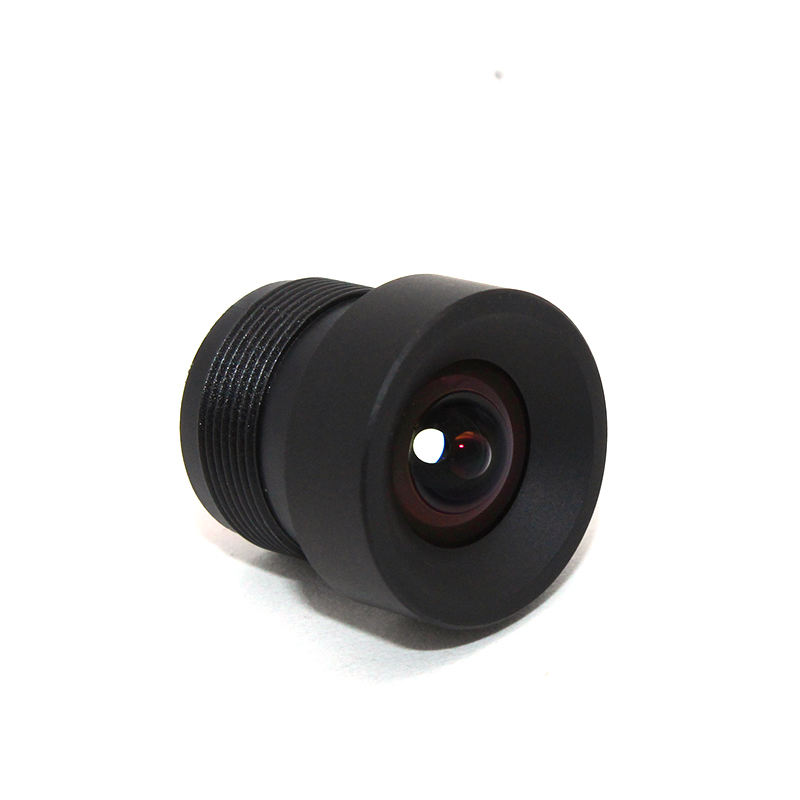

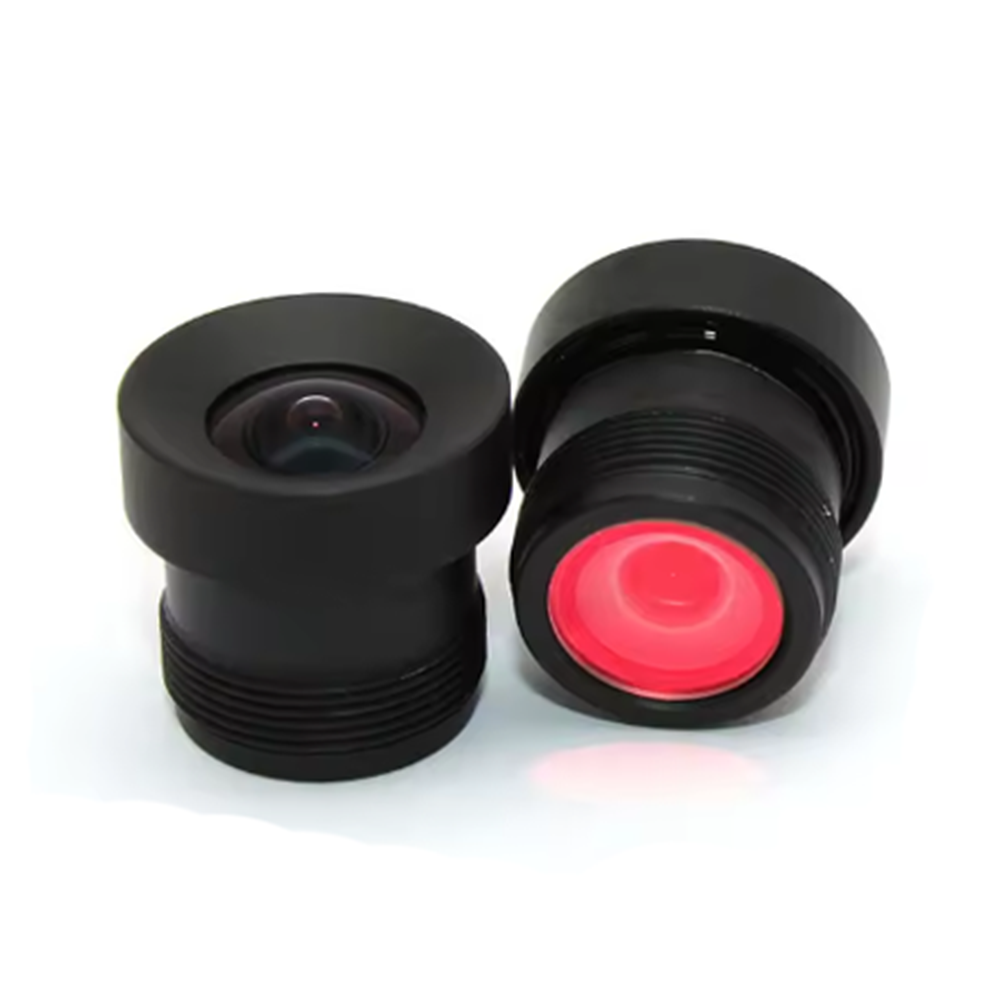

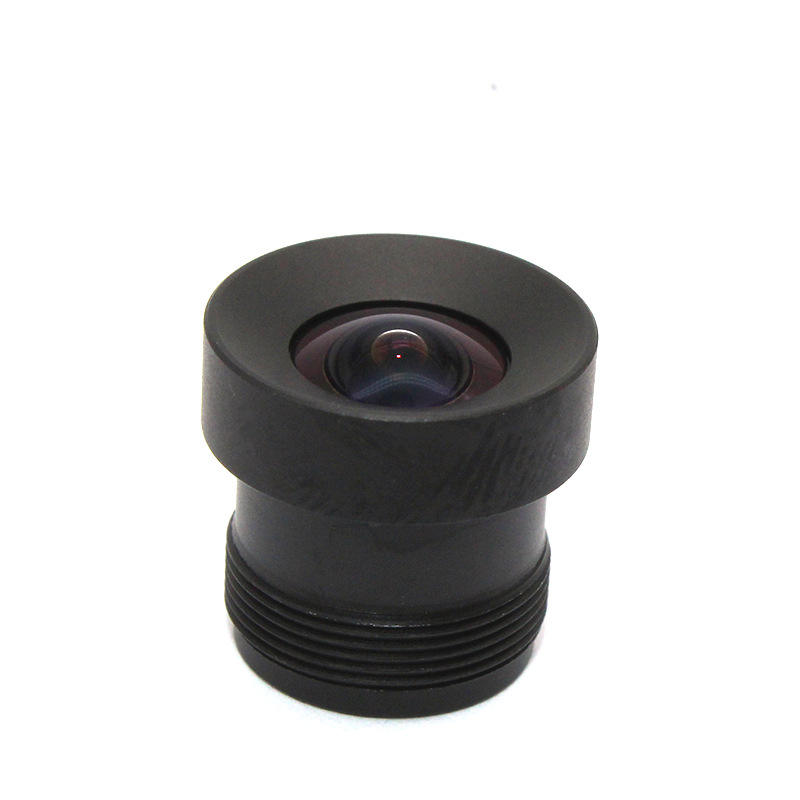

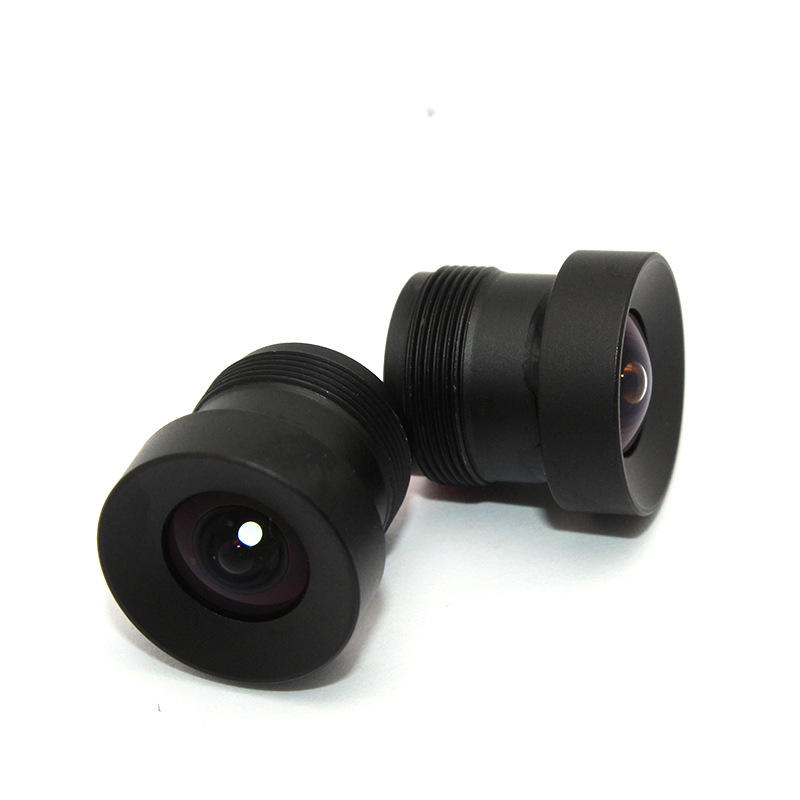

JY-M12-3.0LD-5MP-1/2.7
JY-M12-3.0LD-5MP-1/2.7
- Online customer service
- Factory guarantee
- Ontime delivery
| Sensor Type | 1/2.7" CMOS |
| EFL | 3±5% |
| F.NO | 2.5±10% |
| Image circle | Φ6.8（MAX) |
| MFL | 3.1±0.3（In air） |
| TTL | 15.7±0.3（In air） |
| TV DISTORTION | (1±5)% |
| RELATIVE ILL | ≤53.5% |
| Lens structure | 1G3P |
| MOD | 0.5m |
| CRA | (12.6±3)° |
| Mount | M12*P0.5 |
| Torsion force | 50~500gf.cm |
| Focus | Manual |
| Iris | Fixed |
