Home > Products > C mount lens
View large

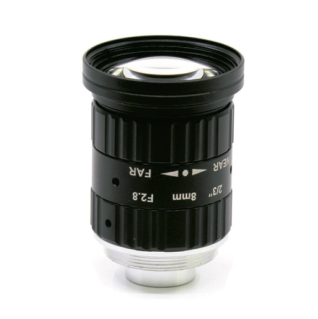

JY-C-8M10MP-2/3F2.8

JY-C-8M10MP-2/3F2.8

Get A Quote
  • Online customer service
  • Factory guarantee
  • Ontime delivery
Item
Specification
Image Sensor Size
2/3" (100mm)
Diagonal Length
420±11mm
Focal Length
8mm
Mount
C-Mount
Aperture Range
F2.8-16
FOV(Diagonal×Horizontal×Vertical)
2/3"
69.7°×58.5°×45.5°
1/2"
50.7°×42.5°×32.1°
1/3"
38.0°×31.3°×23.8°
Object Size (at Minimum Object Distance)
2/3"
231.1×185.1×138.8mm
1/2"
184.1×147.3×110.5mm
1/3"
137.0×109.6×82.2mm
Back Focal Length (in air)
8.42mm
Operation - Focus
Manual
Operation - Aperture
Manual
Distortion
2/3"
-0.81% (cy=5.5mm)
1/2"
-1.13% (y=4.0mm)
1/3"
-0.93% (y=3.0mm)
Focus Range
0.15m~∞
CRA
9.3°
Relative Illuminance RI
0.83
Filter Thread Diameter
M78×0.5 + P0.5
Weight
78.35g
Operating Temperature
-20℃~+60℃
