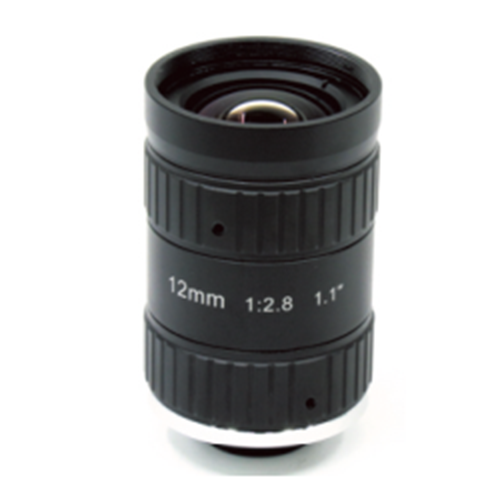

JY-C-12M-10MP-2/3F2.8

JY-C-12M-10MP-2/3F2.8

Get A Quote
  • Online customer service
  • Factory guarantee
  • Ontime delivery
Item
Specification
Image Sensor Size
2/3" (100mm)
Diagonal Length
420±11mm
Focal Length
12mm
Mount
C-Mount
Aperture Range
F2.8-16
Field of View (FOV)(Diagonal×Horizontal×Vertical)
2/3"
49.2°×39.3°×30.8°
1/2"
35.9°×29.0°×22.7°
1/3"
28.5°×22.7°×17.1°
Object Size (at Minimum Object Distance)
2/3"
201.1×161.4×121.3mm
1/2"
140.7×112.6×84.0mm
1/3"
105.1×84.1×63.0mm
Back Focal Length (in air)
6.09mm
Operation
Focus
Manual
Aperture
Manual
Distortion
2/3"
0.037% (cy=5.5mm)
1/2"
-0.17% (y=4.0mm)
1/3"
-0.15% (y=3.0mm)
Focus Range
0.15m~∞
CRA
10.5°
Relative Illuminance RI
0.85
Filter Thread Diameter
M27×P0.5
Weight
78.35g
Operating Temperature
-20℃~+60℃
