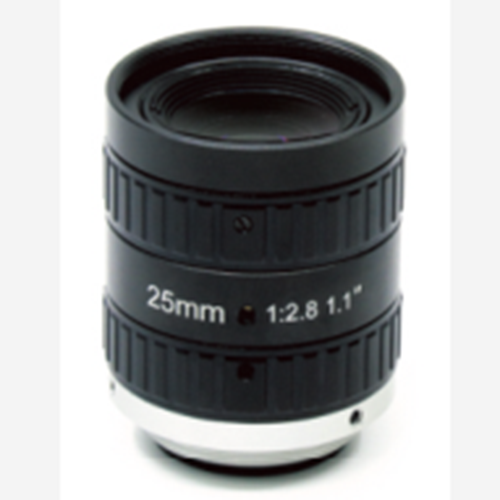

JY-C-25M-20MP-11F28

JY-C-25M-20MP-11F28

Get A Quote
  • Online customer service
  • Factory guarantee
  • Ontime delivery
Item
Specification
Image Sensor Size
1.1" (17.6mm)
Corresponding Wavelength
420~1000nm
Focal Length
25mm
Mount
C-Mount
Aperture Range
F2.8-F22
Field of View (FOV)(Diagonal×Horizontal×Vertical)
1.1"
19.96°×15.96°×11.96°
1"
18.38°×14.70°×10.98°
1/2"
9.34°×7.42°×5.5°
1/3"
6.96°×5.53°×4.16°
Object Size (at Minimum Object Distance)}
1.1"
79.3×63.44×47.58mm
1"
72.50×57.94×43.34mm
1/2"
36.18×28.76×21.66mm
1/3"
27.26×21.74×16.34mm
Back Focal Length (in air)
21.3mm
Operation
Focus
Manual
Aperture
Manual
Distortion
1.1"
-0.06% (y=8.8mm)
1"
-0.013% (y=8.0mm)
1/2"
-0.010% (y=4.0mm)
1/3"
0.006% (y=3.0mm)
Focus Range
0.25m~∞
Filter Thread Diameter
M37×P0.5
Weight
103.10g
Operating Temperature
-20℃~+60℃
