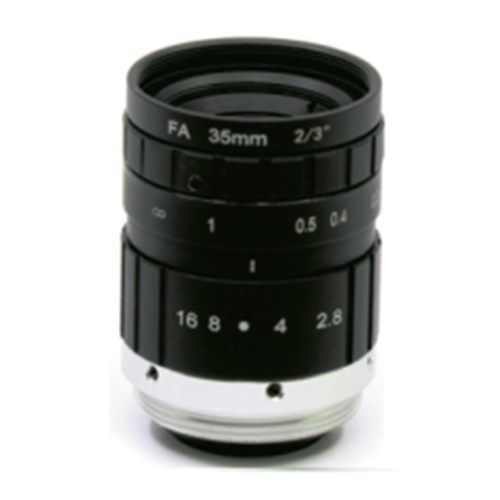

JY-C-35M-10MP-2/3F2.8

JY-C-35M-10MP-2/3F2.8

Get A Quote
  • Online customer service
  • Factory guarantee
  • Ontime delivery
Item
Specification
Image Sensor Size
2/3" (100mm)
Diagonal Length
420±11mm
Focal Length
35mm
Mount
C-Mount
Aperture Range
F2.8-16
Field of View (FOV)(Diagonal×Horizontal×Vertical)
2/3"
18.39°×14.8°×11.1°
1/2"
13.4°×10.8°×8.1°
1/3"
10.1×8.1×6.1°
Object Size (at Minimum Object Distance)
2/3"
54.1×43.3×32.5mm
1/2"
39.3×31.5×23.6mm
1/3"
29.5×23.6×17.7mm
Back Focal Length (in air)
13.62mm
Operation
Focus
Manual
Aperture
Manual
Distortion
2/3"
-0.172% (y=5.5mm)
1/2"
-0.077% (y=4.0mm)
1/3"
-0.045% (y=3.0mm)
Focus Range
0.20m~∞
CRA
10.25°
Relative Illuminance RI
0.94
Filter Thread Diameter
M27×P0.5
Weight
78.35g
Operating Temperature
-20℃~+60℃
