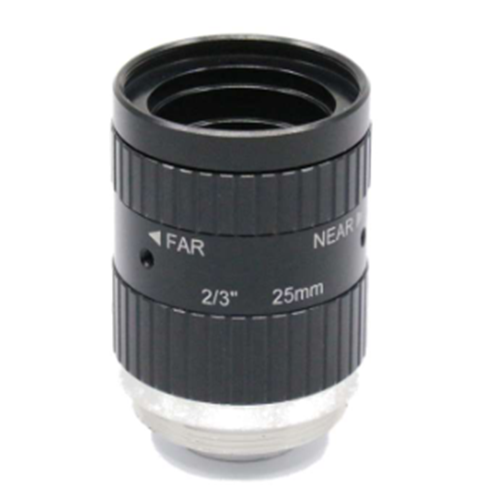

JY-C-25M-10MP-2/3F2.8

JY-C-25M-10MP-2/3F2.8

Get A Quote
  • Online customer service
  • Factory guarantee
  • Ontime delivery
Item
Specification
Image Sensor Size
2/3" (100mm)
Diagonal Length
420±11mm
Focal Length
25mm
Mount
C-Mount
Aperture Range
F2.8-16
Field of View (FOV)(Diagonal×Horizontal×Vertical)
2/3"
24.7°×19.7°×15.0°
1/2"
18.6°×14.9°×11.0°
1/3"
13.6°×10.9°×8.2°
Object Size (at Minimum Object Distance)
2/3"
58.9×47.3×35.5mm
1/2"
42.8×34.3×25.7mm
1/3"
32.1×25.7×19.3mm
Back Focal Length (in air)
11.71mm
Operation
Focus
Manual
Aperture
Manual
Distortion
2/3"
-0.016% (cy=5.5mm)
1/2"
-0.019% (y=4.0mm)
1/3"
-0.013% (y=3.0mm)
Focus Range
0.15m~∞
CRA
10.05°
Relative Illuminance RI
0.82
Filter Thread Diameter
M27×P0.5
Weight
78.35g
Operating Temperature
-20℃~+60℃
