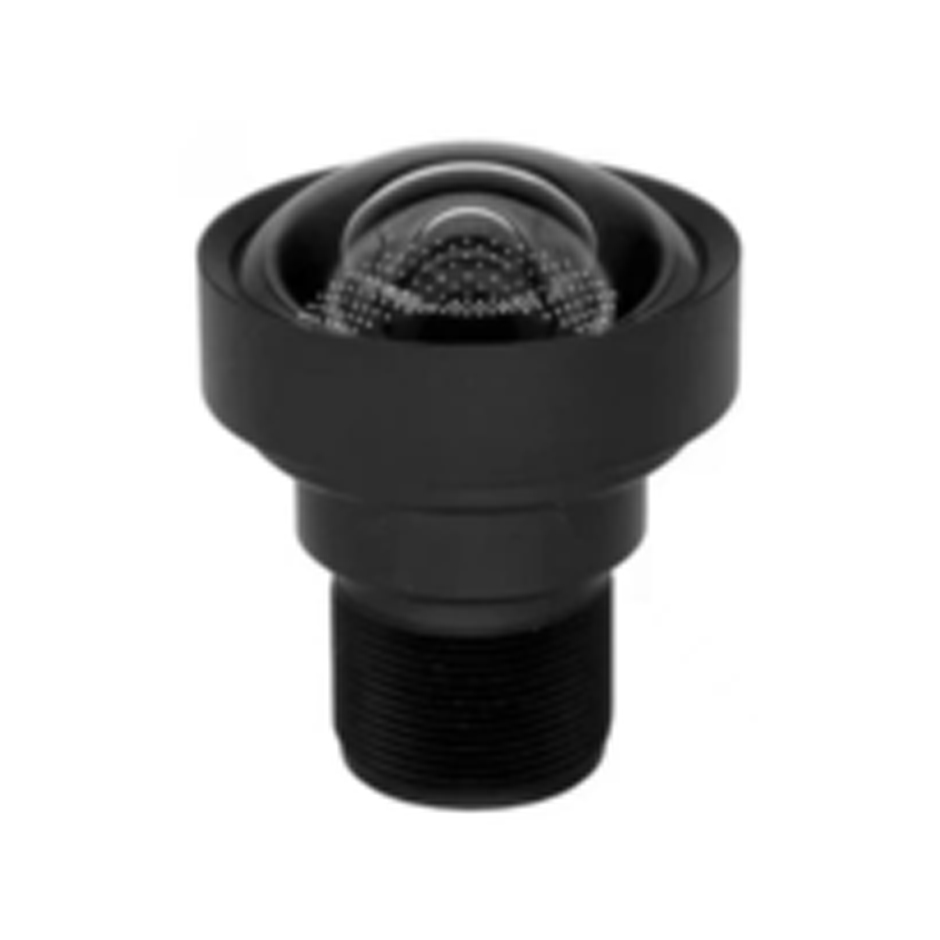

JY-M12-3.05FY-8MP-1/1.8
JY-M12-3.05FY-8MP-1/1.8
Get A Quote
Online customer service
Factory guarantee
Ontime delivery
Resolution
8 Megapixel
Image format
1/1.8″
Focal length
3.05mm
Aperture
F2.0
Mount
M12*P0.5
FieldAngle（D×H×V(°)）
118.8° × 109.9° × 71.8°
Optical Distortion
＜-5.85%
Relative Illumination
＞61.89%
CRA
＜15.96°
BFL
4.85mm
MBF
3.64mm
Lens Construction
4G4P+IR650
IR Correction
Yes
Iris (Operation)
Fixed
Focus (Operation)
/
Zoom (Operation)
/
Operating temperature
-20℃～+80℃
