IMX586-Mipi
IMX586-Mipi

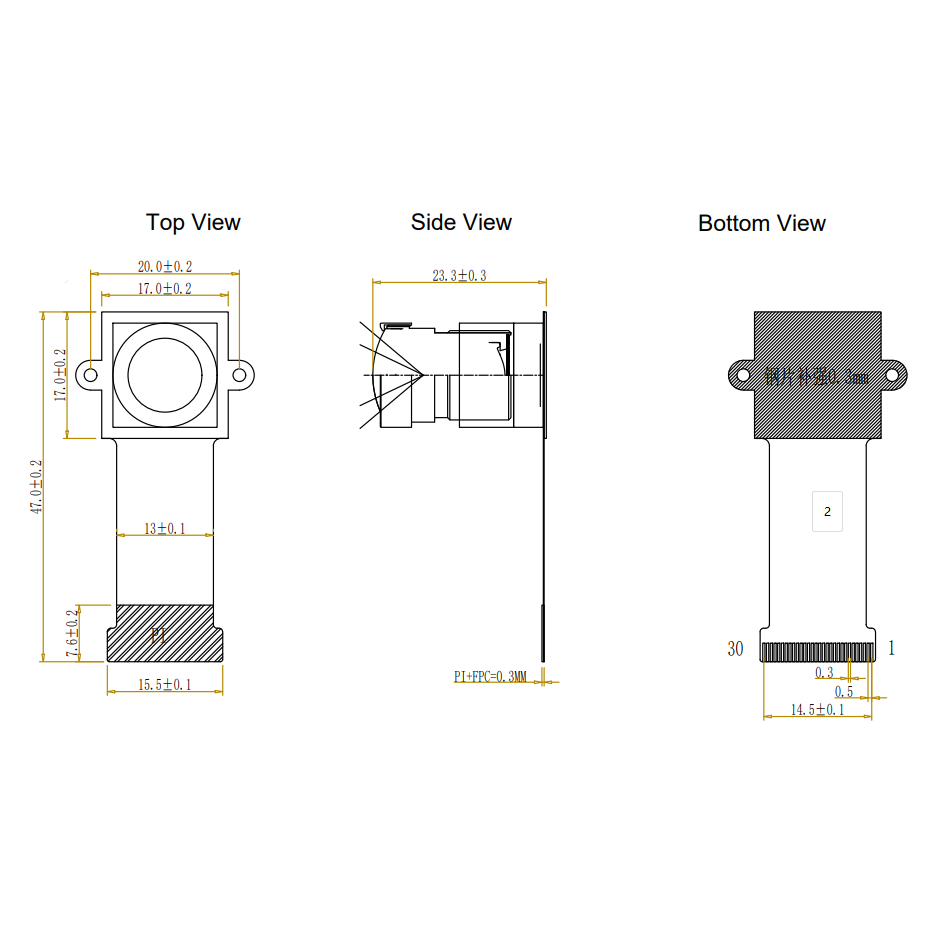

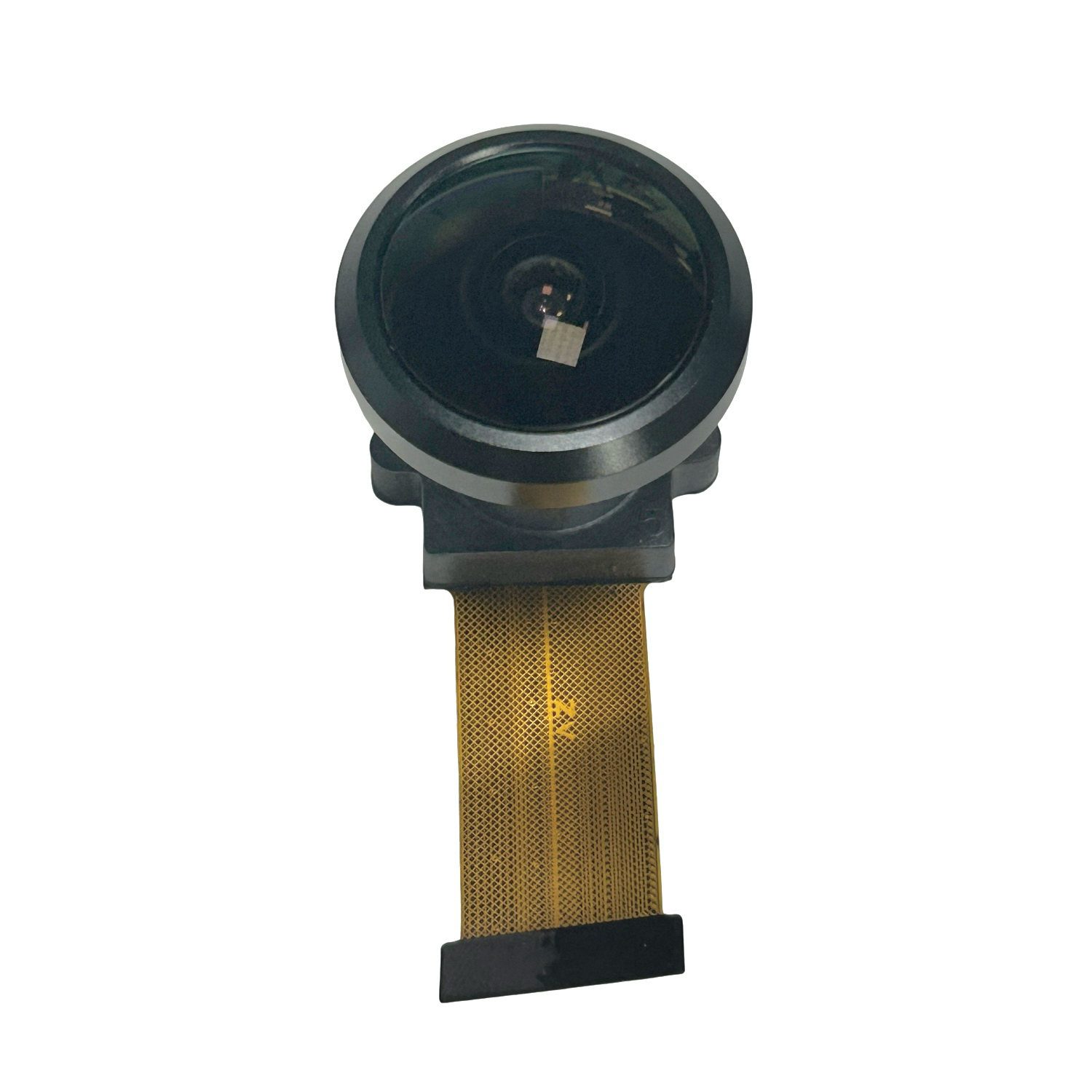

IMX586 Mipi Camera Module 48MP 8000x6000 1/2 Inch Sensor with HFOV 185-190 Degrees Fisheye Lens Wide Angle for Sports Camera- Online customer service
- Factory guarantee
- Ontime delivery
| Specification | Details | |
| Resolution | 12 MegaPixel | |

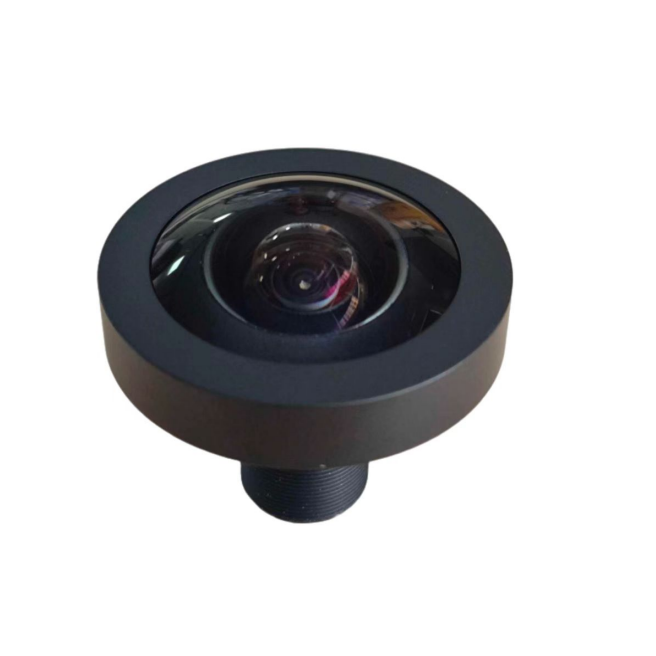

| Mount | M12 | |
| Image format | 5.6mmØ185° | |
| Focal length | 1.85mm | |
| Aperture | F2.0 | |
| Field Angle (D×H×V°) | 1/1.8": D=185°, H=185°, V=122.5° | |
| 1/2": D=185°, H=185°, V=155° | ||
| 1/2.5": D=185°, H=185°, V=136° | ||
| Distortion | -97.45% | |
| Minimum object distance (M.O.D.) | 0.15m | |
| Flange back focal length (Flange BFL) | / | |
| Optical back focal length (BFL) | 5.91mm (in air) | |
| Mechanical back focal length (MBF) | 5.4mm (in air) | |
| Day & night IR correction | Yes | |
| Chief ray angle (CRA) | ≤14.1° | |
| Operation | Iris | Fixed (Fixed aperture) |
| Focus | / | |
| Zoom | / | |
| Operating temperature | -20°C to +70°C | |
| Weight | 30.4g | |
| Dimension | Φ34 × 29.65mm | |
| Size tolerance | 00-10: ±0.05mm | |
| 10-30: ±0.1mm | ||
| 30-120: ±0.2mm | ||
| Angle tolerance | ±2° | |
