JY-M12-2.6FY-12MP-1/1.8
JY-M12-2.6FY-12MP-1/1.8
Get A Quote
Online customer service
Factory guarantee
Ontime delivery
Resolution
12 Megapixel
Image Format
1/1.8 "
Focal Length
2.60mm
Aperture
F1.6
Mount
M12P*0.5
Field Angle
1/1.8" TM678
1/1.8" SC4210
- V
83.1°
84.0°
- H
151.2°
152.3°
- D
178.6°
180.2°
Optical Distortion
<−30.25%
<−30.81%
Relative Illumination
>51.00%
>49.73%
Chief Ray Angle (CRA)
<21°
<21.20°
Back Focal Length (BFL)
4.36mm
Mechanical Back Focal Length (MBF)
3.61mm
Lens Construction
5G3P+IR650
IR Correction
Yes
Operation
Iris
Fixed
Focus
/
Zoom
/
Operating Temperature
−20°C ~ +80°C
WHAT PRODUCTS WE OFFER
Related products
JY-CS-2.5FY-8MP-2/3
2.5mm focal length F1.6 Aperture 190 degree 2/3" sensor 8MP CS Mount cctv fisheye lens
Learn More
JY-M12-1.2FY-16MP-1/2.3
16 megapixel 1.2 mm focal length F2.5 Aperture 1/2.33 inch image sensor 220 degree FOV M12 S Mount IR Day night vision CCTV Board fisheye lens
Learn More
JY-M12-1.5FY-5MP-1/2.5
5 megapixel 1.5 mm focal length F2.4 Aperture 1/2.5 inch image sensor 0.3m MOD 210 degree FOV IR correction M12 S Mount 6G CCTV fisheye lens
Learn More
JY-M12-1.6FY-2MP-1/3
2 megapixel 1.6mm focal length F2.5 Aperture 1/3 1/4 inch image sensor 200 degree diagonal M12 S Mount IP68 Waterproof fisheye cctv lens
Learn More
JY-M12-1.6FY-5MP-1.1.8
5 megapixel 1.6mm focal length F2.0 Aperture 1/1.8 inch IMX178 image sensor IR correction 180 degree FOV Wide-angle view panorama fisheye M12 cctv lens
Learn More
JY-M12-1.7FY-2MP-1/4
2 megapixel 1.7 mm F2.3 1/4" 140°FOV Wide angle view M12 S Mount cctv lens
Learn More
JY-M12-1.7FY-5MP-1/2.5
1/2.5" image sensor 1.7mm focal length F2.0 Aperture 5 megapixel 180 degree FOV M12 mount fisheye wide angle lens for cctv cameras
Learn More
JY-M12-1.7FY-5MP-1/2.5S
5 megapixel 1.7 mm focal length F2.0 Aperture 1/2.5 inch sensor 180/185 degree FOV M12 Mount fisheye camera lens
Learn More
JY-M12-1.7FY-8MP-1/1.8
1/1.8″ Φ4.82mm 1.7mm F2.0 8mp 185 degree FOV M12x0.5 mount IR correction fisheye lens
Learn More
JY-M12-1.8FY-3MP-1/3
1/3 " 1.8mm F2.0 M12*0.5 Mount 185 degree FOV 3MP fisheye lens with IR correction
Learn More
JY-M12-1.8FY-5MP-1/2.5A
5 megapixel 1.8mm focal length F2.0 Aperture 1/2.5" sensor 180°FOV M12 fisheye wide angle cctv lens
Learn More
JY-M12-1.8FY-5MP-1/2.5B
5 megapixel 1.8mm focal length F2.0 Aperture 1/2.5" image sensor 180°FOV M12 fisheye lens for OEM cameras
Learn More
JY-M12-1.8FY-5MP-1/2.5C
5 megapixel 1.8 mm focal length F2.0 Aperture 190°FOV M12 fisheye lens for 1/2.5" and 1/3 " image sensor
Learn More
JY-M12-1.8FY-5MP-1/2.7A
5 megapixel 1.8mm focal length F1.8 Aperture 1/2.7" image circle 220°FOV M12 S mount fisheye lens
Learn More
JY-M12-1.8FY-5MP-1/2.7A
5 megapixel 1.8mm focal length F1.8 Aperture 1/2.7" image circle 220°FOV M12 S mount fisheye lens
Learn More
JY-M12-1.9FY-2MP-1/4
2MP 1.9mm F2.3 1/4" 160 degree FOV wide angle view M12*0.5 Mount cctv lens
Learn More
JY-M12-1.13FY-8MP-1/2.7
8 megapixel 1.13 mm focal length F2.0 Aperture 1/2.7 and 1/1.8 inch image sensor (IMX178/IMX226) 220 degree FOV M12 S Mount CCTV Board fisheye lens
Learn More
JY-M12-1.27FY-5MP-1/2.3
5 megapixel 1.27 mm focal length F2.5 Aperture 1/2.3 inch image sensor 185 degree FOV M12 S Mount IR correction cctv fisheye lenses
Learn More
JY-M12-1.44FY-3MP-1/2.5
3 megapixel 1.44 mm focal length F2.0 Aperture 1/2.5 inch 180 degree FOV Wide-angle view panoramic fisheye M12 Mount cctv camera lens
Learn More
JY-M12-1.44FY-5MP-1/2.5
5 megapixel 1.44 mm focal length F2.0 Aperture 1/2.5 inch 180 degree FOV M12 S Mount cctv security camera lens
Learn More
JY-M12-1.55FY-12MP-1/2.3
12 megapixel 4K 1.55 mm focal length F2.0 Aperture 1/2.3 1/2.5 1/2.7 inch image sensor 195 degree FOV M12 S Mount CCTV Board fisheye panorama lens
Learn More
JY-M12-1.56FY-5MP-1/2.5
5 megapixel 1.56mm focal length F2.0 Aperture 1/2.5 inch 20.7mm TTL 180 degree Horizontal Wide-angle view panorama fisheye M12 cctv lens
Learn More
JY-M12-1.66FY-5MP-1/2.7
5 megapixel 1.66mm focal length F2.0 Aperture 1/2.7 inch 170 degree FOV Wide-angle view panorama fisheye M12 mount cctv lens
Learn More
JY-M12-1.78FY-2MP-1/3S
1/3″ 1.78mm F2.0 8mp 165 degree FOV M12 S mount 2 megapixel fisheye camera lens
Learn More
JY-M12-1.78FY-5MP-1/2.7
1/2.7″OV2710 1/3" OV4689 1.78mm F2.0 5mp 200 degree FOV 14.5mm TTL 6G+1IRF Lens construction M12 mount fisheye cctv lens
Learn More
JY-M12-1.85FY-12MP-1/1.8
12MP 4K cctv lens 1.85mm focal length F2.0 1/1.8 1/2 1/2.5 inch 185 degree FOV M12 *0.5 Mount fisheye lens with IR correction
Learn More
JY-M12-2.0FY-5MP-1/2.5
5MP 2.0mm focal length F2.0 Aperture 1/2.5" 190 degree FOV wide angle view M12 Mount cctv fisheye lens
Learn More
JY-M12-2.1FY-2MP-1/4
2 megapixels 2.1mm focal length F2.3 Aperture 1/4 " 140 degree wide angle fisheye lens
Learn More
JY-M12-2.1FY-3MP-1/3
2.1mm focal length F2.2 Aperture 1/3 inch 150 degree FOV 3 megapixel fisheye Wide angle viewing cctv lenses
Learn More
JY-M12-2.1FY-5MP-1/2.5
2.1mm focal length F2.0 Aperture 1/2.5 inch 160 degree DHV 5MP Wide angle viewing cctv lens
Learn More
JY-M12-2.1FY-8MP-1/3
8 megapixels 2.1mm focal length F2.0 Aperture 1/2.5 " low distortion wide angle fisheye lens
Learn More
JY-M12-2.2FY-8MP-1/1.8
2.2mm focal length F1.8 Aperture 1/1.8 inch 130 degree FOV 8 megapixel fisheye Wide angle low distortion fisheye lens
Learn More
JY-M12-2.5FY-3MP-1/2.7
2.5mm focal length F2.0 Aperture 1/2.7 image sensor 3MP resolution 145 degree FOV M12 Mount cctv lens
Learn More
JY-M12-2.5FY-8MP-1/1.8
2.5mm focal length F1.8 Aperture 1/1.8 image sensor 8MP resolution M12 Mount Board lens
Learn More
JY-M12-2.8FY-5MP-1/1.8
2.8 mm focal length F2.0 Aperture 1/1.8 image sensor 5MP resolution M12 Mount cctv camera lenses
Learn More
JY-M12-2.8FY-8MP-1/1.8
2.5mm focal length F1.8 Aperture 1/1.8 image sensor 8MP resolution M12 Mount Board lens
Learn More
JY-M12-2.8FY-8Mpeg-1/2.5
2.8 mm focal length F1.8 Aperture 1/1.8 image sensor 8MP resolution M12 Mount Board camera lens
Learn More
JY-M12-3.2BD-12MP-1/1.7
12mp 4K fisheye lens M12 Mount 3.2mm focal length F2.0 Aperture 1/1.7 " 160 degree FOV panorama fisheye lens
Learn More
JY-M12-3.2FY-8MP-1/1.8
3.2 mm focal length F2.0 Aperture 1/1.8 image sensor 8MP resolution M12 mount cctv lens
Learn More
JY-M12-1.9FY-2MP-1/4
1/4" M12 Mount 1.9mm 2mm Camera Lens with HFOV on 1/4" RPi Camera 110 F2.0 with 650nm IR Filter 8mm Height Lens Holder Optional
Learn More
JY-M12-3.05FY-8MP-1/1.8
8 Megapixel M12 Fisheye Lens with 110 Horizontal FOV ,2.8mm 3mm 3.05mm Focal Length 1/1.8" Wide Angle Fisheye M12*S Mount Lens
Learn More
JY-M12-1.45FY-5MP-1/4
M12 cctv board lens wide angle HFOV 140 degree for OV5640 1/4 inch sensor 1.45 mm focal length F2.0 Aperture
Learn More
JY-M12-1.8FY-5MP-1/2.9
5mp CCTV Lenses M12 Fisheye Lens 1.8 mm Focal Length F2.2 for IMX273 IMX323 1/2.9 Inch Camera Sensor with HFOV 120 Degrees
Learn More
JY-M12-1.11FY-2MP-1/3
1/3 1/4 Inch F2.0 2MP 220 Degree 1.11mm M12 Fisheye Lens Wide Angle Board Fisheye Lens CCTV Lenses
Learn More
JY-M12-1.47FY-3MP-1/3
3MP 1080P 1.47mm F1.8 m12 board lens m12 board fisheye lens for 1/3 and 1/4 inch sensor
Learn More
FEEDBACK，
We will solve your doubts as quickly as possible.
SUBMIT
Home
Products
Phone
About Us
Home
Product
Thermal Module
Board Lens- 2MP/3MP
Board Lens - 5MP/8MP/12MP
Low distortion lens
M12 D14 Varifocal Zoom lens
Fisheye Lens
Starlight lens
Pinhole lens
Fixed CS Mount lens
C mount lens
C and CS Mount Zoom lens
DC Auto Iris Vari-focal lens
Solutions
Security Monitoring
Vehicle Monitoring
Driverless Cars
Face Recognition
UAVs
AR/VR
The Blog
Company News
Industry Information
About Us
Company Introduction
Certificate
Factory Environment
Contact Us
+86-13420957505
JY-CS-2.5FY-8MP-2/3
2.5mm focal length F1.6 Aperture 190 degree 2/3" sensor 8MP CS Mount cctv fisheye lens
JY-M12-1.2FY-16MP-1/2.3
16 megapixel 1.2 mm focal length F2.5 Aperture 1/2.33 inch image sensor 220 degree FOV M12 S Mount IR Day night vision CCTV Board fisheye lens
JY-M12-1.5FY-5MP-1/2.5
5 megapixel 1.5 mm focal length F2.4 Aperture 1/2.5 inch image sensor 0.3m MOD 210 degree FOV IR correction M12 S Mount 6G CCTV fisheye lens
JY-M12-1.6FY-2MP-1/3
2 megapixel 1.6mm focal length F2.5 Aperture 1/3 1/4 inch image sensor 200 degree diagonal M12 S Mount IP68 Waterproof fisheye cctv lens
JY-M12-1.6FY-5MP-1.1.8
5 megapixel 1.6mm focal length F2.0 Aperture 1/1.8 inch IMX178 image sensor IR correction 180 degree FOV Wide-angle view panorama fisheye M12 cctv lens
JY-M12-1.7FY-2MP-1/4
2 megapixel 1.7 mm F2.3 1/4" 140°FOV Wide angle view M12 S Mount cctv lens
JY-M12-1.7FY-5MP-1/2.5
1/2.5" image sensor 1.7mm focal length F2.0 Aperture 5 megapixel 180 degree FOV M12 mount fisheye wide angle lens for cctv cameras
JY-M12-1.7FY-5MP-1/2.5S
5 megapixel 1.7 mm focal length F2.0 Aperture 1/2.5 inch sensor 180/185 degree FOV M12 Mount fisheye camera lens
JY-M12-1.7FY-8MP-1/1.8
1/1.8″ Φ4.82mm 1.7mm F2.0 8mp 185 degree FOV M12x0.5 mount IR correction fisheye lens
JY-M12-1.8FY-3MP-1/3
1/3 " 1.8mm F2.0 M12*0.5 Mount 185 degree FOV 3MP fisheye lens with IR correction
JY-M12-1.8FY-5MP-1/2.5A
5 megapixel 1.8mm focal length F2.0 Aperture 1/2.5" sensor 180°FOV M12 fisheye wide angle cctv lens
JY-M12-1.8FY-5MP-1/2.5B
5 megapixel 1.8mm focal length F2.0 Aperture 1/2.5" image sensor 180°FOV M12 fisheye lens for OEM cameras
JY-M12-1.8FY-5MP-1/2.5C
5 megapixel 1.8 mm focal length F2.0 Aperture 190°FOV M12 fisheye lens for 1/2.5" and 1/3 " image sensor
JY-M12-1.8FY-5MP-1/2.7A
5 megapixel 1.8mm focal length F1.8 Aperture 1/2.7" image circle 220°FOV M12 S mount fisheye lens
JY-M12-1.8FY-5MP-1/2.7A
5 megapixel 1.8mm focal length F1.8 Aperture 1/2.7" image circle 220°FOV M12 S mount fisheye lens
JY-M12-1.9FY-2MP-1/4
2MP 1.9mm F2.3 1/4" 160 degree FOV wide angle view M12*0.5 Mount cctv lens
JY-M12-1.13FY-8MP-1/2.7
8 megapixel 1.13 mm focal length F2.0 Aperture 1/2.7 and 1/1.8 inch image sensor (IMX178/IMX226) 220 degree FOV M12 S Mount CCTV Board fisheye lens
JY-M12-1.27FY-5MP-1/2.3
5 megapixel 1.27 mm focal length F2.5 Aperture 1/2.3 inch image sensor 185 degree FOV M12 S Mount IR correction cctv fisheye lenses
JY-M12-1.44FY-3MP-1/2.5
3 megapixel 1.44 mm focal length F2.0 Aperture 1/2.5 inch 180 degree FOV Wide-angle view panoramic fisheye M12 Mount cctv camera lens
JY-M12-1.44FY-5MP-1/2.5
5 megapixel 1.44 mm focal length F2.0 Aperture 1/2.5 inch 180 degree FOV M12 S Mount cctv security camera lens
JY-M12-1.55FY-12MP-1/2.3
12 megapixel 4K 1.55 mm focal length F2.0 Aperture 1/2.3 1/2.5 1/2.7 inch image sensor 195 degree FOV M12 S Mount CCTV Board fisheye panorama lens
JY-M12-1.56FY-5MP-1/2.5
5 megapixel 1.56mm focal length F2.0 Aperture 1/2.5 inch 20.7mm TTL 180 degree Horizontal Wide-angle view panorama fisheye M12 cctv lens
JY-M12-1.66FY-5MP-1/2.7
5 megapixel 1.66mm focal length F2.0 Aperture 1/2.7 inch 170 degree FOV Wide-angle view panorama fisheye M12 mount cctv lens
JY-M12-1.78FY-2MP-1/3S
1/3″ 1.78mm F2.0 8mp 165 degree FOV M12 S mount 2 megapixel fisheye camera lens
JY-M12-1.78FY-5MP-1/2.7
1/2.7″OV2710 1/3" OV4689 1.78mm F2.0 5mp 200 degree FOV 14.5mm TTL 6G+1IRF Lens construction M12 mount fisheye cctv lens
JY-M12-1.85FY-12MP-1/1.8
12MP 4K cctv lens 1.85mm focal length F2.0 1/1.8 1/2 1/2.5 inch 185 degree FOV M12 *0.5 Mount fisheye lens with IR correction
JY-M12-2.0FY-5MP-1/2.5
5MP 2.0mm focal length F2.0 Aperture 1/2.5" 190 degree FOV wide angle view M12 Mount cctv fisheye lens
JY-M12-2.1FY-2MP-1/4
2 megapixels 2.1mm focal length F2.3 Aperture 1/4 " 140 degree wide angle fisheye lens
JY-M12-2.1FY-3MP-1/3
2.1mm focal length F2.2 Aperture 1/3 inch 150 degree FOV 3 megapixel fisheye Wide angle viewing cctv lenses
JY-M12-2.1FY-5MP-1/2.5
2.1mm focal length F2.0 Aperture 1/2.5 inch 160 degree DHV 5MP Wide angle viewing cctv lens
JY-M12-2.1FY-8MP-1/3
8 megapixels 2.1mm focal length F2.0 Aperture 1/2.5 " low distortion wide angle fisheye lens
JY-M12-2.2FY-8MP-1/1.8
2.2mm focal length F1.8 Aperture 1/1.8 inch 130 degree FOV 8 megapixel fisheye Wide angle low distortion fisheye lens
JY-M12-2.5FY-3MP-1/2.7
2.5mm focal length F2.0 Aperture 1/2.7 image sensor 3MP resolution 145 degree FOV M12 Mount cctv lens
JY-M12-2.5FY-8MP-1/1.8
2.5mm focal length F1.8 Aperture 1/1.8 image sensor 8MP resolution M12 Mount Board lens
JY-M12-2.8FY-5MP-1/1.8
2.8 mm focal length F2.0 Aperture 1/1.8 image sensor 5MP resolution M12 Mount cctv camera lenses
JY-M12-2.8FY-8MP-1/1.8
2.5mm focal length F1.8 Aperture 1/1.8 image sensor 8MP resolution M12 Mount Board lens
JY-M12-2.8FY-8Mpeg-1/2.5
2.8 mm focal length F1.8 Aperture 1/1.8 image sensor 8MP resolution M12 Mount Board camera lens
JY-M12-3.2BD-12MP-1/1.7
12mp 4K fisheye lens M12 Mount 3.2mm focal length F2.0 Aperture 1/1.7 " 160 degree FOV panorama fisheye lens
JY-M12-3.2FY-8MP-1/1.8
3.2 mm focal length F2.0 Aperture 1/1.8 image sensor 8MP resolution M12 mount cctv lens
JY-M12-1.9FY-2MP-1/4
1/4" M12 Mount 1.9mm 2mm Camera Lens with HFOV on 1/4" RPi Camera 110 F2.0 with 650nm IR Filter 8mm Height Lens Holder Optional
JY-M12-3.05FY-8MP-1/1.8
8 Megapixel M12 Fisheye Lens with 110 Horizontal FOV ,2.8mm 3mm 3.05mm Focal Length 1/1.8" Wide Angle Fisheye M12*S Mount Lens
JY-M12-1.45FY-5MP-1/4
M12 cctv board lens wide angle HFOV 140 degree for OV5640 1/4 inch sensor 1.45 mm focal length F2.0 Aperture
JY-M12-1.8FY-5MP-1/2.9
5mp CCTV Lenses M12 Fisheye Lens 1.8 mm Focal Length F2.2 for IMX273 IMX323 1/2.9 Inch Camera Sensor with HFOV 120 Degrees
JY-M12-1.11FY-2MP-1/3
1/3 1/4 Inch F2.0 2MP 220 Degree 1.11mm M12 Fisheye Lens Wide Angle Board Fisheye Lens CCTV Lenses
JY-M12-1.47FY-3MP-1/3

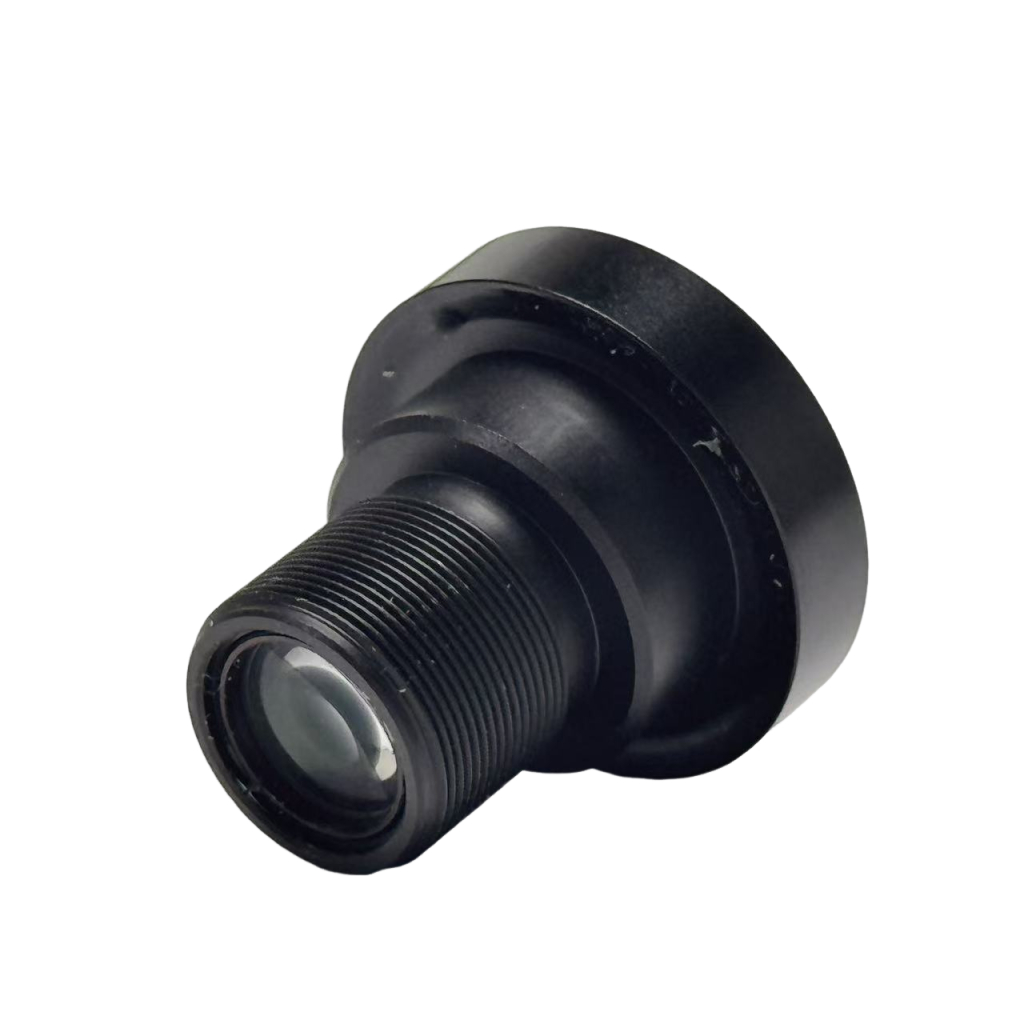

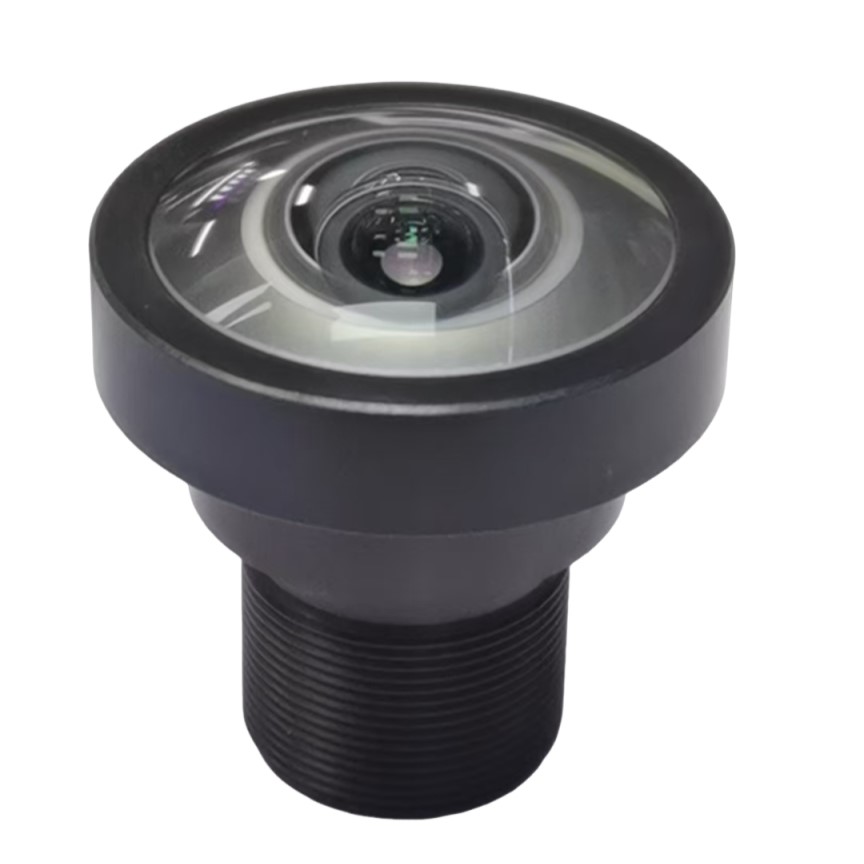

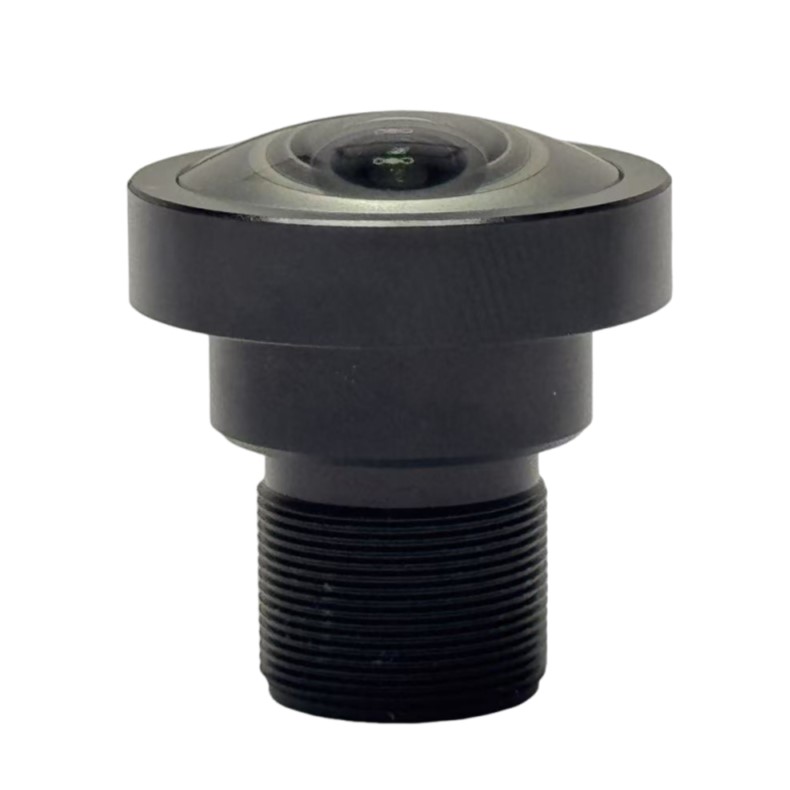

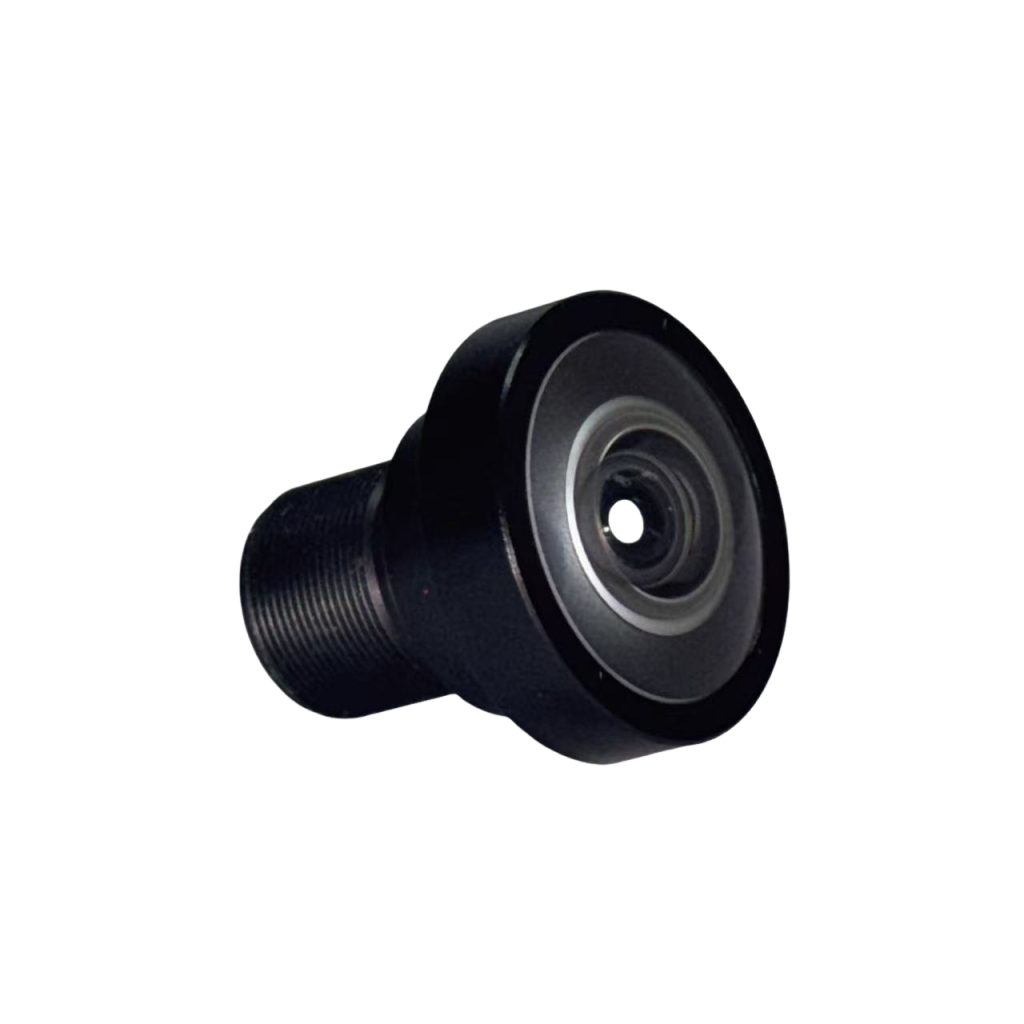

3MP 1080P 1.47mm F1.8 m12 board lens m12 board fisheye lens for 1/3 and 1/4 inch sensor
