JY-M12-1.37FY-8MP-1/2.5

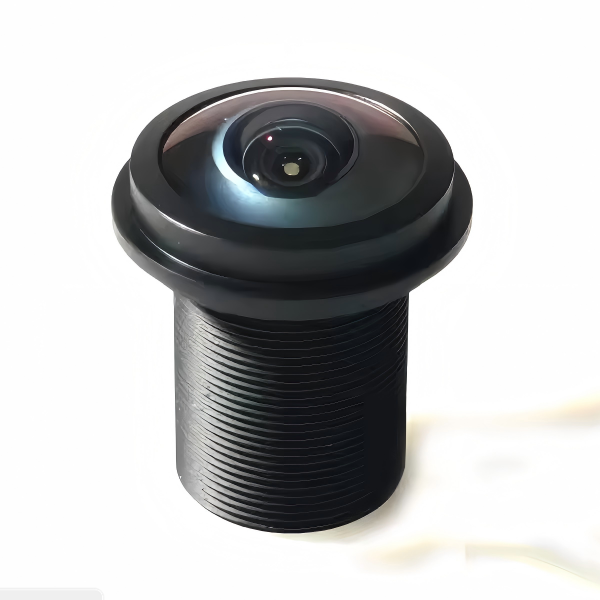

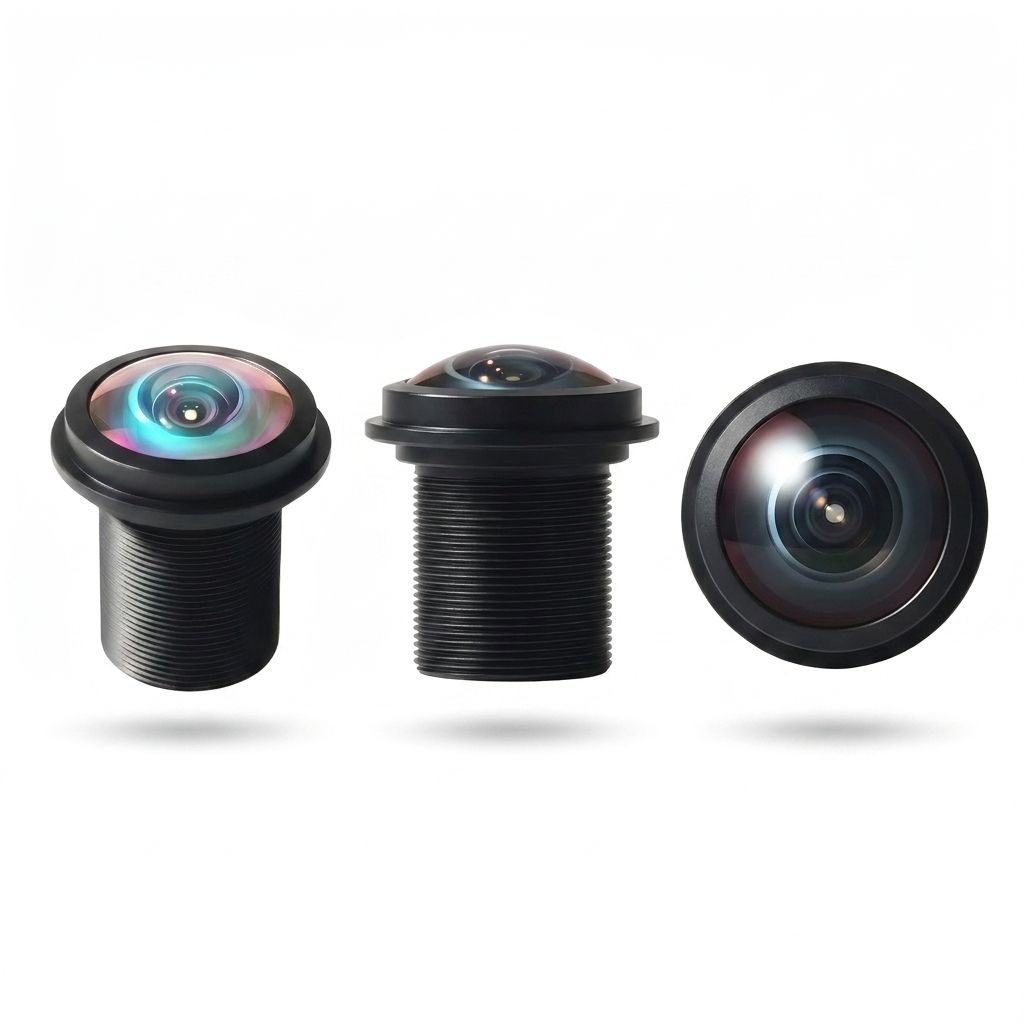

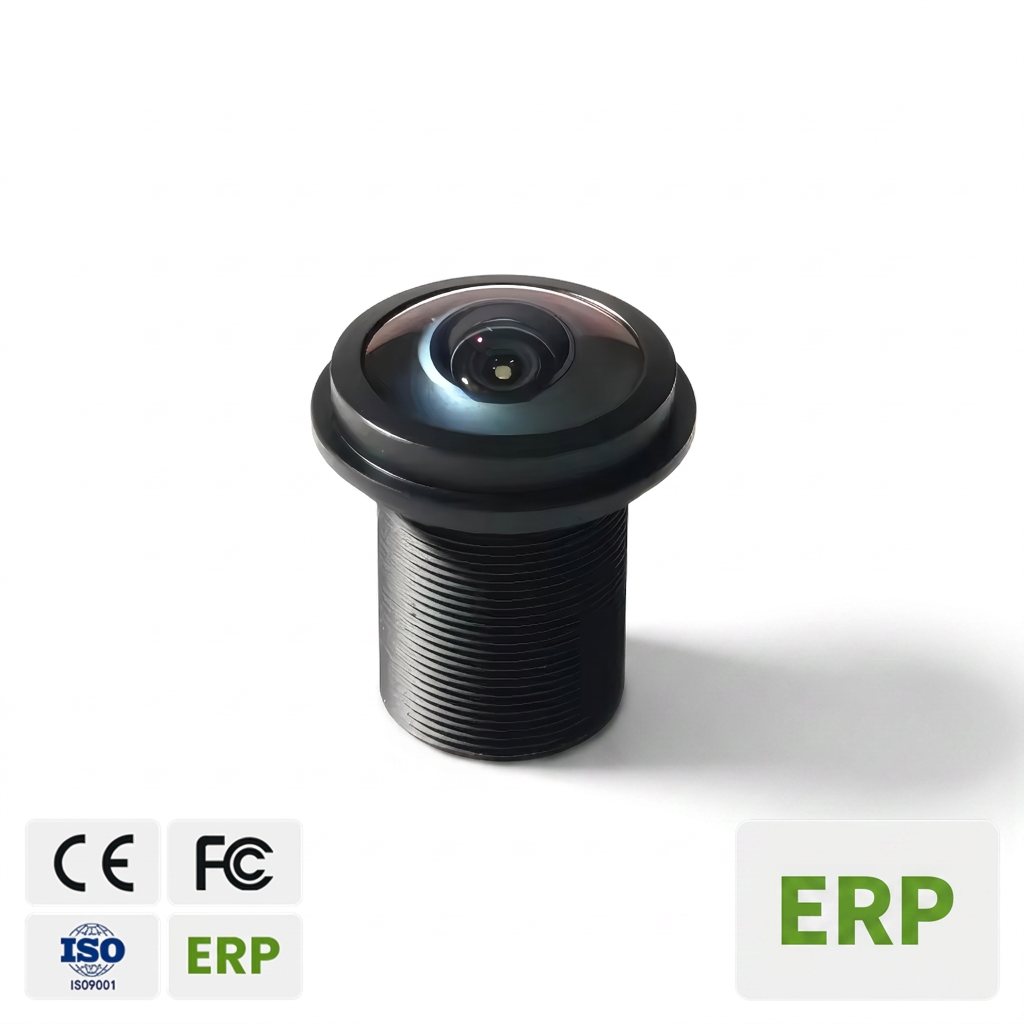

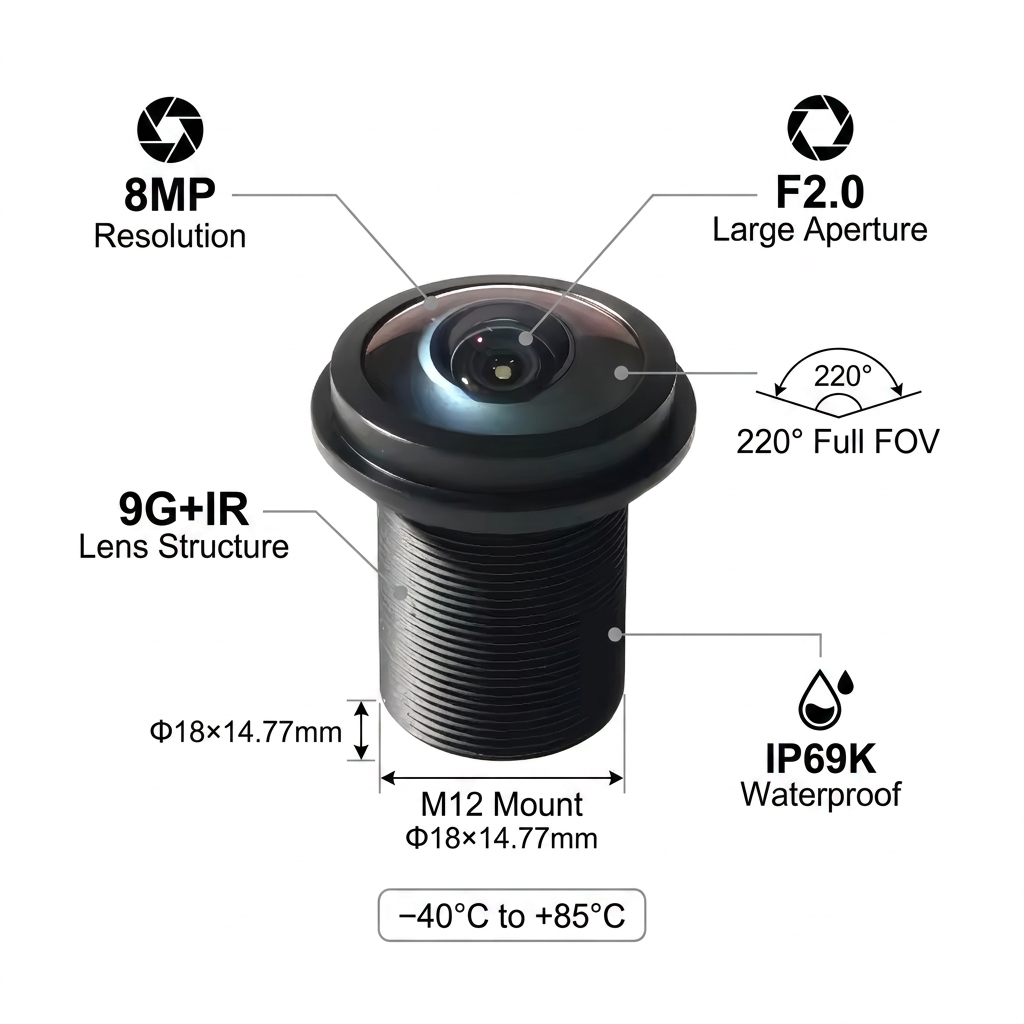

1.37mm 8MP M12 Fisheye Lens
- Online customer service
- Factory guarantee
- Ontime delivery
| Resolution | 8 Megapixel | |||||||||
| Image Circle | Φ4.9mm | |||||||||
| Focal length | 1.37mm | |||||||||
| Aperture | F2.0 | |||||||||
| Mount | M12 | |||||||||
|
D×H×V(°) |
" ° |
1/2.5 | ||||||||
| D | 220 | |||||||||
| H | 200 | |||||||||
| V | 200 | |||||||||
| Optical Distortion | -97.60% | |||||||||
| M.O.D. | 0.15m | |||||||||
| CRA | 17° | |||||||||
| Dimension | Φ18×14.77mm | |||||||||
| TTL | 24mm | |||||||||
| Weight | 32g | |||||||||
| BFL | 3.3mm | |||||||||
| MBF | 2.65mm | |||||||||
| Structure | 9G+IR | |||||||||
| IR Correction | Yes | |||||||||
| Waterproof and dustproof | IP69K | |||||||||
|
Operation |
Iris | Fixed | ||||||||
| Focus | / | |||||||||
| Zoom | / | |||||||||
| Operating temperature | -40℃～+85℃ | |||||||||
