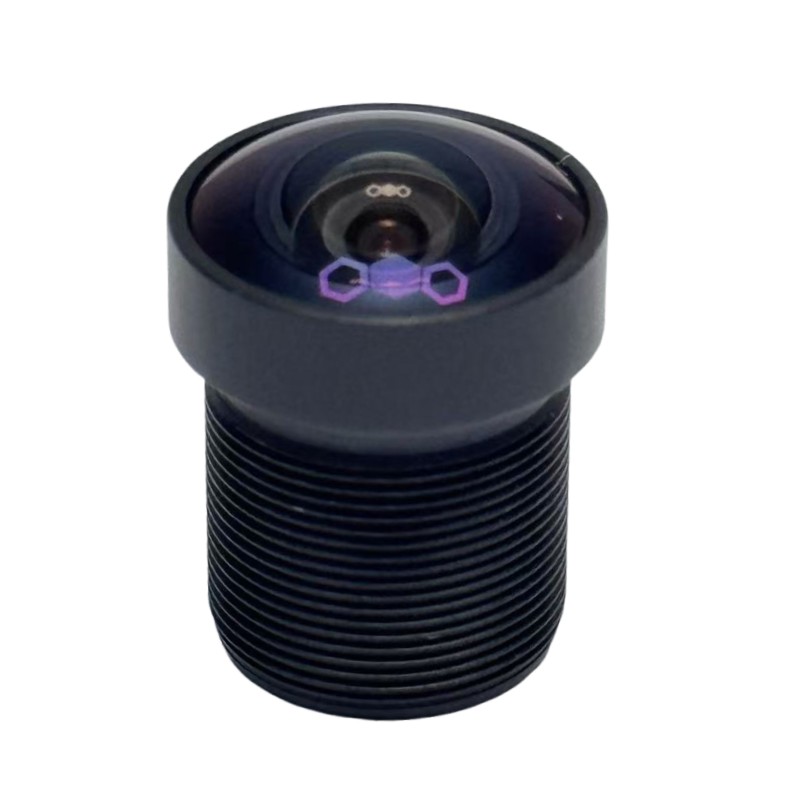

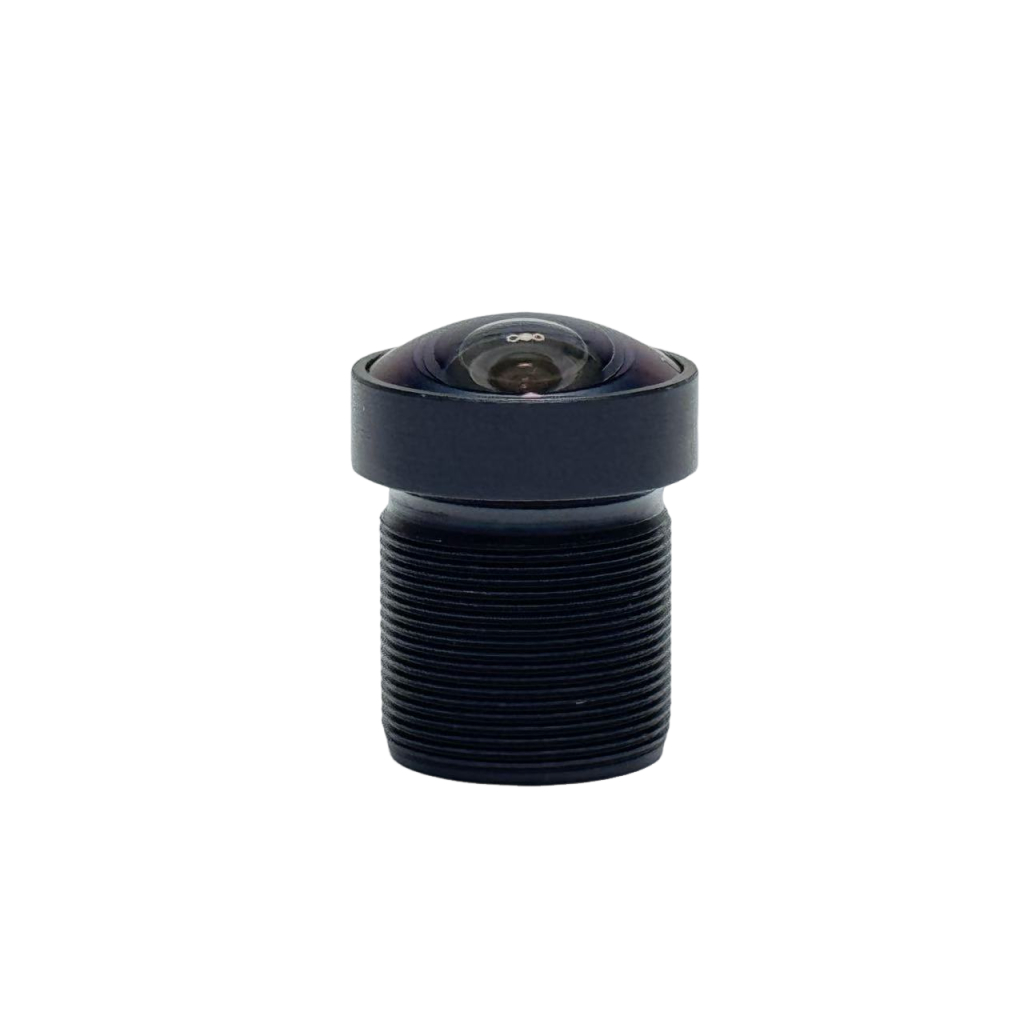

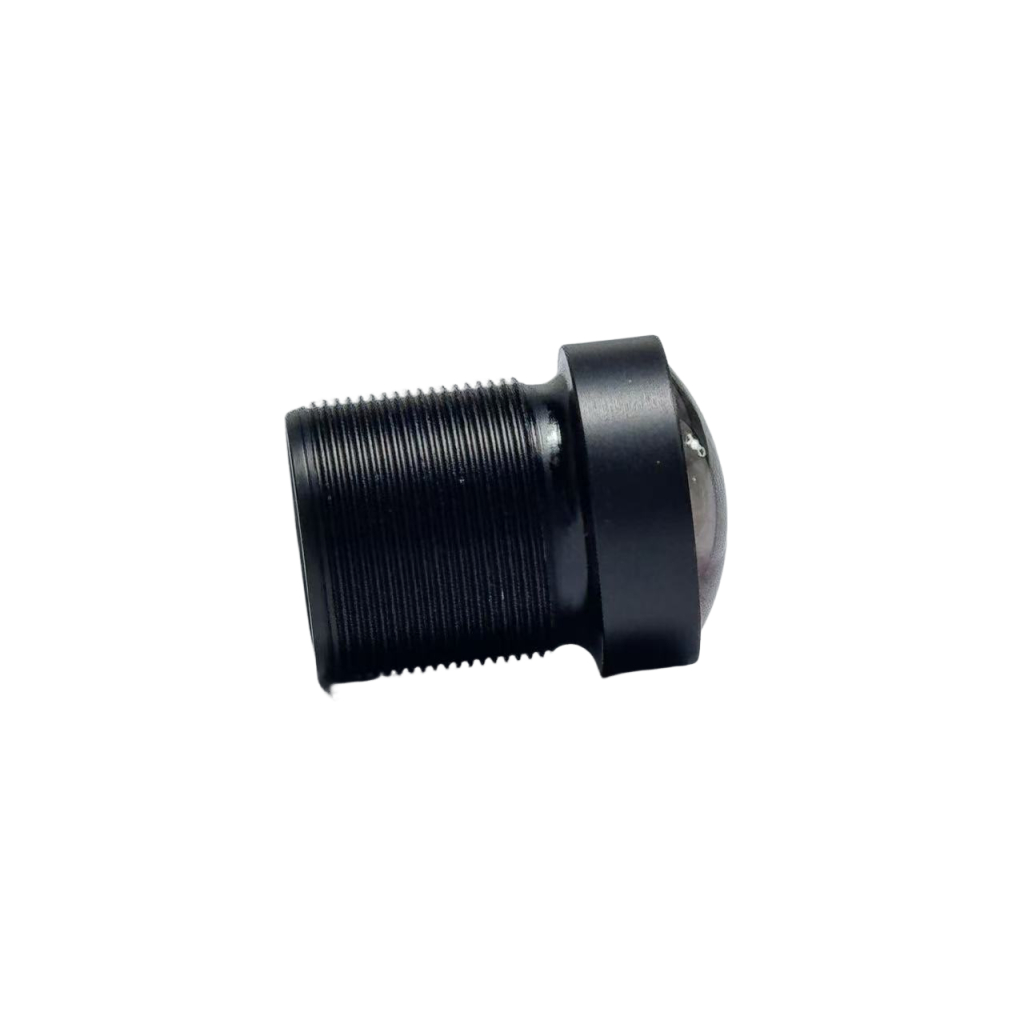

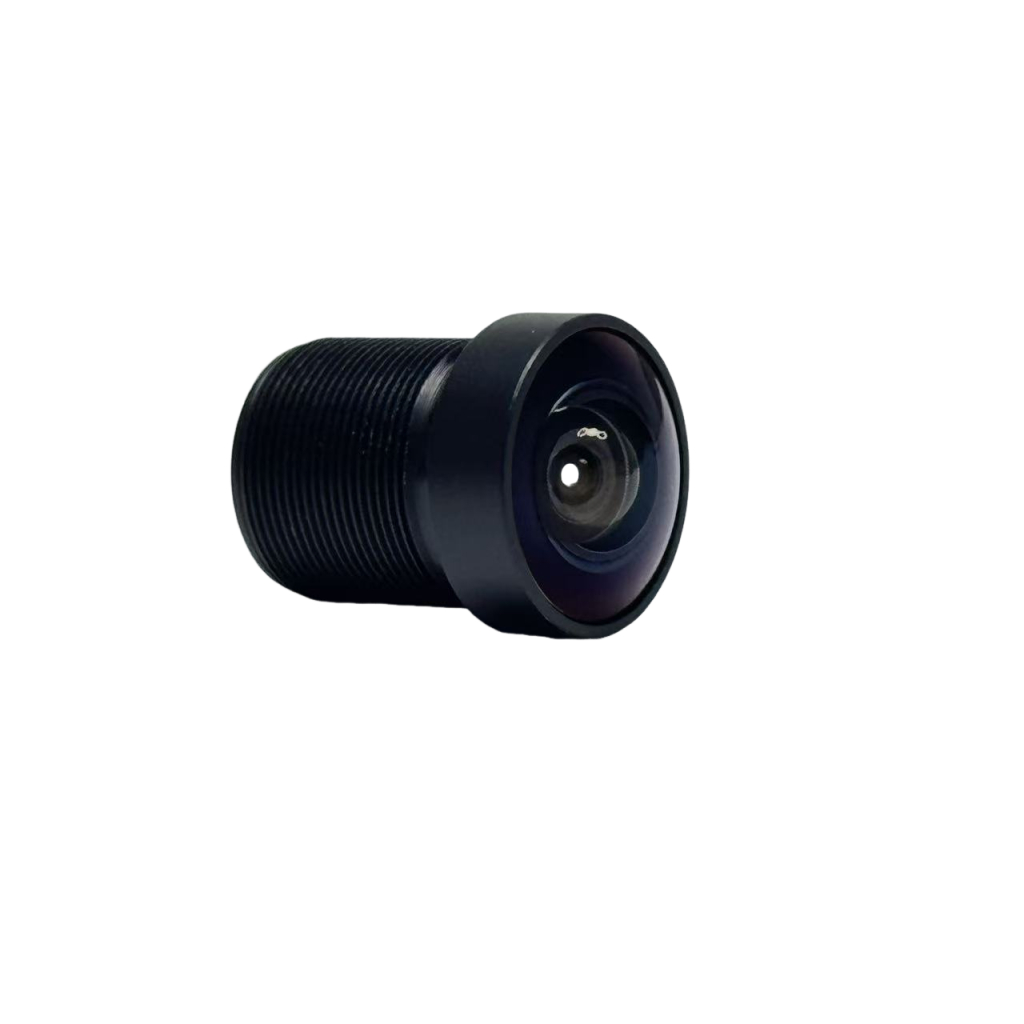

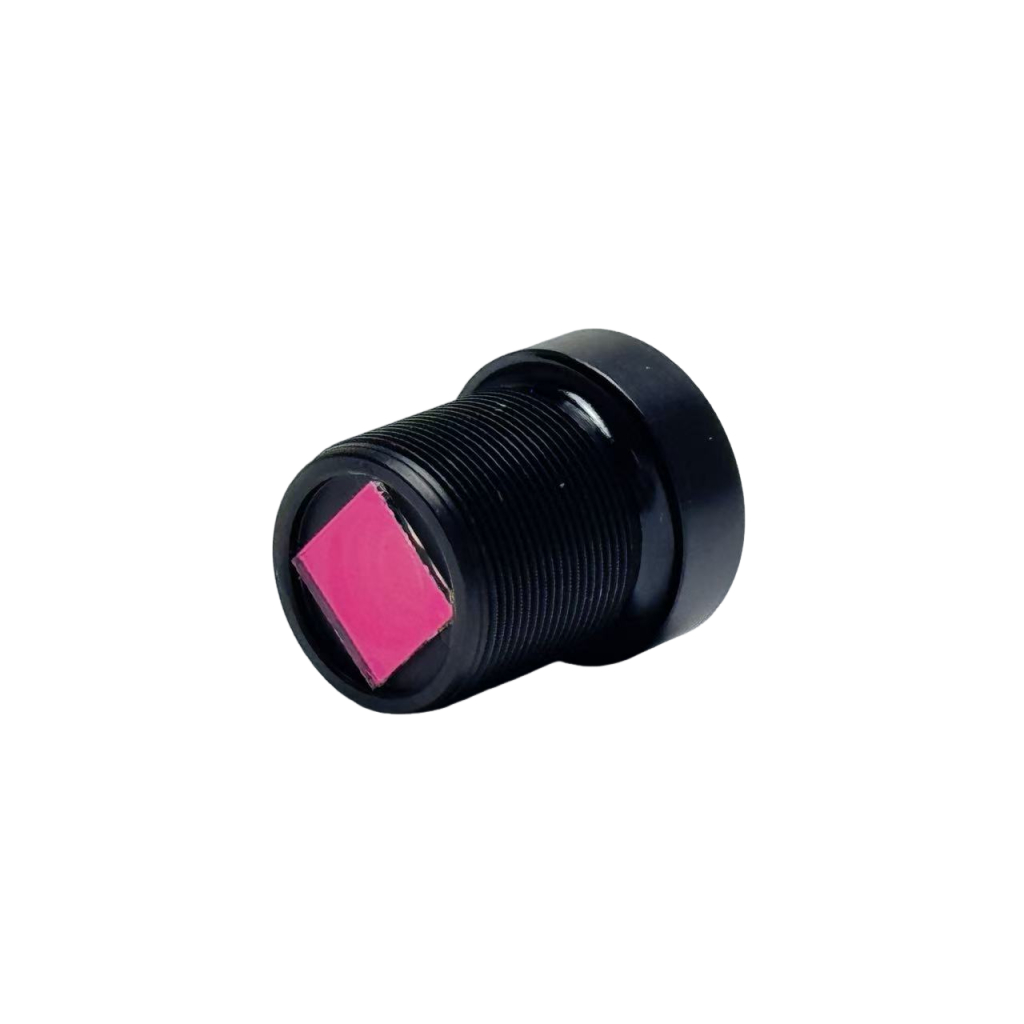

JY-M12-1.8FY-5MP-1/2.7
JY-M12-1.8FY-5MP-1/2.7
- Online customer service
- Factory guarantee
- Ontime delivery
| Parameter of Lens | |
| Model | JY-M12-1.8FY-5MP-1/2.7 |
| Resolution | 5 Megapixel |
| Format | 1/2.7 inch |
| Focal length | 1.8mm |
| Aperture | F2.2 |
| Mount | M12x0.5 |
| D | 170° |
| H | 150° |
| V | 92° |
| Optical Distortion | <-20% |
| Lens Construction | 6G |
| M.O.D. | 0.2m |
| TTL | 22.3mm |
| BFL | 5.7mm |
| MBL | 5.15mm |
| Weight | 6g |
| Dimension(mm) | φ14×17.10mm |
| IR Correction | Yes |
| Iris | Fixed |
| Focus | Manual |
| Zoom | Fixed |
| Operating temperature | -20℃～+80℃ |
