Home > Products > Board Lens - 5MP/8MP/12MP
View large

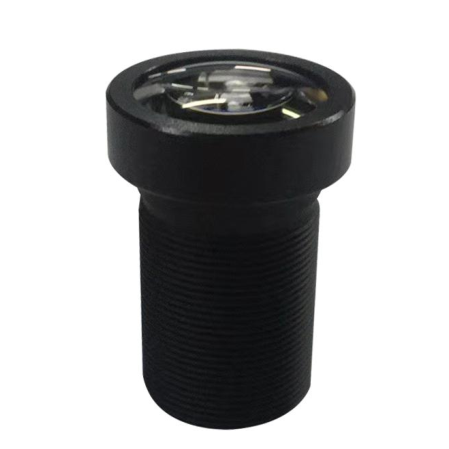

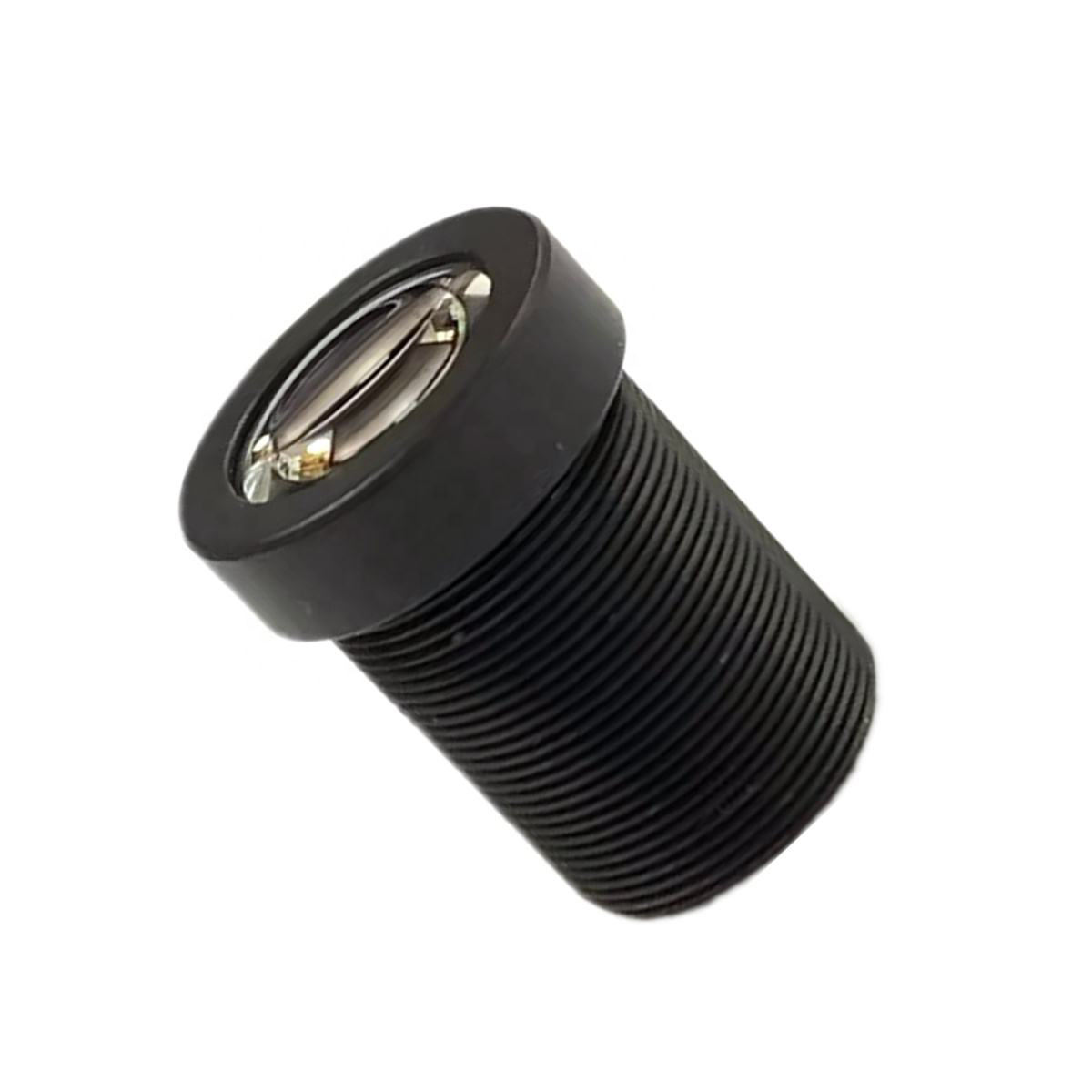

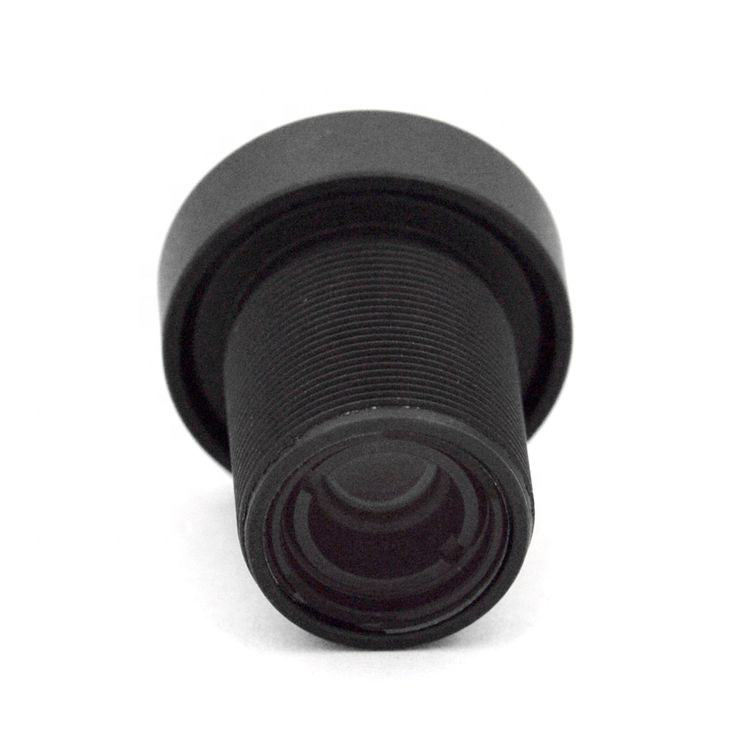

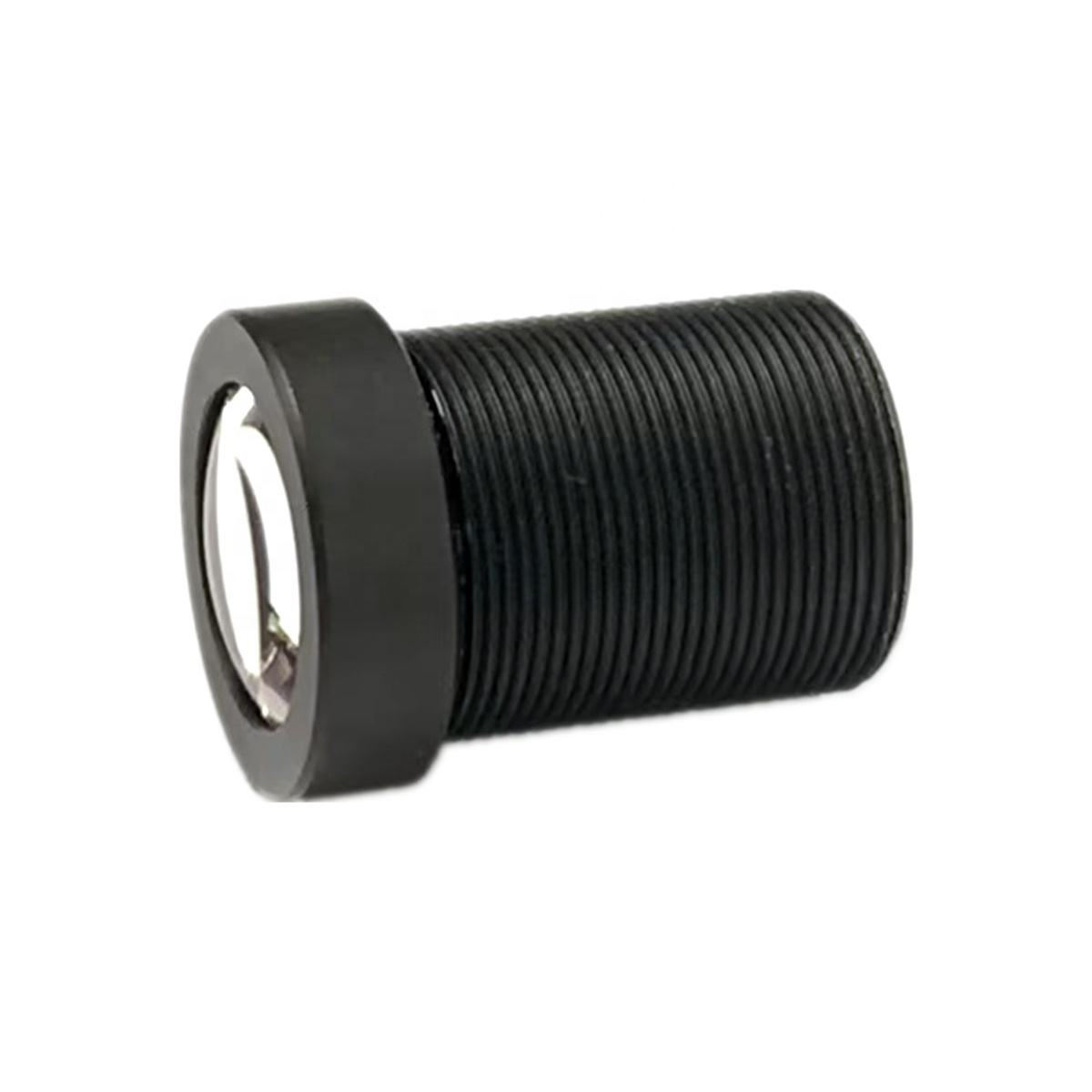

JY-M12-BD22-12MP-1/1.8

JY-M12-BD22-12MP-1/1.8

Get A Quote
  • Online customer service
  • Factory guarantee
  • Ontime delivery
Resolution
12 Megapixel
Sensor
1/1.8",IMX226
Image format
φ9.2
Focal length
21.6mm
Aperture
F2.8
Mount
M12x0.5

D×H×V(°)
"
°
Object space
distance 500mm
Object space
distance 800mm
D
213.2
341.5
H
174
279
V
129.7
208.1
Optical Distortion
-1.15%
CRA
≤7.97
Dimension(mm)
Aluminum alloy+6G
M.O.D.
0.3m
BFL
6.872mm
MBL
5.93mm
Weight
7.5g
Dimension(mm)
Φ15.6×22.29mm
IR Correction
NO

Operation
Iris
Fixed
Focus
Manual
Zoom
/
Operating temperature
-20℃～+80℃
