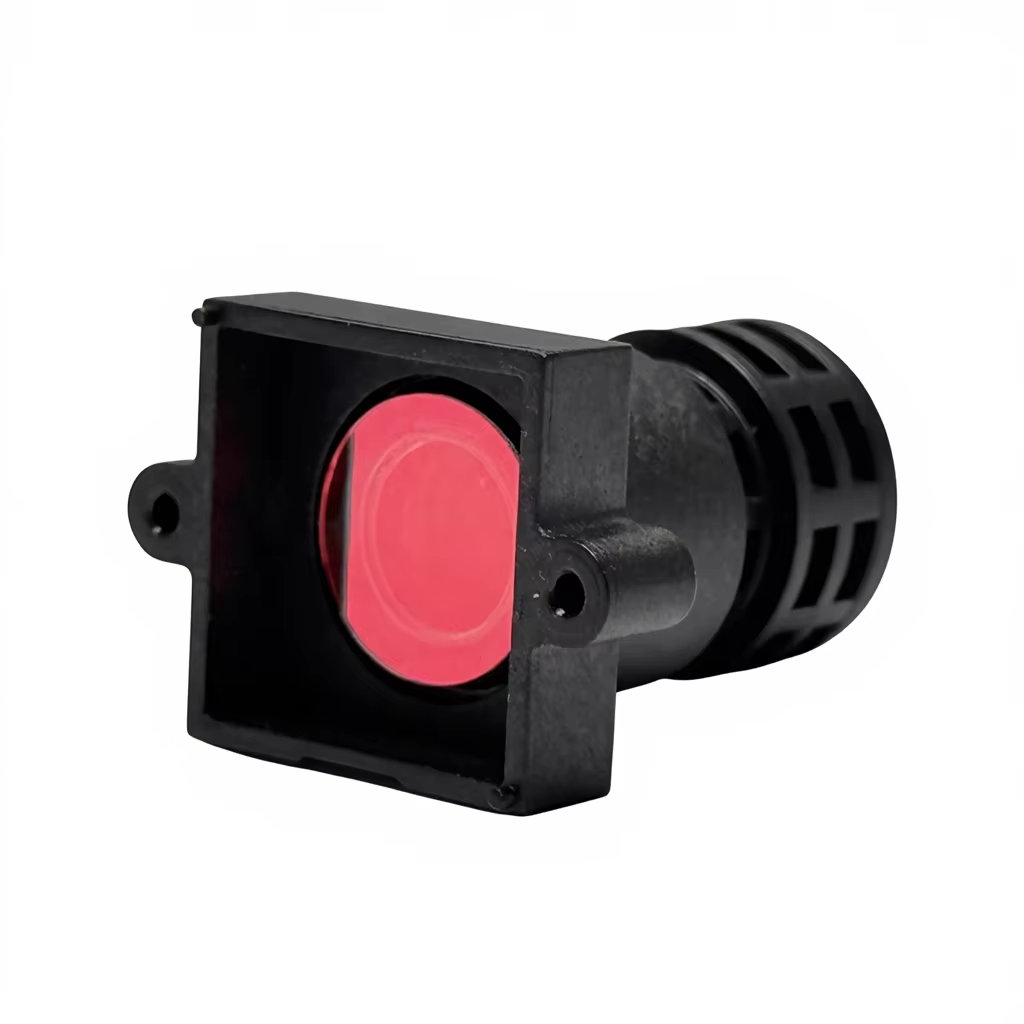

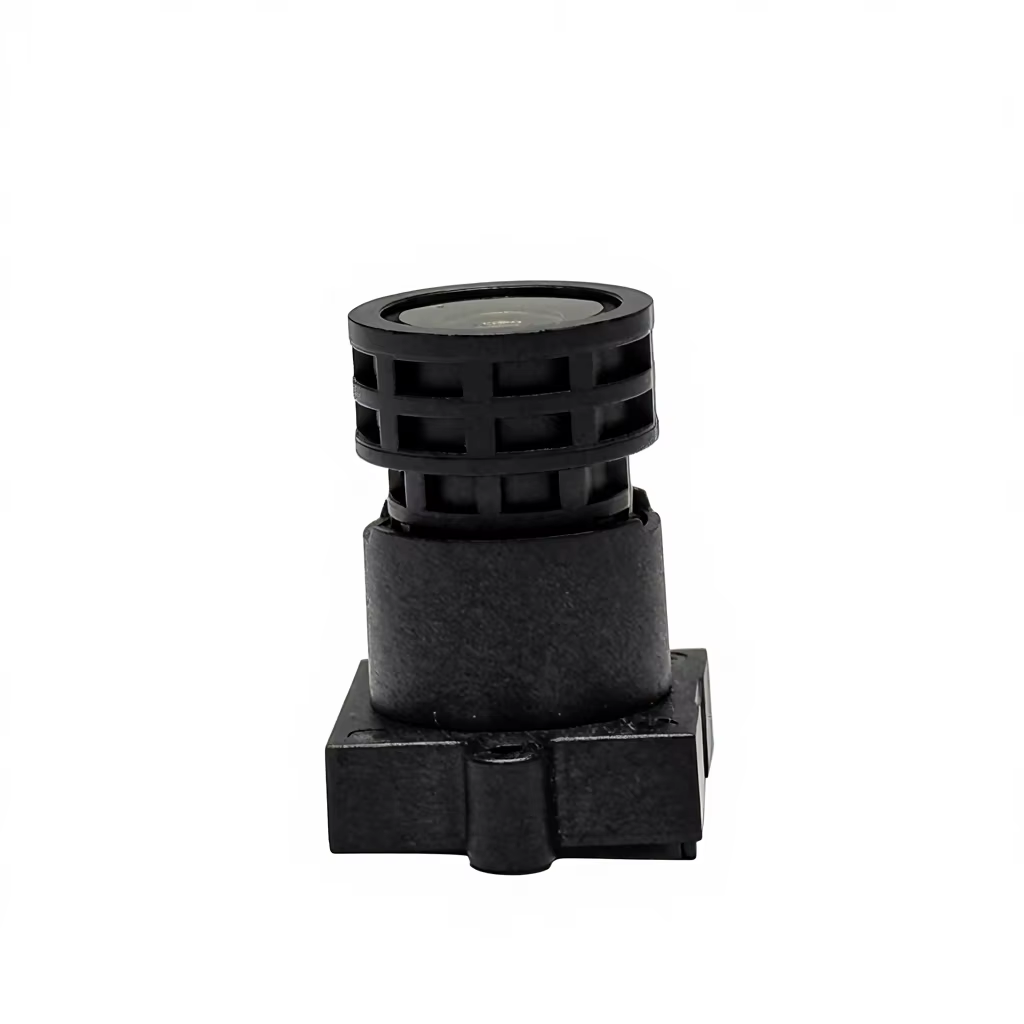

JY-M12-8BD-8MP-1/1.8F1.6
JY-M12-8BD-8MP-1/1.8F1.6
- Online customer service
- Factory guarantee
- Ontime delivery
| Resolution | 5 Megapixel | |||||||||
| Format | 1/1.8",1/2.3",1/2.5" | |||||||||
| Focal length | 7.7mm | |||||||||
| Aperture | F1.6 | |||||||||
| Mount | M12,M16 x0.5 | |||||||||
|
D×H×V(°) |
" ° |
1/1.8" | 1/2.3" | 1/2.5" | ||||||
| D | 65.4 | 57.6 | 53.2 | |||||||
| H | 57.2 | 49.5 | 46.5 | |||||||
| V | 32.4 | 28.6 | 26.3 | |||||||
| Optical Distortion | -10% | |||||||||
| Lens Construction | 7G IP | |||||||||
| M.O.D. | 0.3m | |||||||||
| TTL | ||||||||||
| BFL | 5.535mm(in air) | |||||||||
| MBL | 5.075mm(in air) | |||||||||
| Weight | 10.5g±1g | |||||||||
| Dimension(mm) | Φ14×19.54mm | |||||||||
| IR Correction | Yes | |||||||||
|
Operation |
Iris | Fixed | ||||||||
| Focus | Manual | |||||||||
| Zoom | / | |||||||||
| Operating temperature | -20℃～+80℃ | |||||||||
