Home > Products > Board Lens - 5MP/8MP/12MP
View large

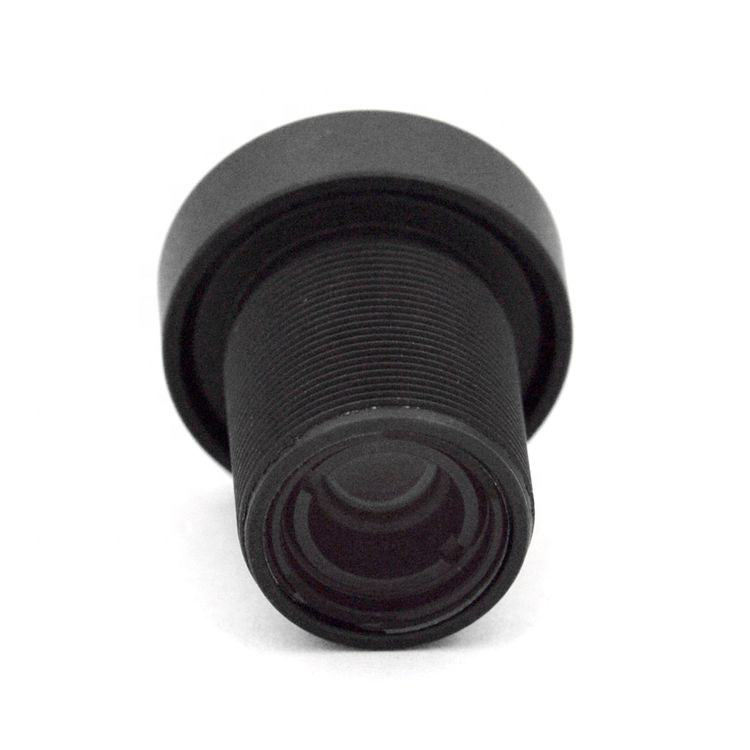

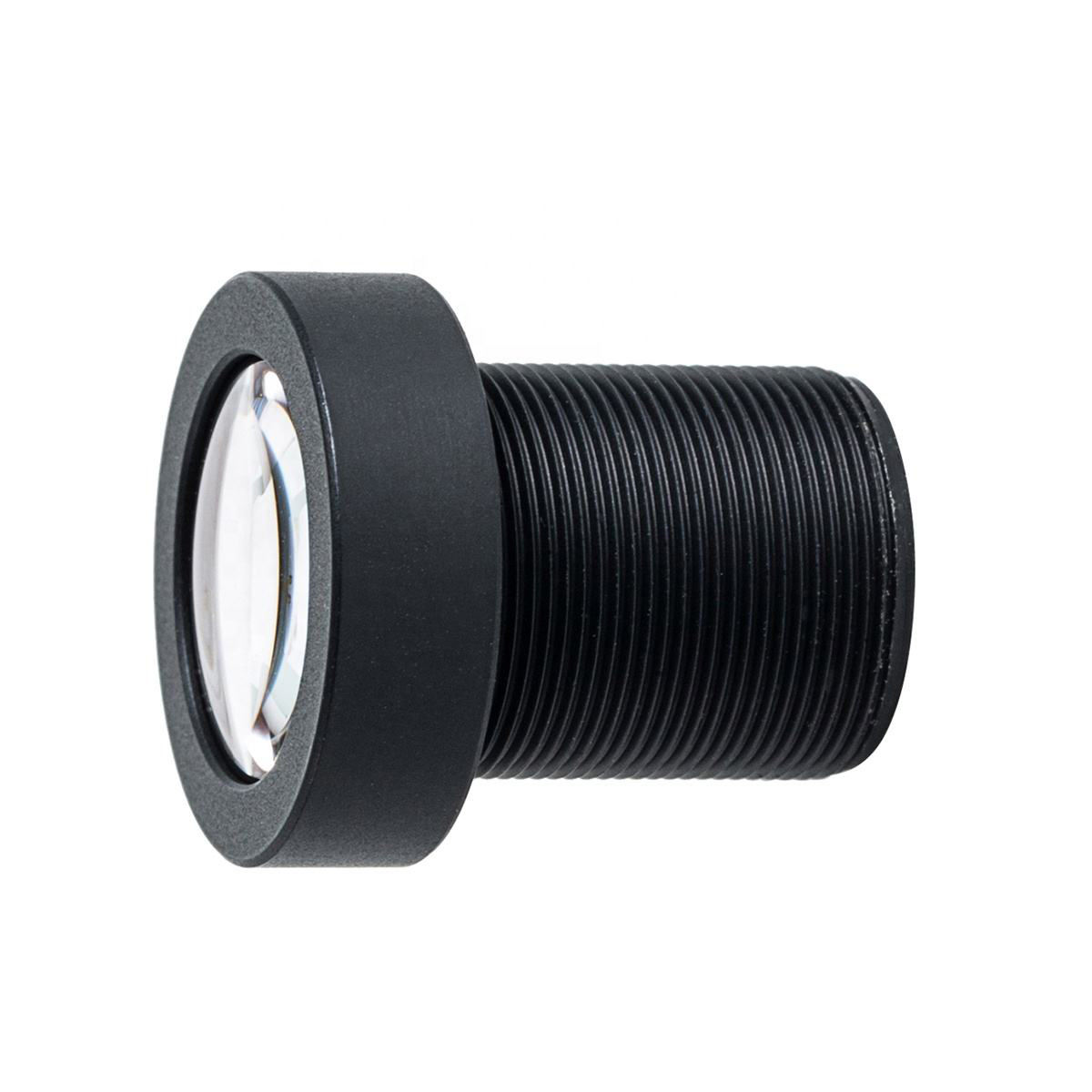

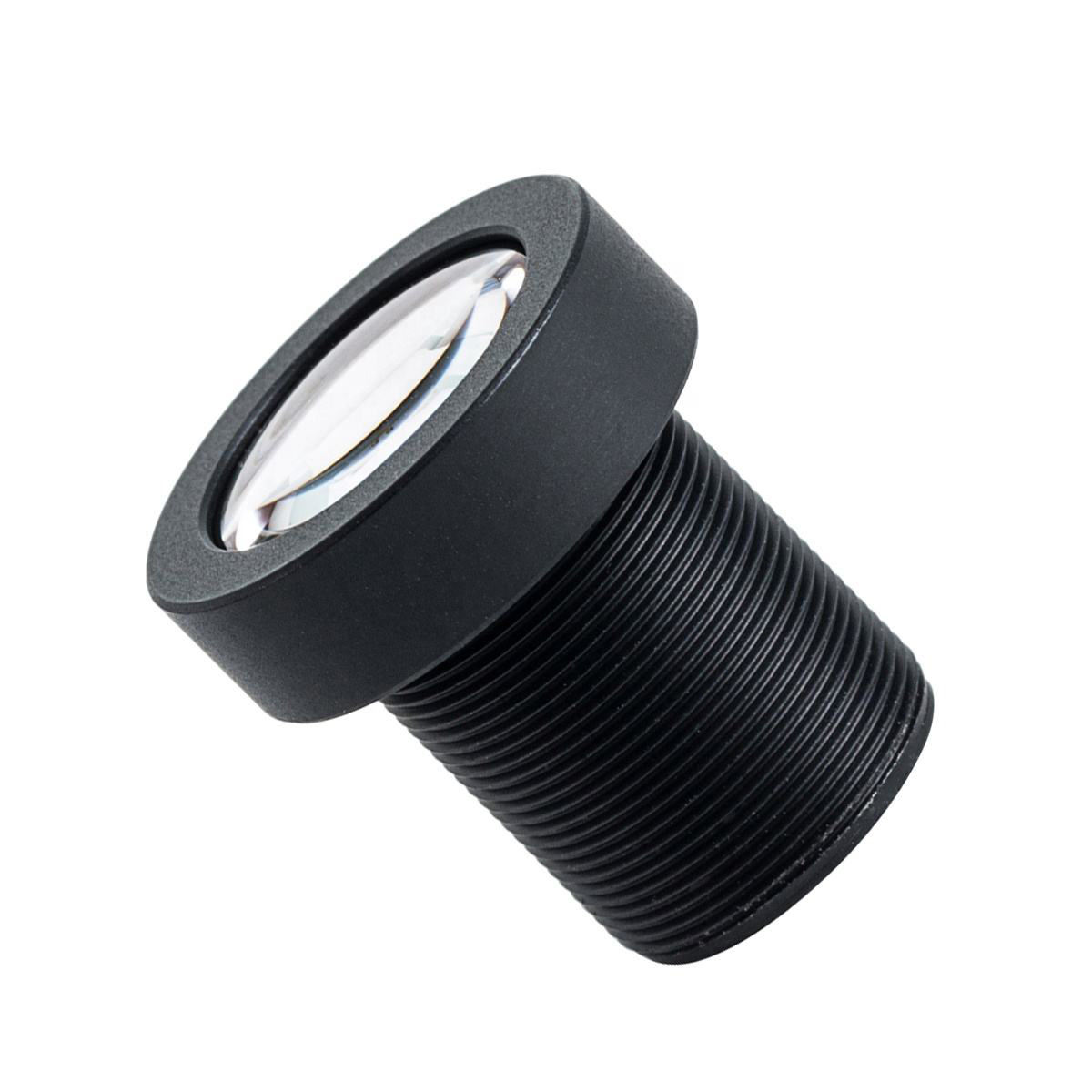

JY-M12-12-8MP-1/1.8F2.8

JY-M12-12-8MP-1/1.8F2.8

Get A Quote
  • Online customer service
  • Factory guarantee
  • Ontime delivery
Resolution
8 Megapixel
Format
1/2.5"
Focal length
12mm
Aperture
F2.0
Mount
M12x0.5

D×H×V(°)
"
°
1/1..8
1/2
1/2.3
D
41.4
36.9
H
36.4
29.8
V
20.9
22.4
Optical Distortion
2%
Lens Construction
8G
M.O.D.
0.15m
TTL
23.3mm (in air)
BFL
5.06mm (in air)
MBL
3.88mm (in air
Weight
7±2g
Dimension(mm)
Φ15×20.24mm
IR Correction
Yes

Operation
Iris
Fixed
Focus
Manual
Zoom
/
Operating temperature
-30℃～+80℃
