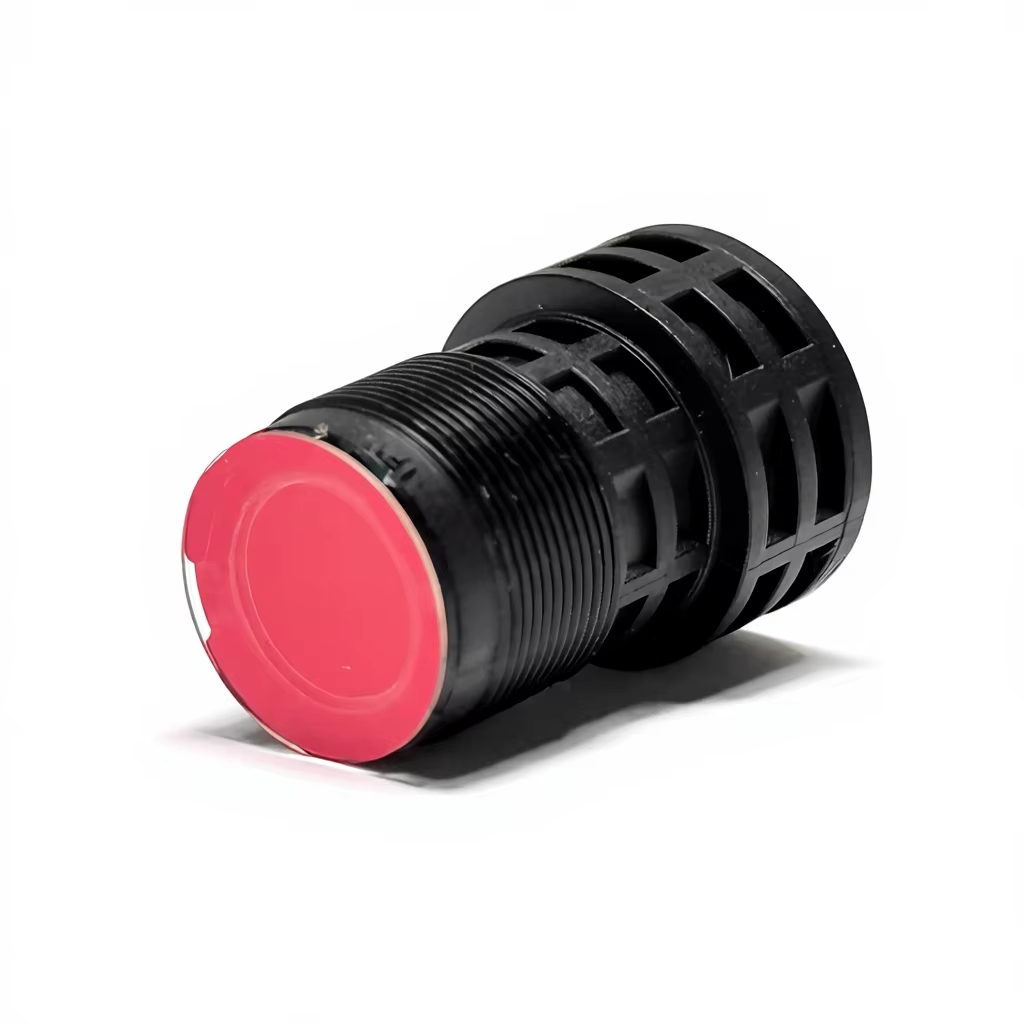

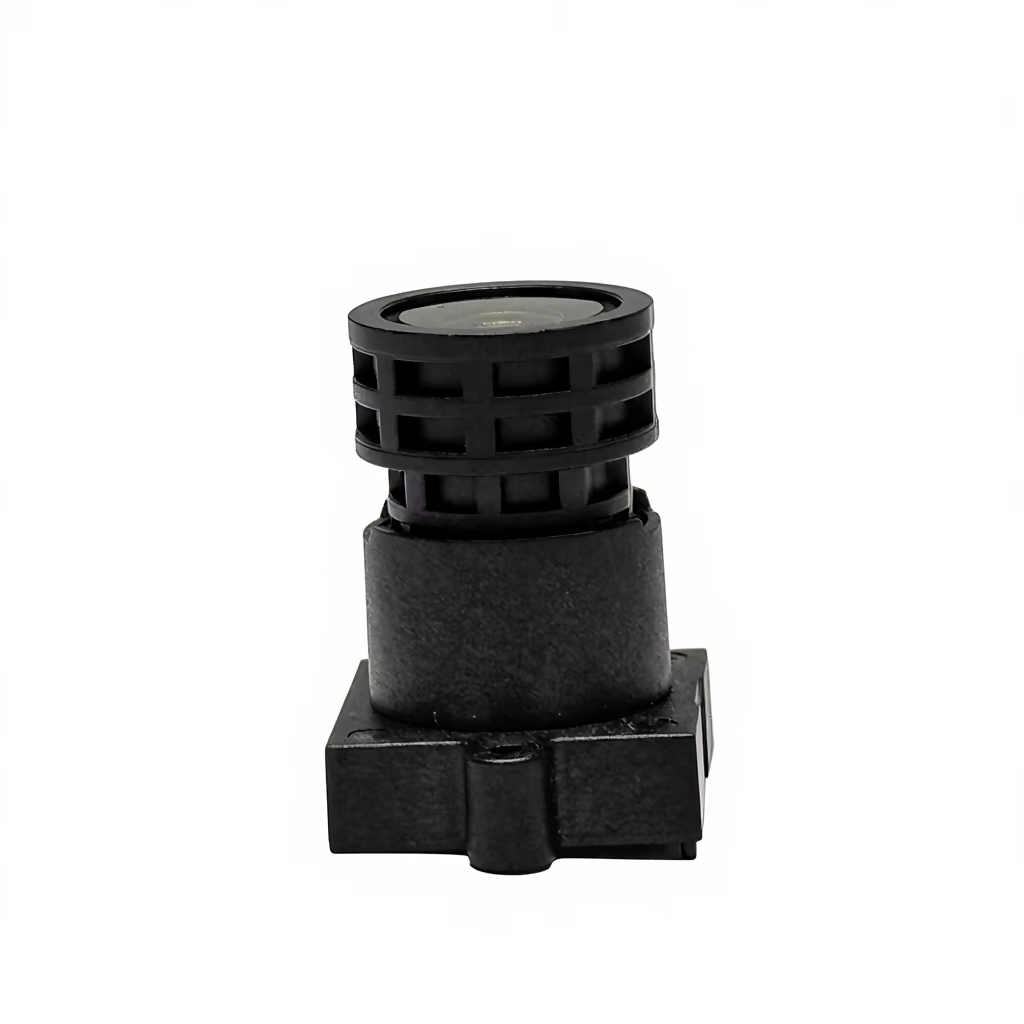

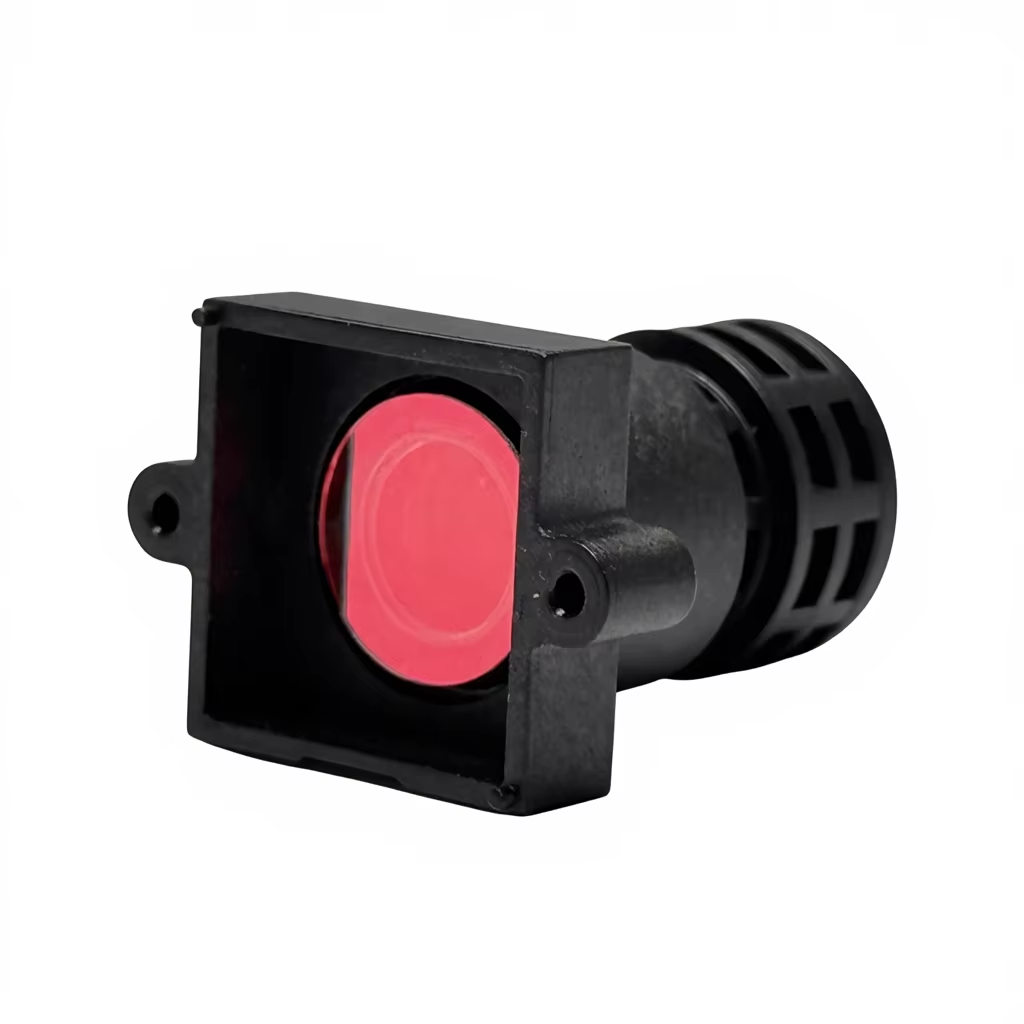

JY-M12-6.0BD-5MP-1/1.8F1.6
JY-M12-6.0BD-5MP-1/1.8F1.6
- Online customer service
- Factory guarantee
- Ontime delivery
| Resolution | 5 Megapixel | |||||||||
| Format | 1/1.8" | |||||||||
| Focal length | 6.0mm | |||||||||
| Aperture | F1.6 | |||||||||
| Mount | M12x0.5 | |||||||||
|
D×H×V(°) |
" ° |
1/1.8" | 1/2" | 1/2.5" | ||||||
| D | 111 | |||||||||
| H | 92.3 | |||||||||
| V | 48.5 | |||||||||
| Optical Distortion | -42% | |||||||||
| Lens Construction | 7G IP | |||||||||
| M.O.D. | 0.3m | |||||||||
| TTL | ||||||||||
| BFL | 5.208mm(in air) | |||||||||
| MBL | 5.023mm(in air) | |||||||||
| Weight | 5.8g | |||||||||

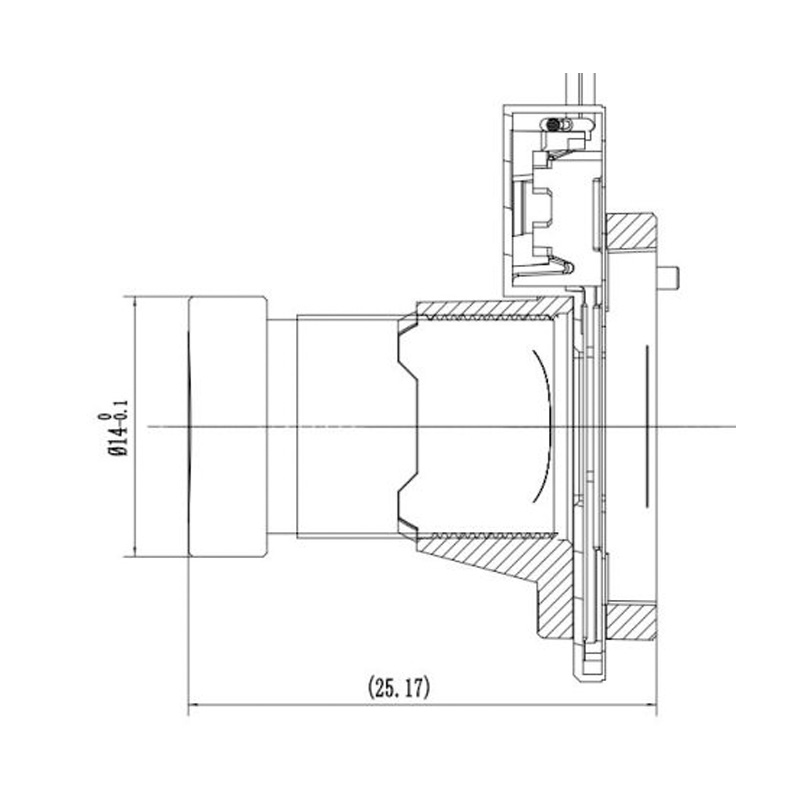

| Dimension(mm) | Φ14*19.65 | |||||||||
| IR Correction | Yes | |||||||||
|
Operation |
Iris | Fixed | ||||||||
| Focus | Manual | |||||||||
| Zoom | Fixed | |||||||||
| Operating temperature | -20℃～+80℃ | |||||||||
