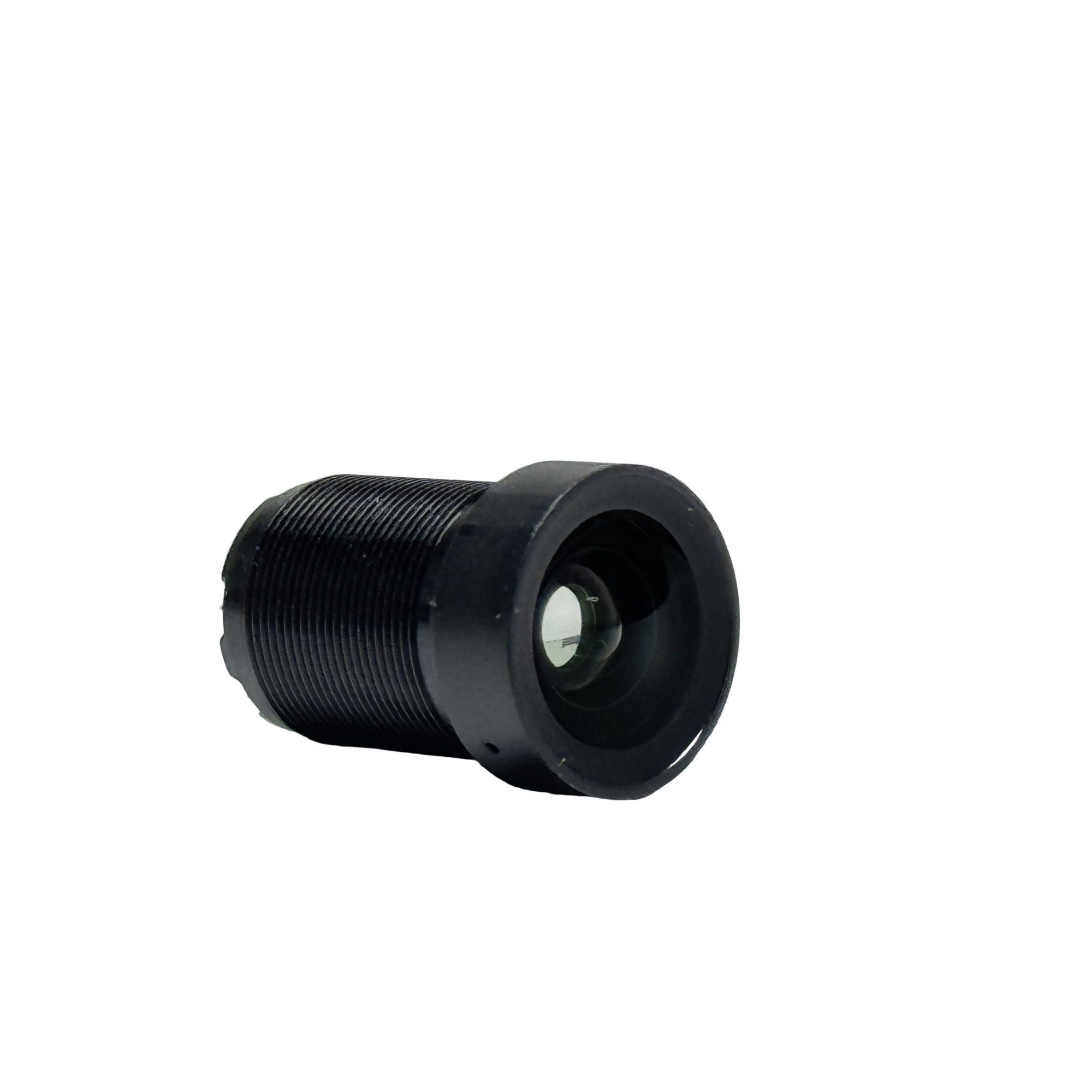

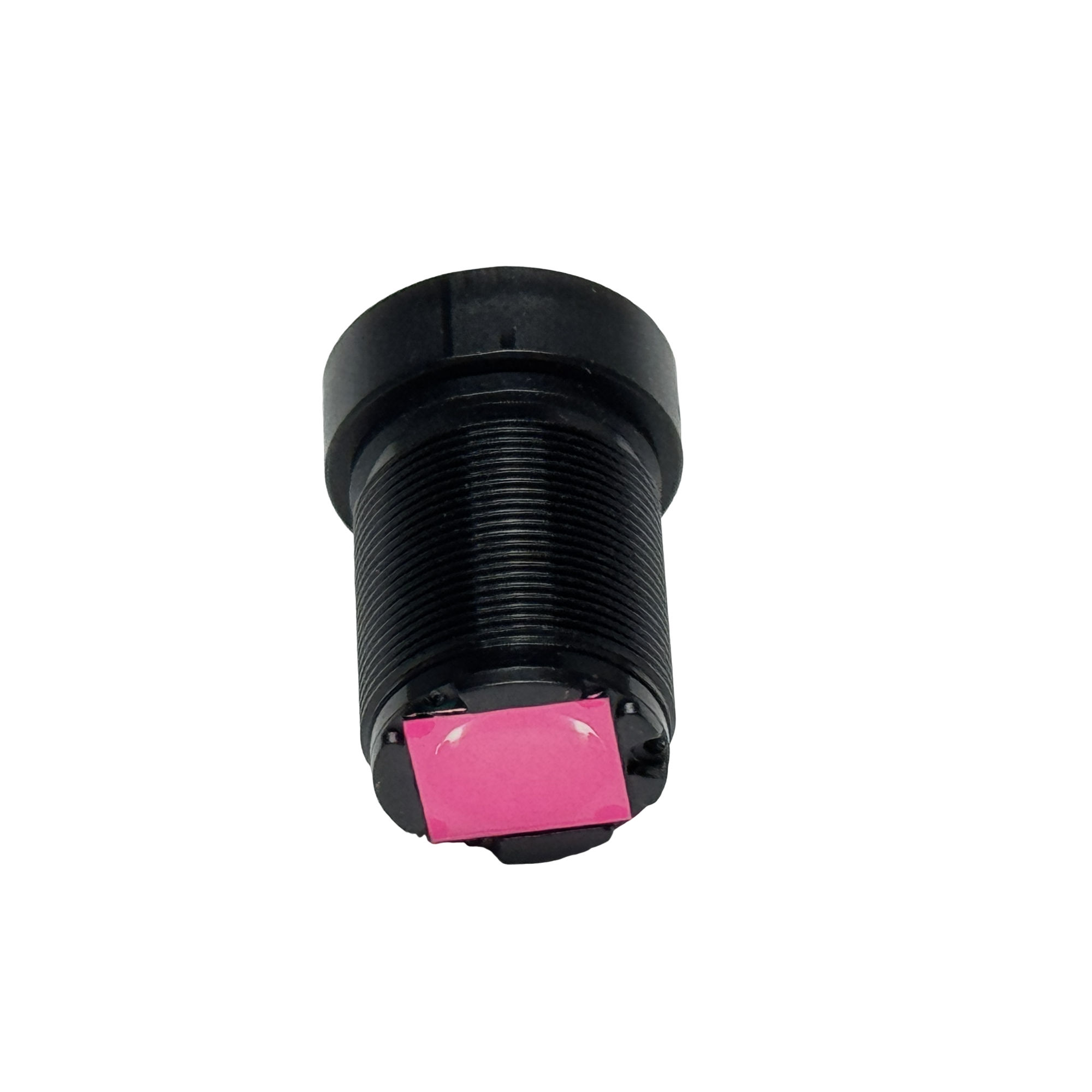

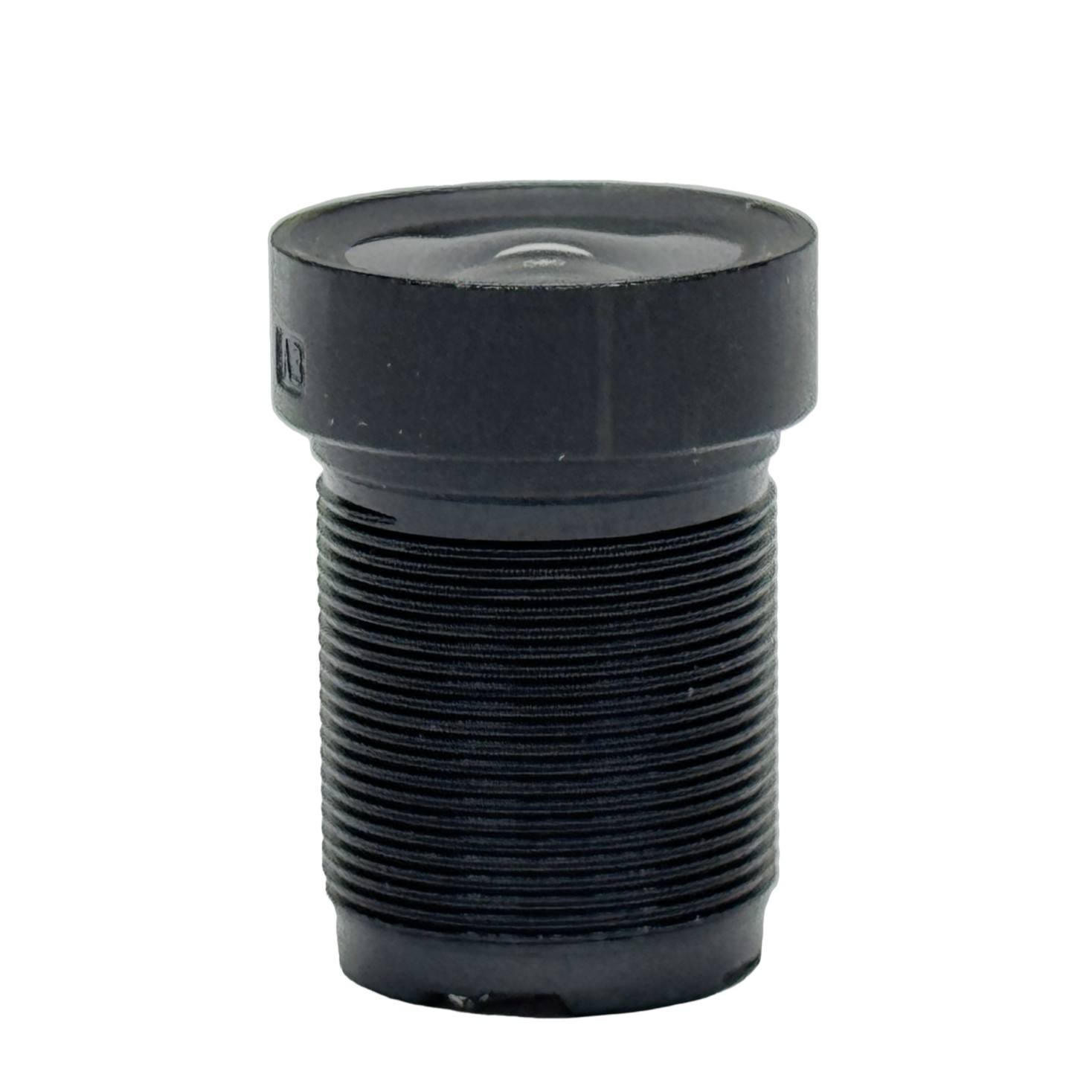

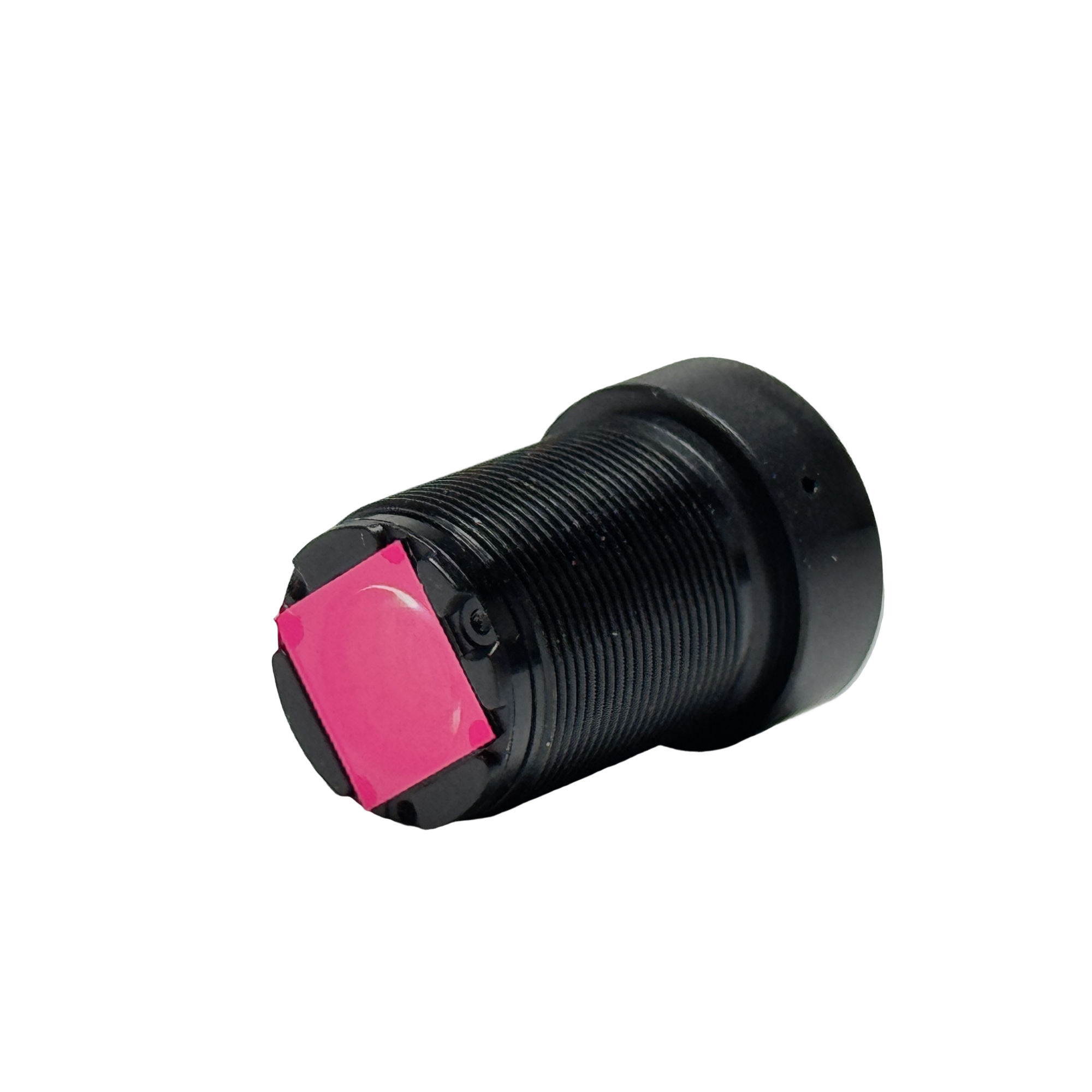

JY-ST4M12-6MP-1/2.7F1.0
JY-ST4M12-6MP-1/2.7F1.0
- Online customer service
- Factory guarantee
- Ontime delivery
| Sensor | 1/2.7" | ||
| Image Fromat (HxVxD) | 5.76×3.24×6.608 mm | ||
| Image Circle | ∅7.0 mm | ||
| EFL | 4mm±10% | ||
| F No. | 1.0±10% | ||
| F.O.V |
1/2.7" SC530AI |
D. H. V. |
105.1° ±3@∅6.608 mm 89.4° ±2@∅5.76 mm 48° ±1.5 @∅3.24 mm |
|
1/2.9" GC2053 |
D. H. V. |
96.7° ±3@∅6.168 mm 82.5° ±2@∅5.376 mm 44.9° ±1.5 @∅3.024 mm |
|
|
1/3" 0V4689 |
D. H. V. |
96.9° ±3@∅6.176 mm 82.5° ±2@∅5.376 mm 45.1° ±1.5 @∅3.04 mm |
|
| Mechanical Back Focal Length | 3.09 mm(Including 0.3 Filter+0.4CG) | ||
|
Lens Effective Diameter |
Front | ∅11.0 | |
| Back | ∆6.74 | ||
| Lens Construction | 7 Elements | ||
| Opt. Distortion | -35% | ||
| Resolution | 2~6MP | ||
| Relative Illumination | >40% | ||
| Iris | Fixed | ||
|
Max Chief Ray Angle |
≤14° | ||
| M.O.D | 0.75 m | ||
| Mount | M12-P0.5 | ||
| TTL | 22.45mm(Include 0.3Filter+0.4C.G) | ||
| Dimension (Φ×L) | ∅14×19.36 mm | ||
| IR Filter | 650nm | ||
