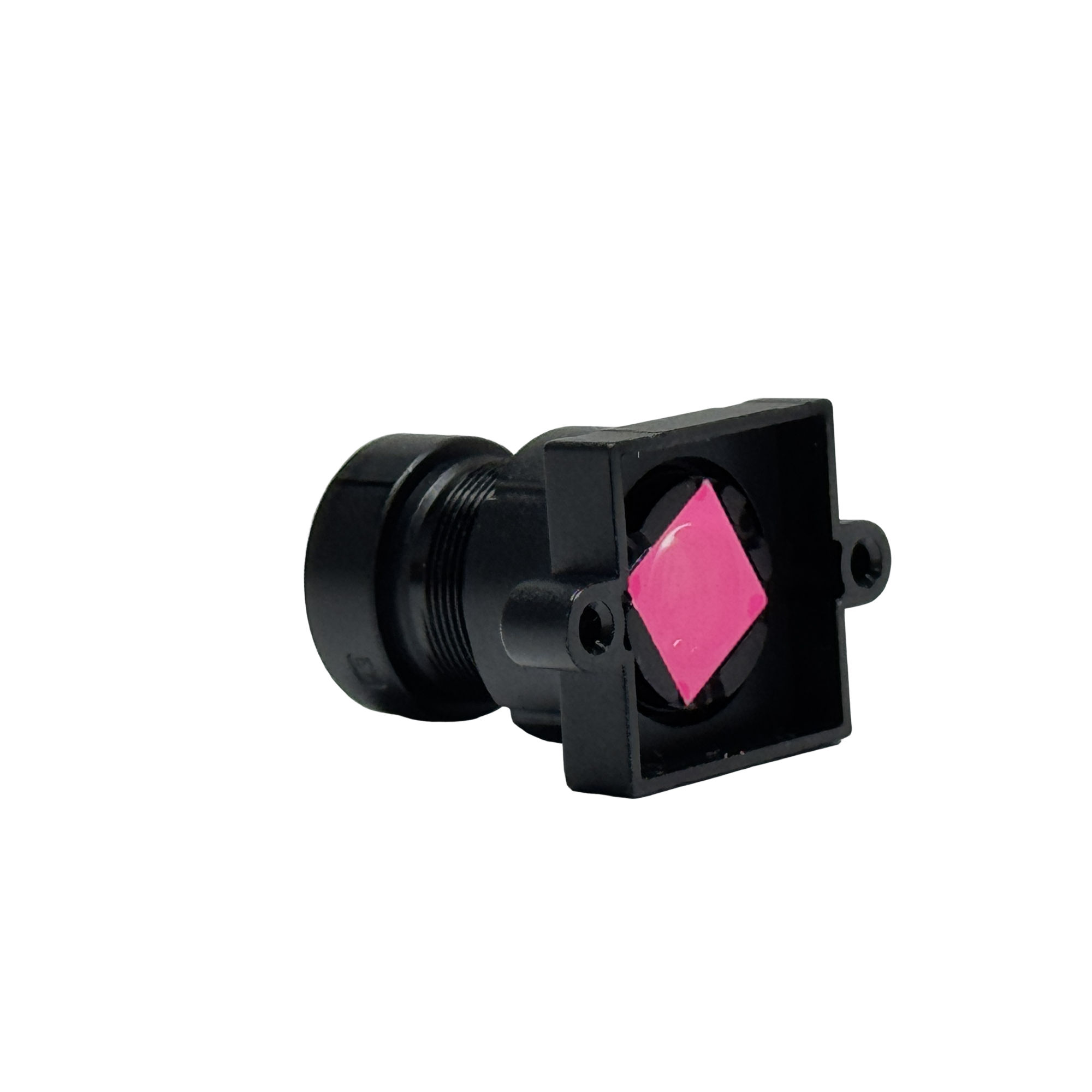

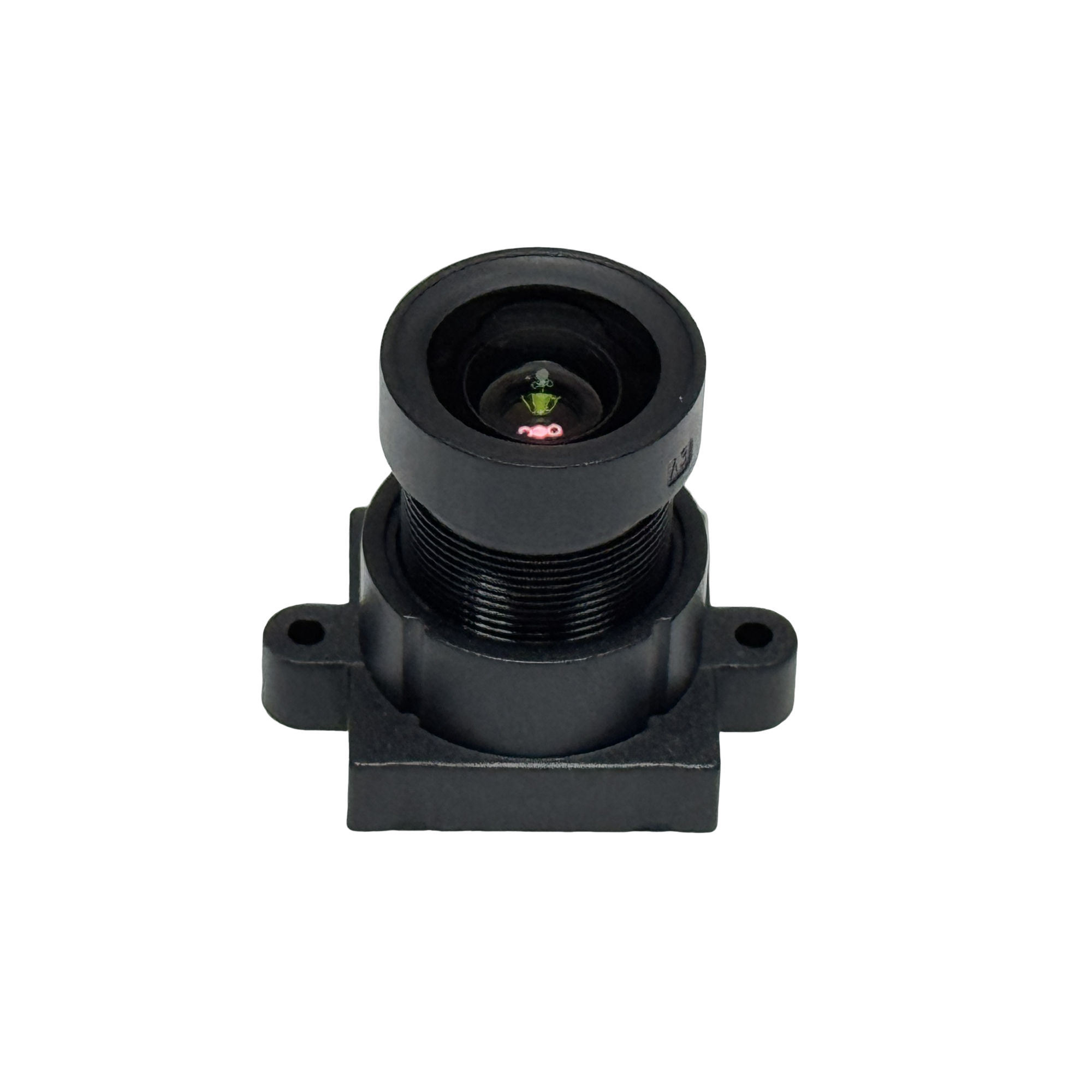

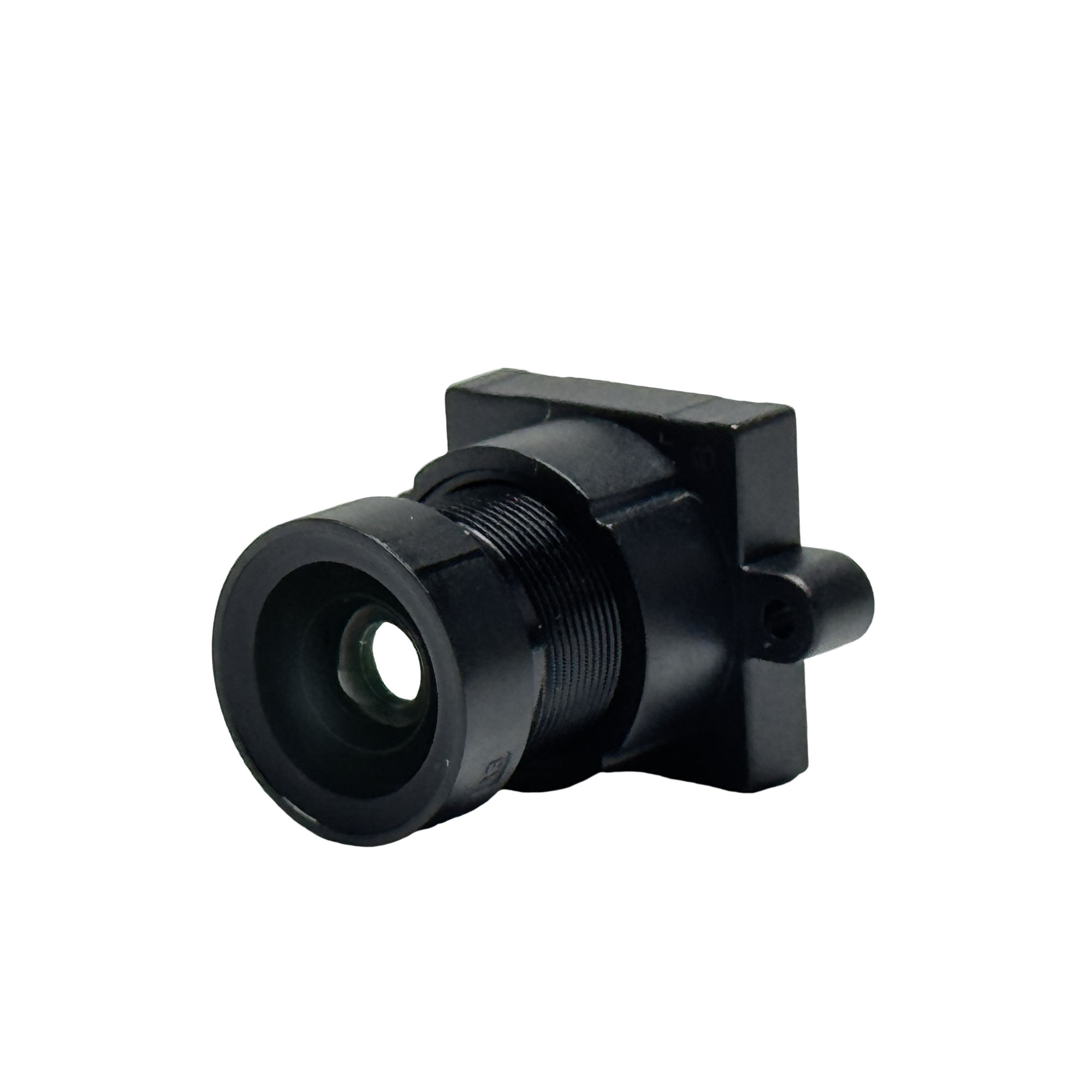

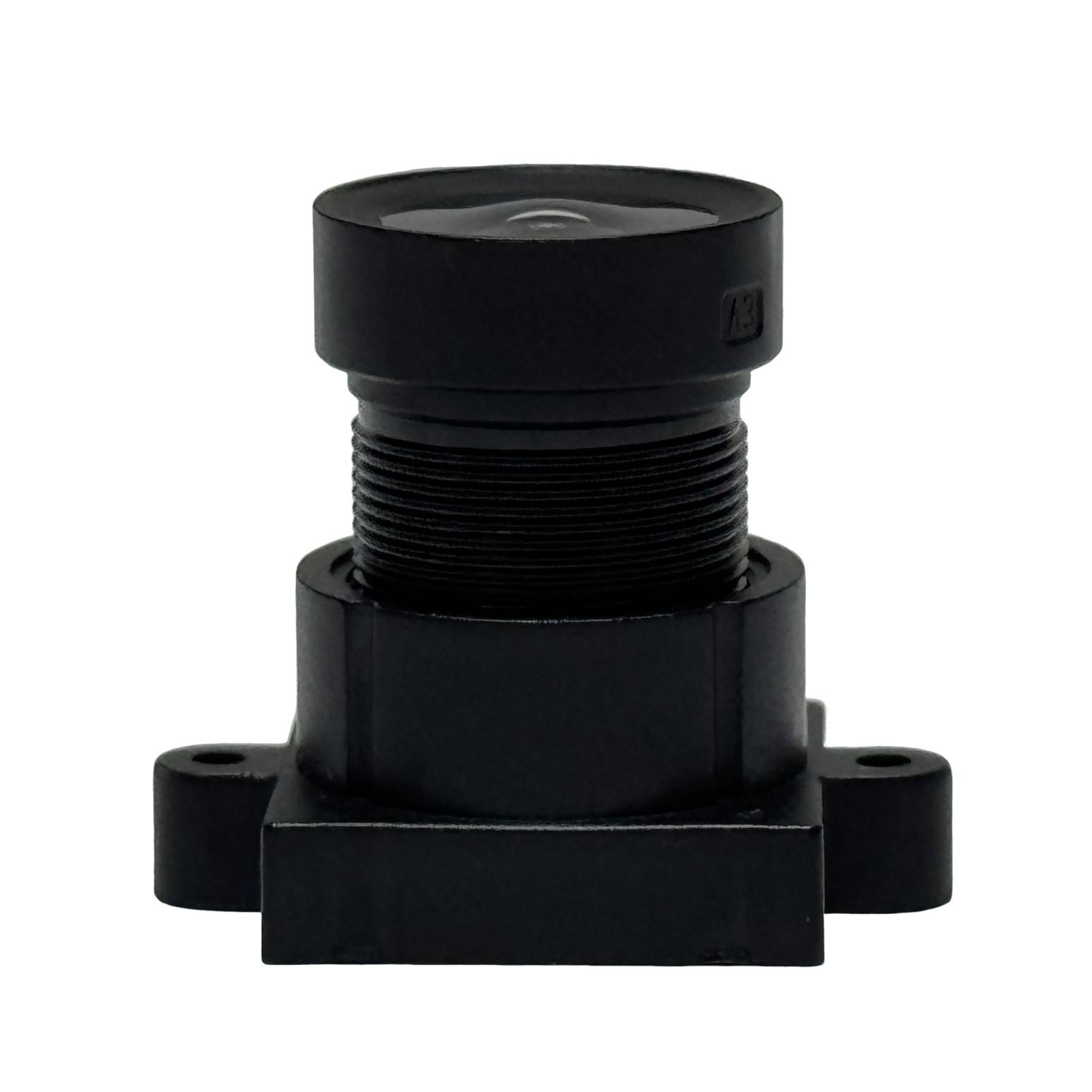

JY-ST2.8M12-6MP-1/2.7F1.0
JY-ST2.8M12-6MP-1/2.7F1.0
- Online customer service
- Factory guarantee
- Ontime delivery
| Sensor | 1/2.7" | ||
| Image Fromat (HxVxD) | 5.76×3.24×6.608 mm | ||
| Image Circle | ∅7.0 mm | ||
| EFL | 2.8mm±10% | ||
| F No. | 1.0±10% | ||
| F.O.V |
1/2.7" SC530AI |
D. H. V. |
131° ±3@∅6.608 mm 109° ±2@∅5.76 mm 56.8° ±1.5 @∅3.24 mm |
|
1/2.9" GC2053 |
D. H. V. |
119.3° ±3@∅6.168 mm 100° ±2@∅5.376 mm 52.8° ±1.5 @∅3.024 mm |
|
|
1/3" 0V4689 |
D. H. V. |
119.4° ±3@∅6.176 mm 100° ±2@∅5.376 mm 53.1° ±1.5 @∅3.04 mm |
|
| Mechanical Back Focal Length | 3.25 mm(Including 0.21 Filter+0.45CG) | ||
|
Lens Effective Diameter |
Front | ∅11.3 | |
| Back | ∅6.8 | ||
| Lens Construction | 7 Elements | ||
| Opt. Distortion | -55.5% | ||
| Resolution | 6MP | ||
| Relative Illumination | >40% | ||
| Iris | Fixed | ||
|
Max Chief Ray Angle |
≤16° | ||
| M.O.D | 0.1 m | ||
| Mount | M12-P0.5 | ||
| TTL | 22.27mm(Include 0.21Filter+0.45C.G) | ||
| Dimension (Φ×L) | ∅15×19.02 mm | ||
