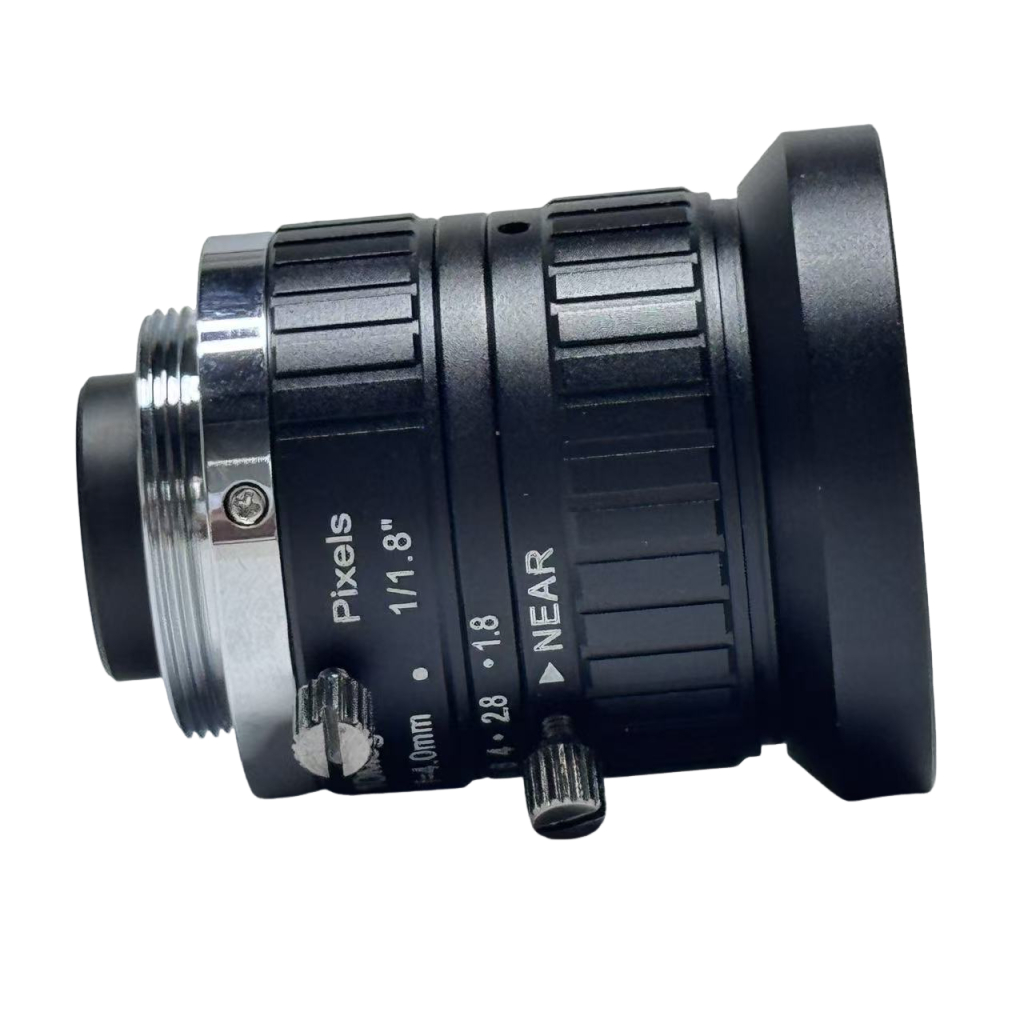

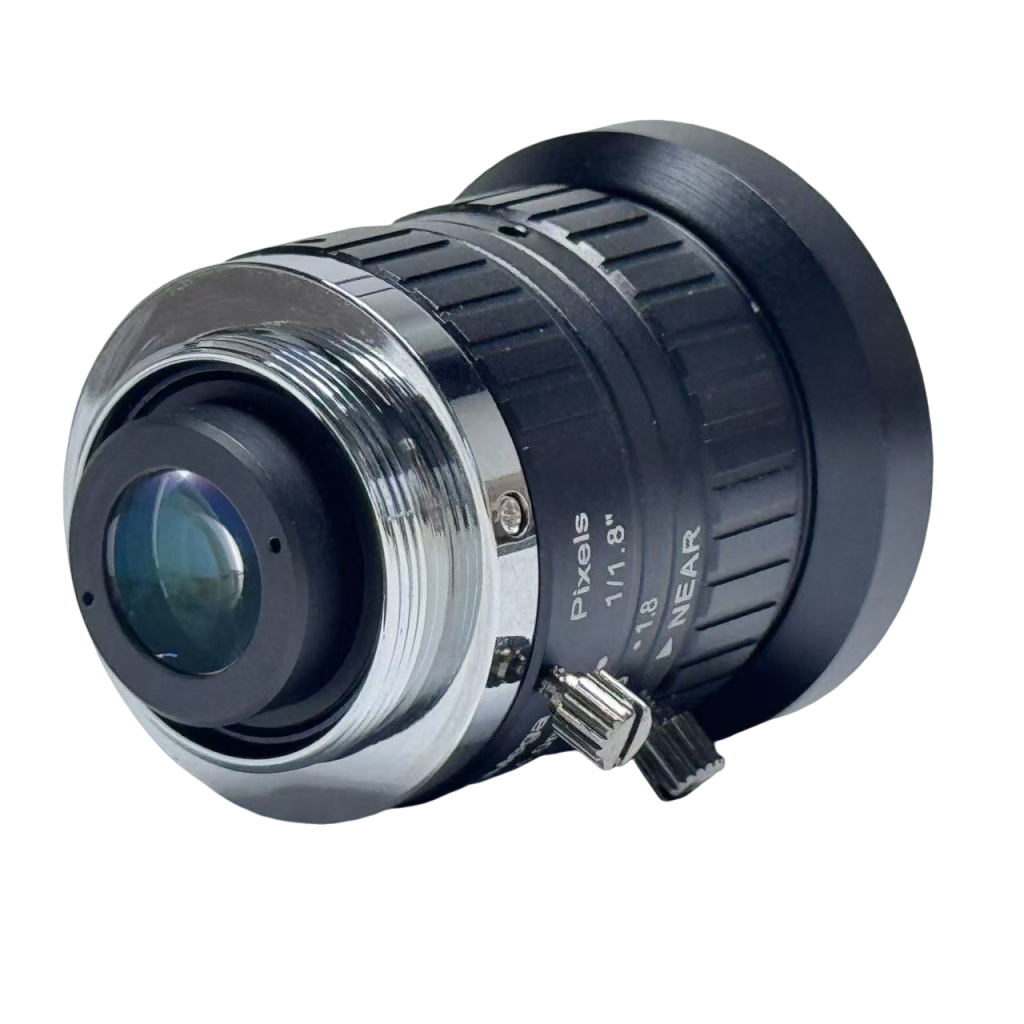

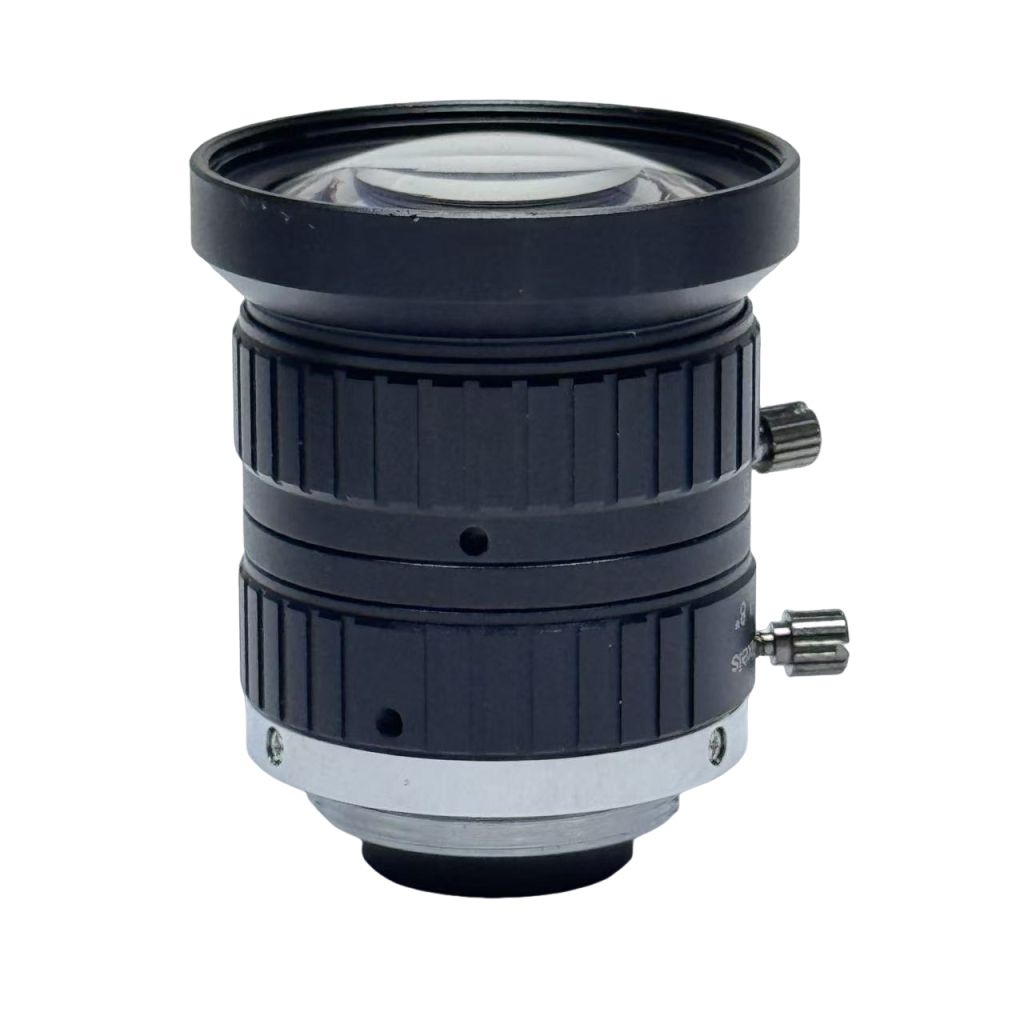

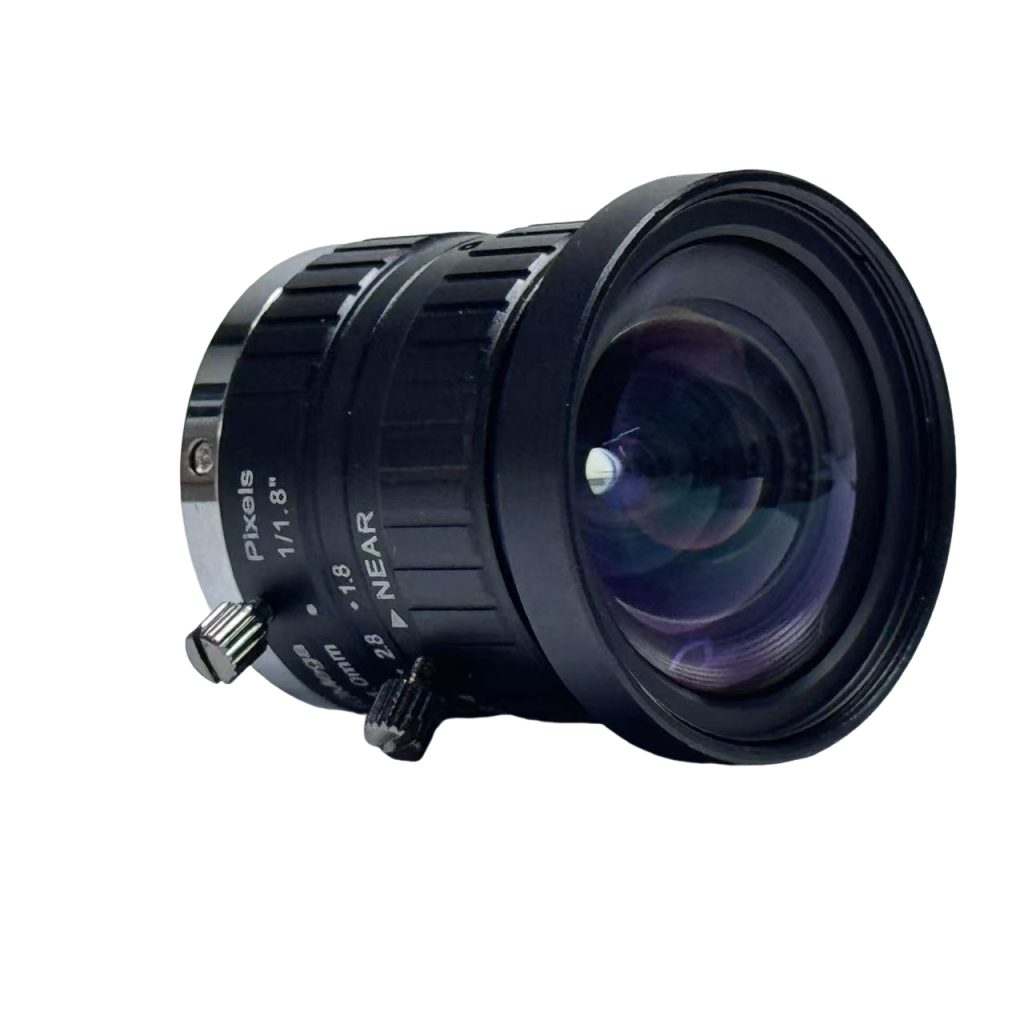

JY-C-4M-10MP-1/1.8F1.8
JY-C-4M-10MP-1/1.8F1.8
- Online customer service
- Factory guarantee
- Ontime delivery
| Specification | Details |
| Resolution | 10 MegaPixel |
| Image format | 1/1.8" (Φ9) 7.2x5.4 |
| Focal length | 4.0mm |
| Aperture range (D/F") | 1:1.8 |
| Mount | C-Mount |
| Field of View (D/H/V) | 1/1.8" target: 103.2°*76.8° |
| 1/2" target: 91.3°*68.05° | |
| 1/3" target: 68.05°*51.40° | |
| Distortion | < -1.5% (M37*0.75） |
| Back Focal Length | 17.53mm |
| Iris type | Manual / Locked (with lock) |
| Minimum Object Distance (M.O.D.) | 0.10m |
| Dimension | Φ39*38.0mm |
| Weight | 99.8g |
| Structure | Aluminum alloy + 12G |
