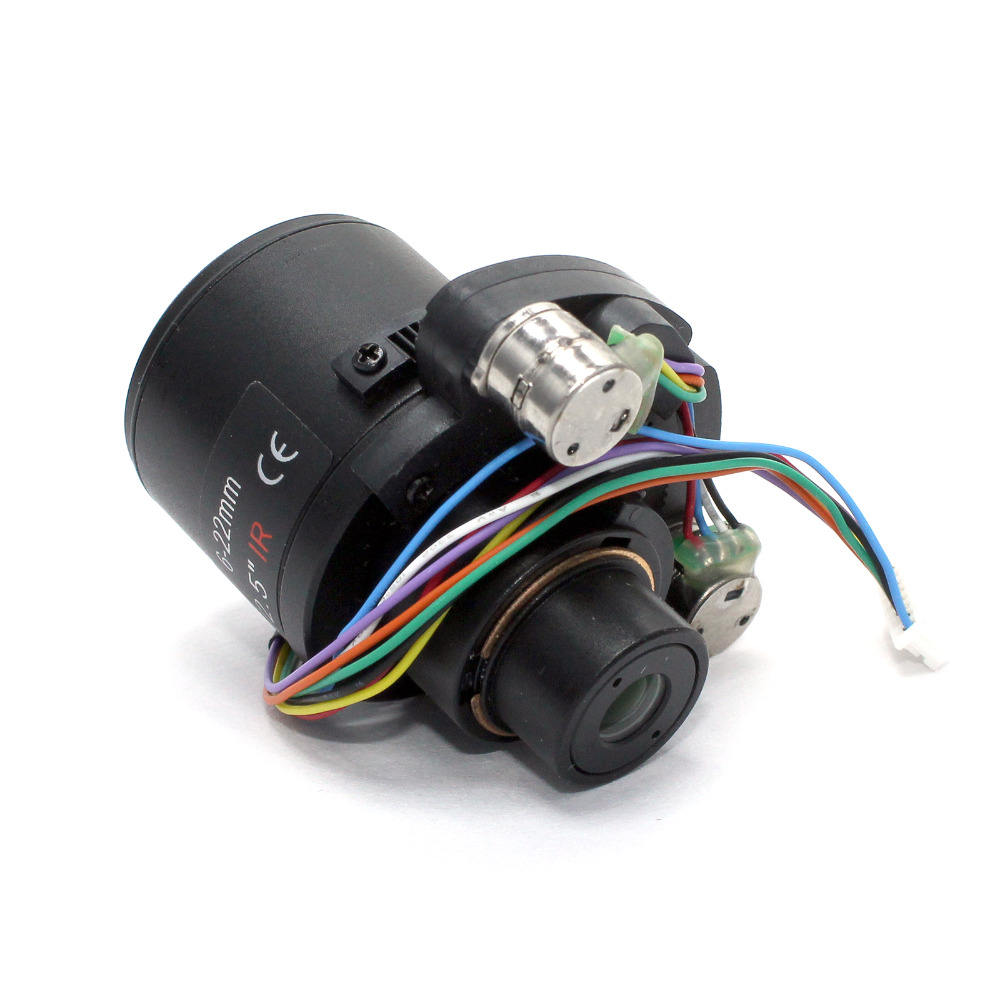

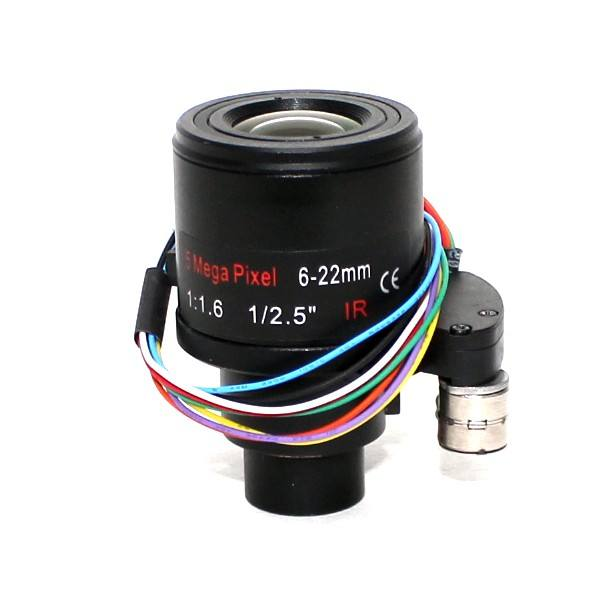

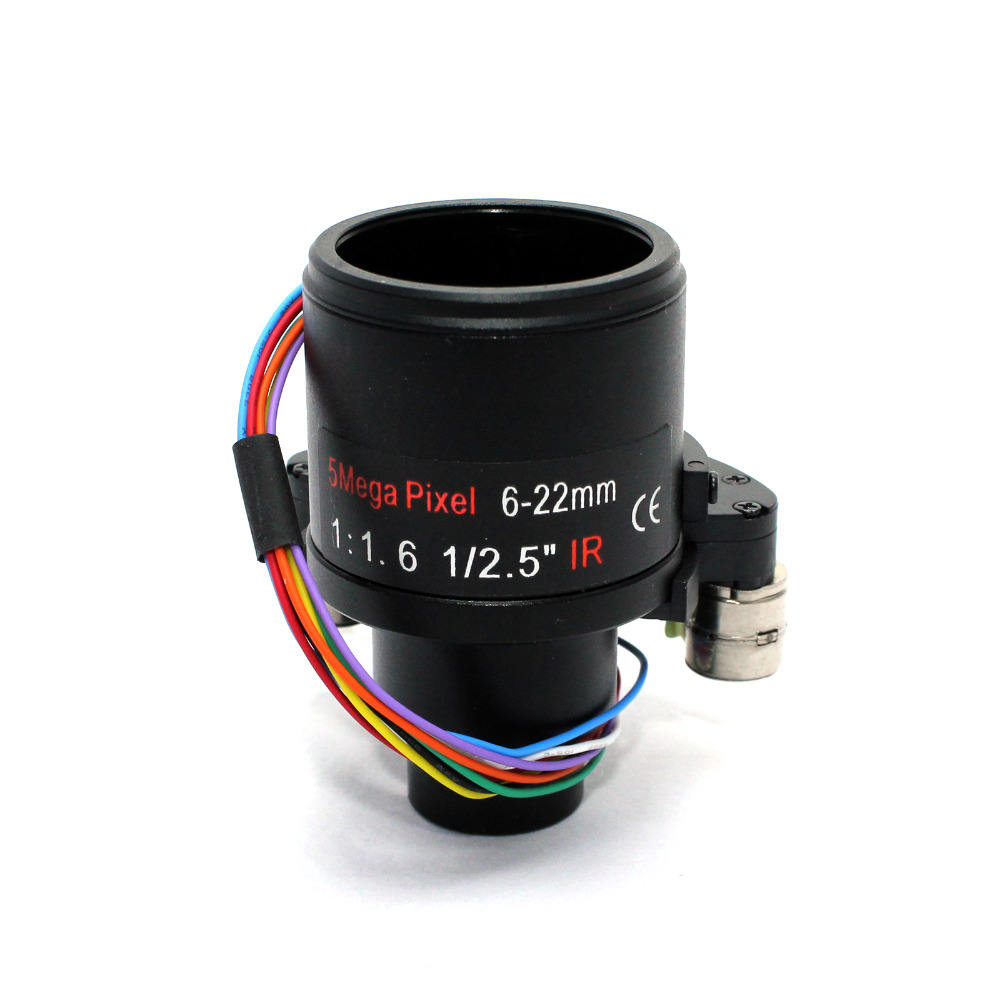

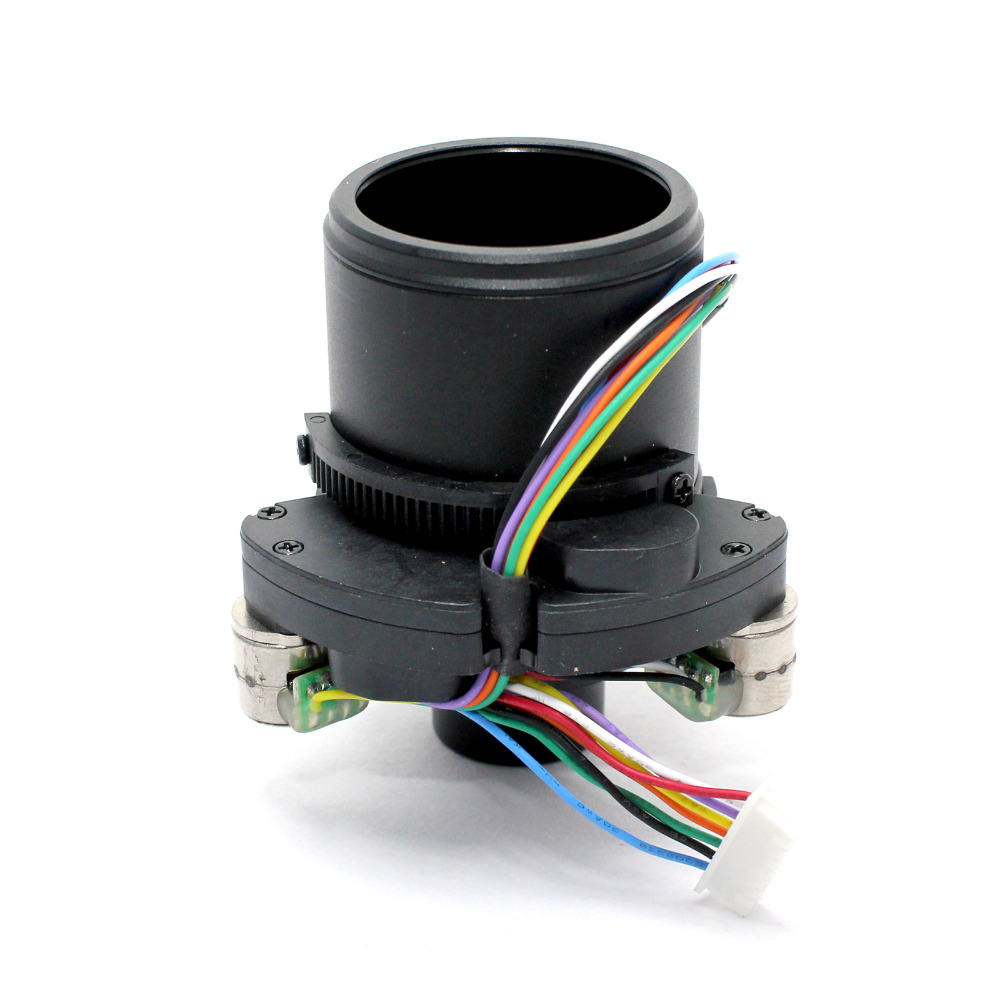

JY-0622D14Z-5MP-1/2.5F1.6
JY-0622D14Z-5MP-1/2.5F1.6
- Online customer service
- Factory guarantee
- Ontime delivery
| Resolution | 5 Megapixel | |||||||||
| Image format | 1/2.5" | |||||||||
| Focal length | 6-22mm | |||||||||
| Aperture | F1.6 | |||||||||
| Mount | D14 | |||||||||
|
（Field Angle) D×H×V(°) |
" ° |
1/2.5" | 1/3 | 1/4 | ||||||
| short focus | telephoto | short focus | telephoto | short focus | telephoto | |||||
| D | 58 | 20.4 | 46.5 | 18 | 34.5 | 12.6 | ||||
| H | 46.4 | 16.3 | 37.2 | 14.4 | 27.6 | 10.1 | ||||
| V | 34.8 | 12.2 | 27.9 | 11.4 | 22.5 | 7.6 | ||||
| Optical Distortion | -0.61~-15.6% | |||||||||
| M.O.D. | 0.3m | |||||||||
| Dimension | Φ28.4×45.55mm | |||||||||
| Flange BFL | 13.5mm | |||||||||
| Weight | 39±2g | |||||||||
| BFL | 6.4mm | |||||||||
| MBF | 6.2mm | |||||||||
| IR Correction | Yes | |||||||||
|
Operation |
Iris | Fixed | ||||||||
| Focus | DC | |||||||||
| Zoom | DC | |||||||||
| Operating temperature | -20℃～+60℃ | |||||||||
